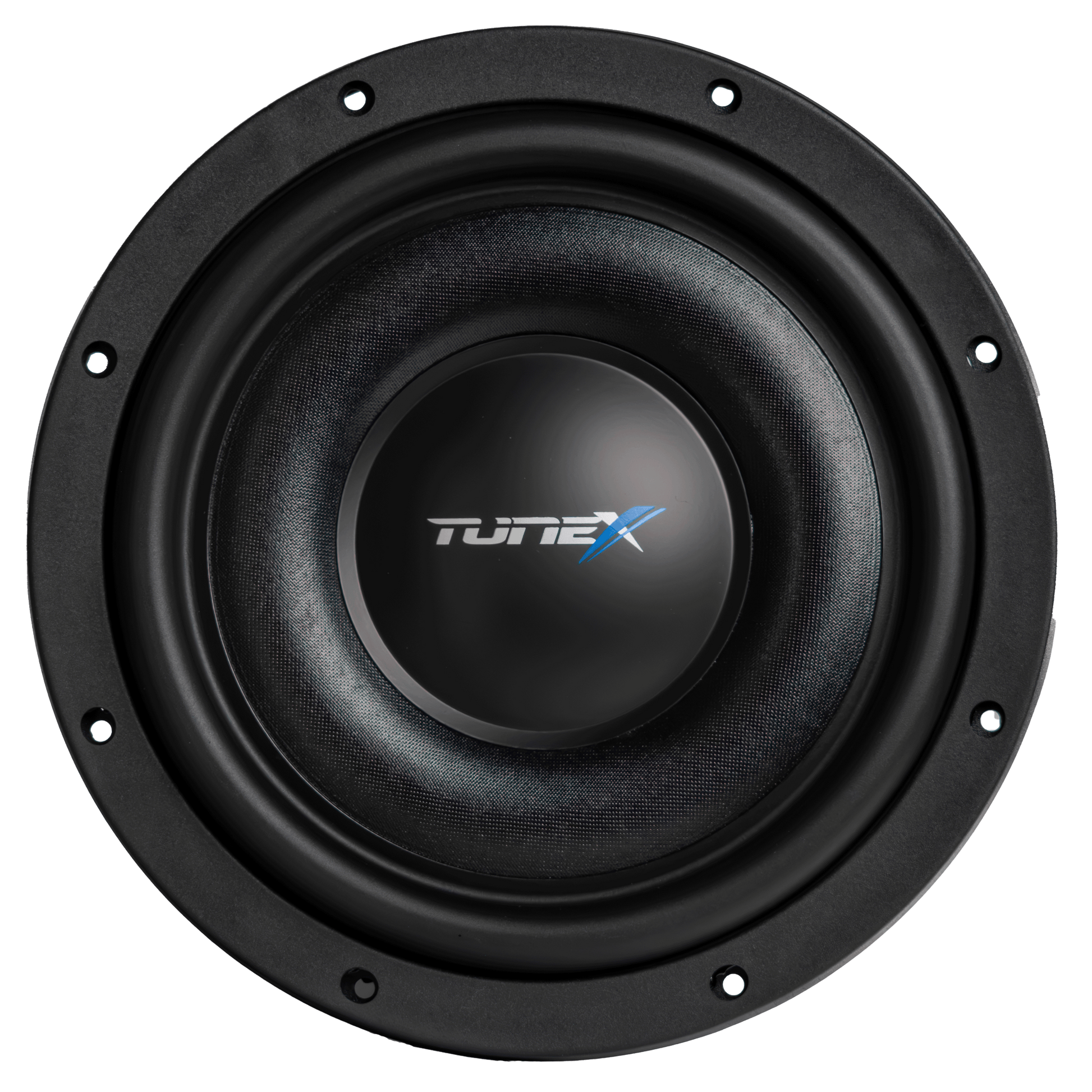

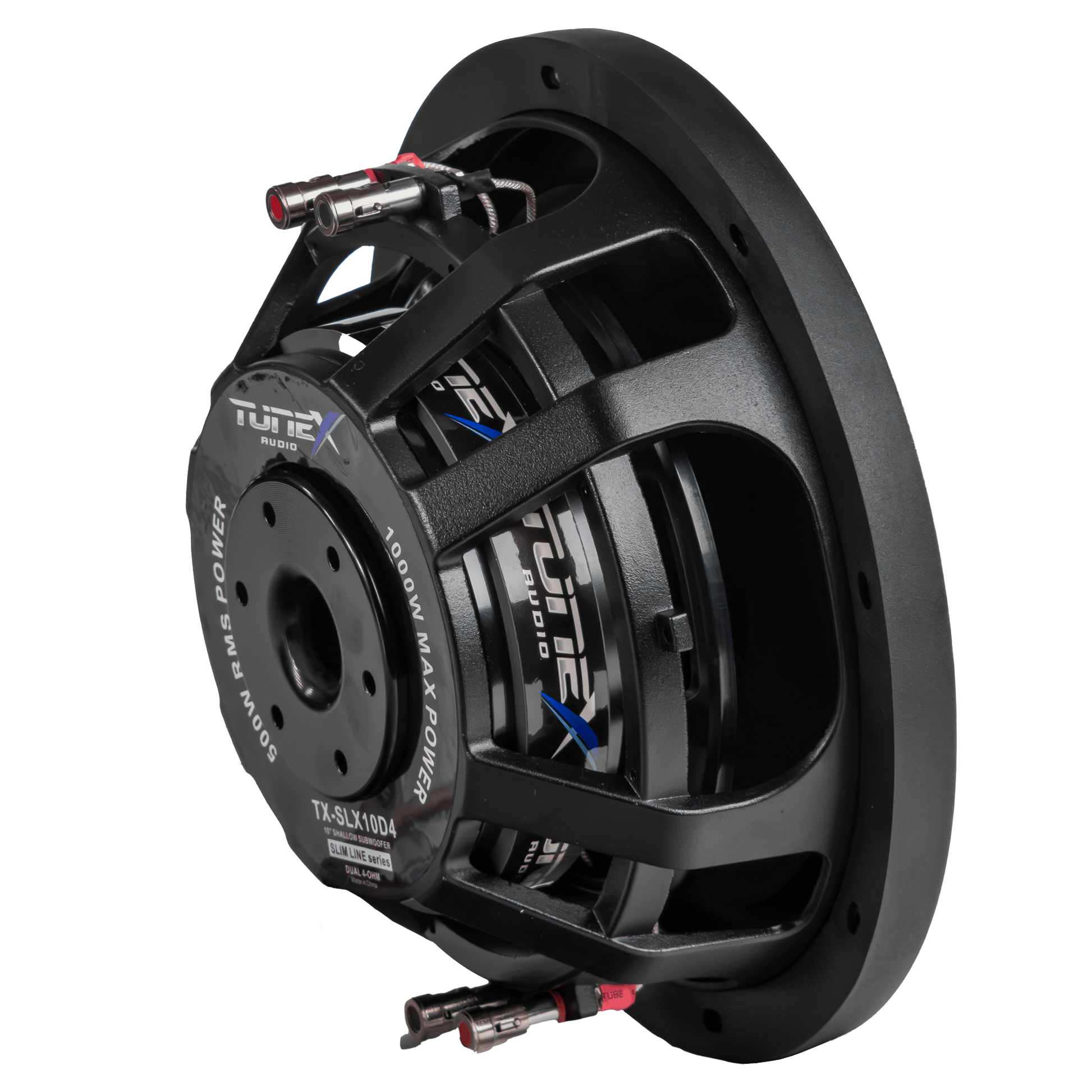

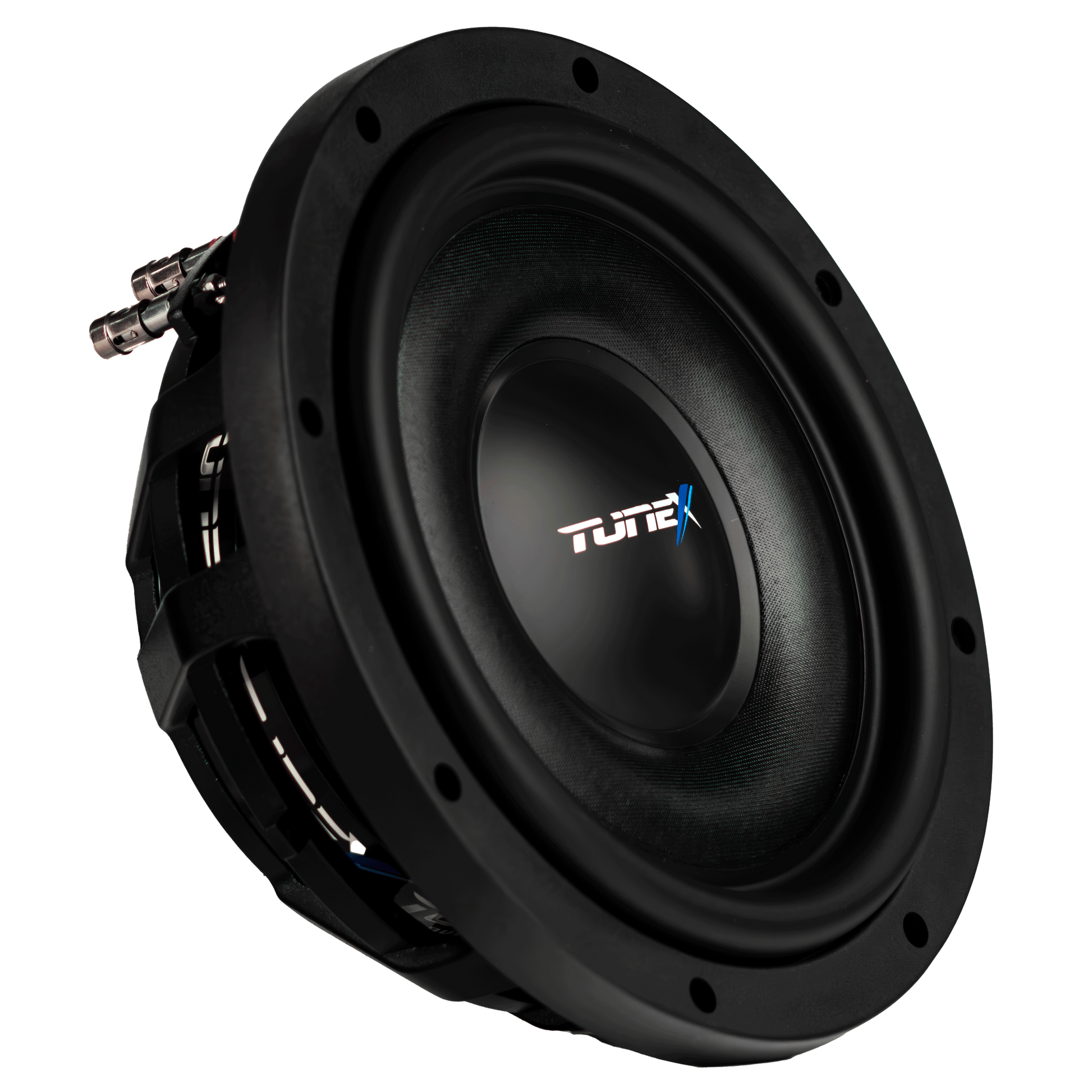

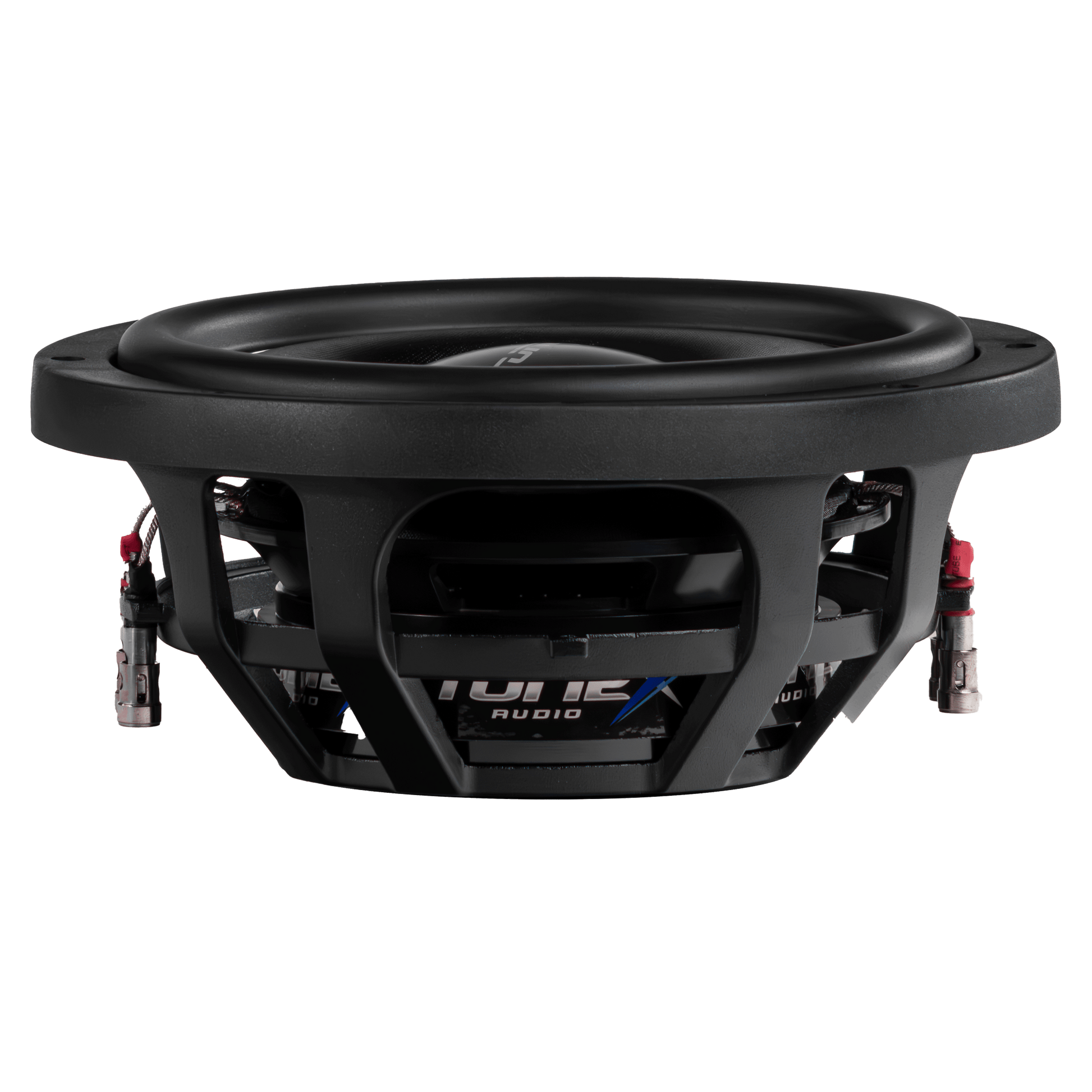

Tunex TX SLX10-D4 Slim 10" 500rms Subwoofer

SLX10D4 is Our Slim Line Subwoofer with amazing power handling. Less Space More Bass Dual Voice Coil High Flow Slim Motor Copper Wound Voice Coil Slim Profile made for Easy bass solutions in Tight Spaces 97mm Depth Ideal for Ute's Vans, 7 Seater Vehicles

TX-SLX10D4 (2 ohm, 500W) -

• Model: TX-SLX10D4
  • Impedance (Imp): 1 ohm
  • Optimal Power: 500 W
  • Voice Coil: 2.5" Copper
  • Magnet Size: 1x156x25 oz
  • Xmax: ±12.0 mm
  • Xmech: 21 mm
  • Dcr (DC resistance): 1.7 ohm
  • Fs (Resonant Frequency): 34.371 Hz
  • SD (Effective Surface Area): 34.636 msqM
  • BL (Motor Force Factor): 9.994 Tm
  • Qms (Mechanical Q Factor): 4.330
  • Qes (Electrical Q Factor): 0.554
  • Qts (Total Q Factor): 0.491
  • SPLo (Sound Pressure Level): 85.4 dB
  • Vas (Equivalent Volume): 28.250 L
  • Cms (Compliance of the Suspension): 165.355 µm/N
  • Mms (Mechanical Mass): 130.624 g
  • Mmd (Diaphragm Mass): 123.211 g
•
