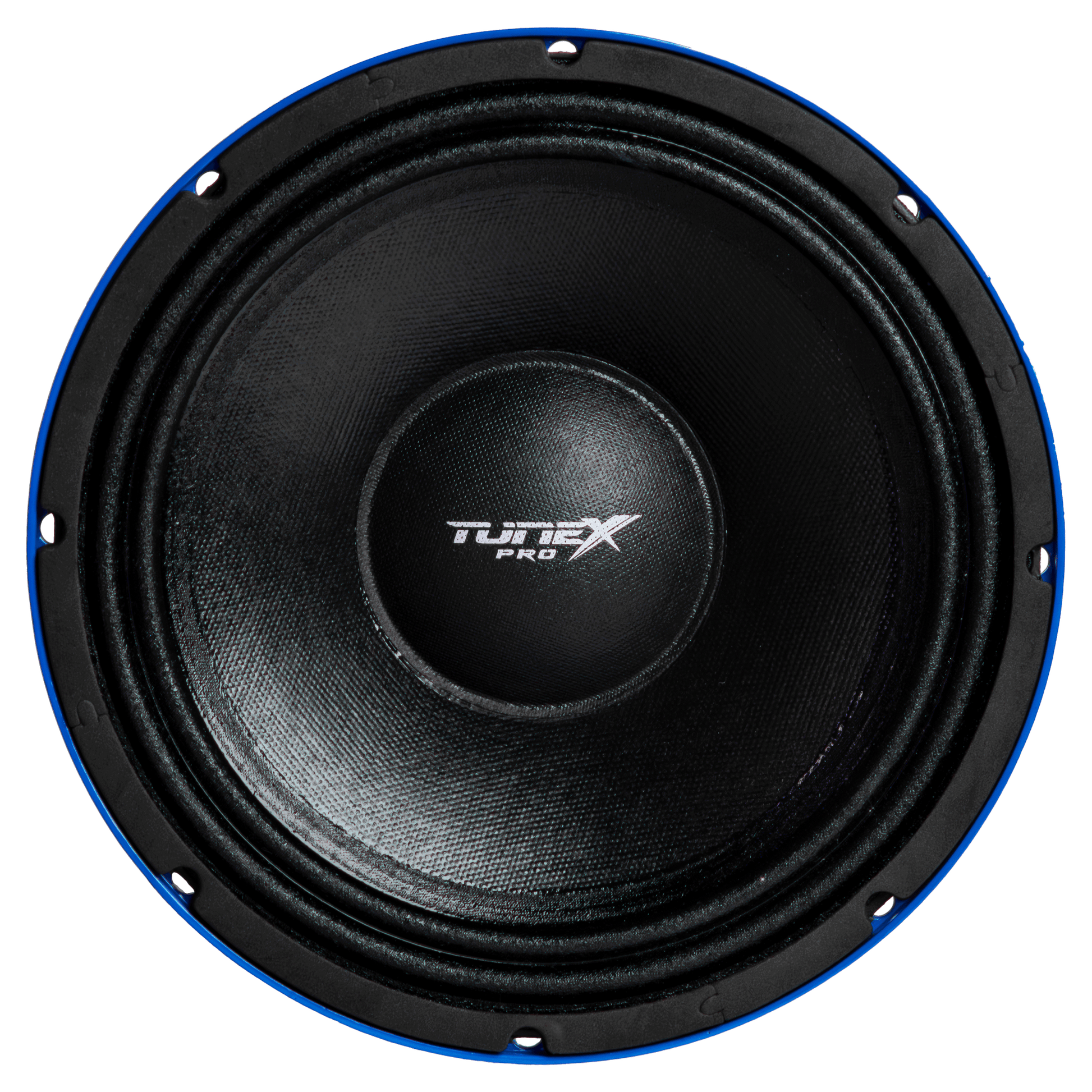

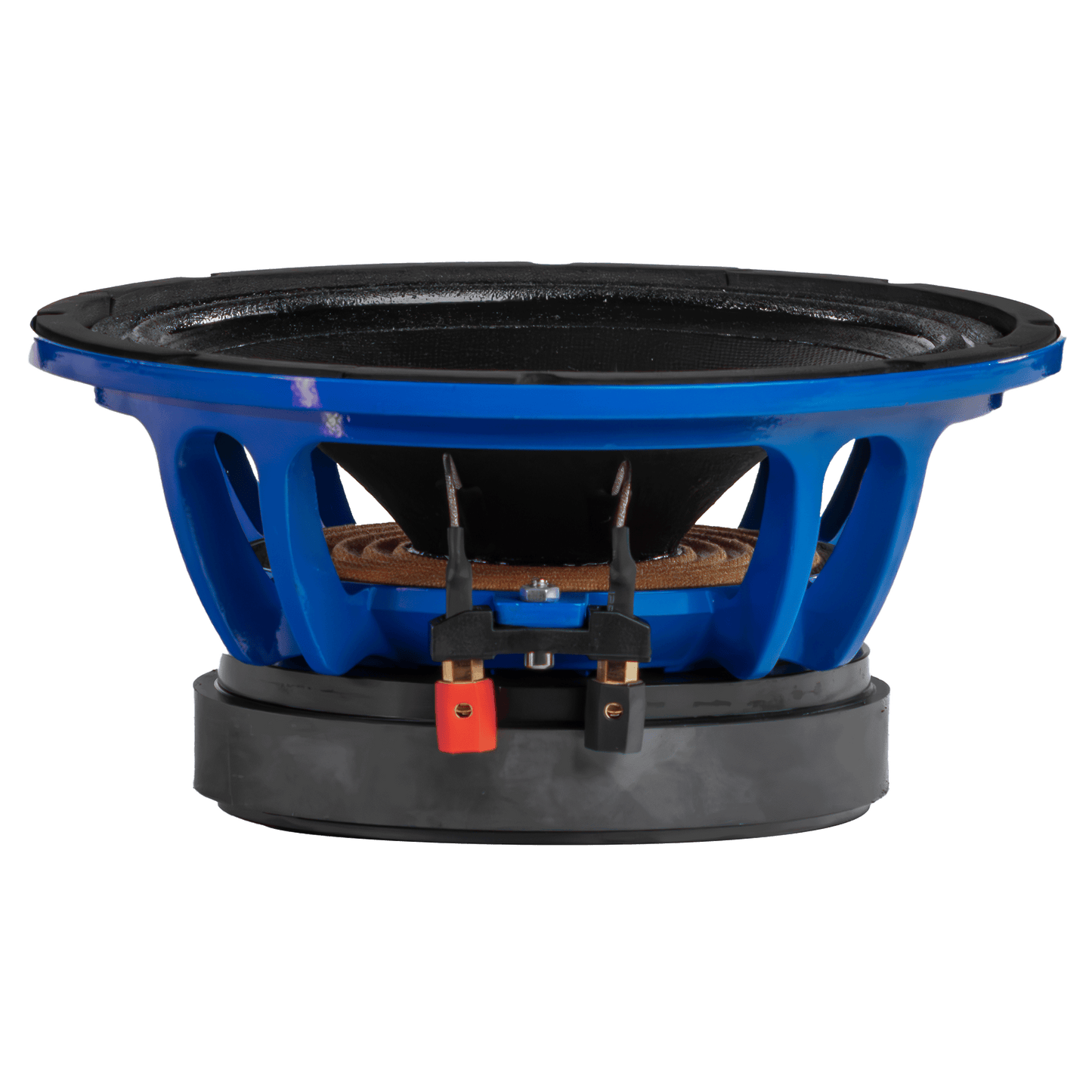

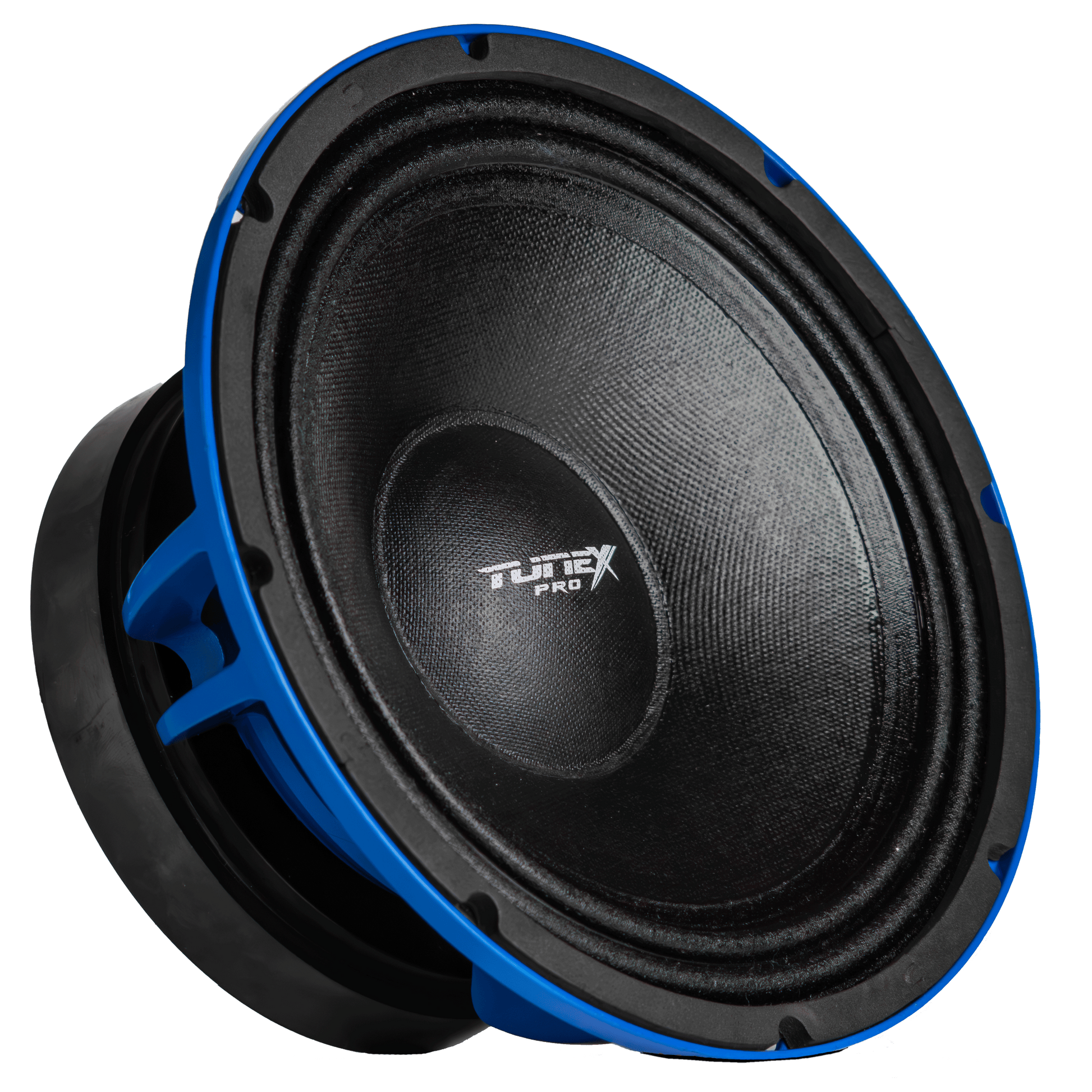

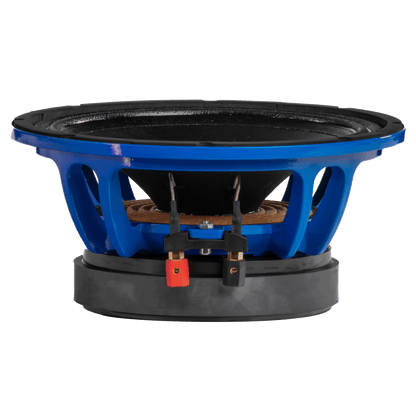

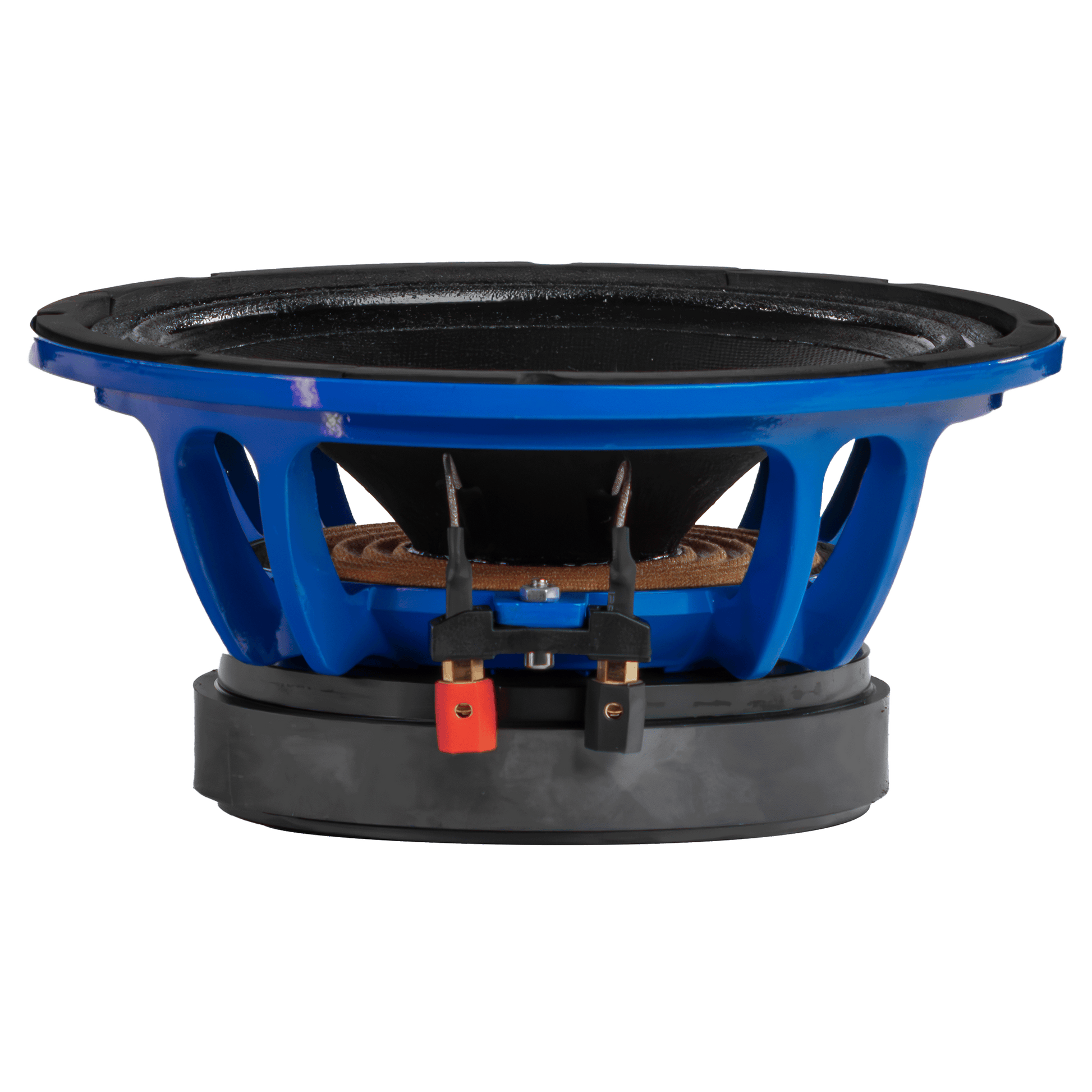

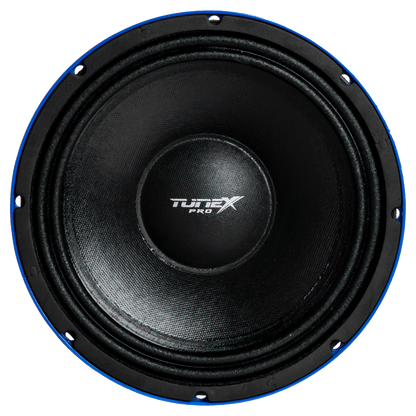

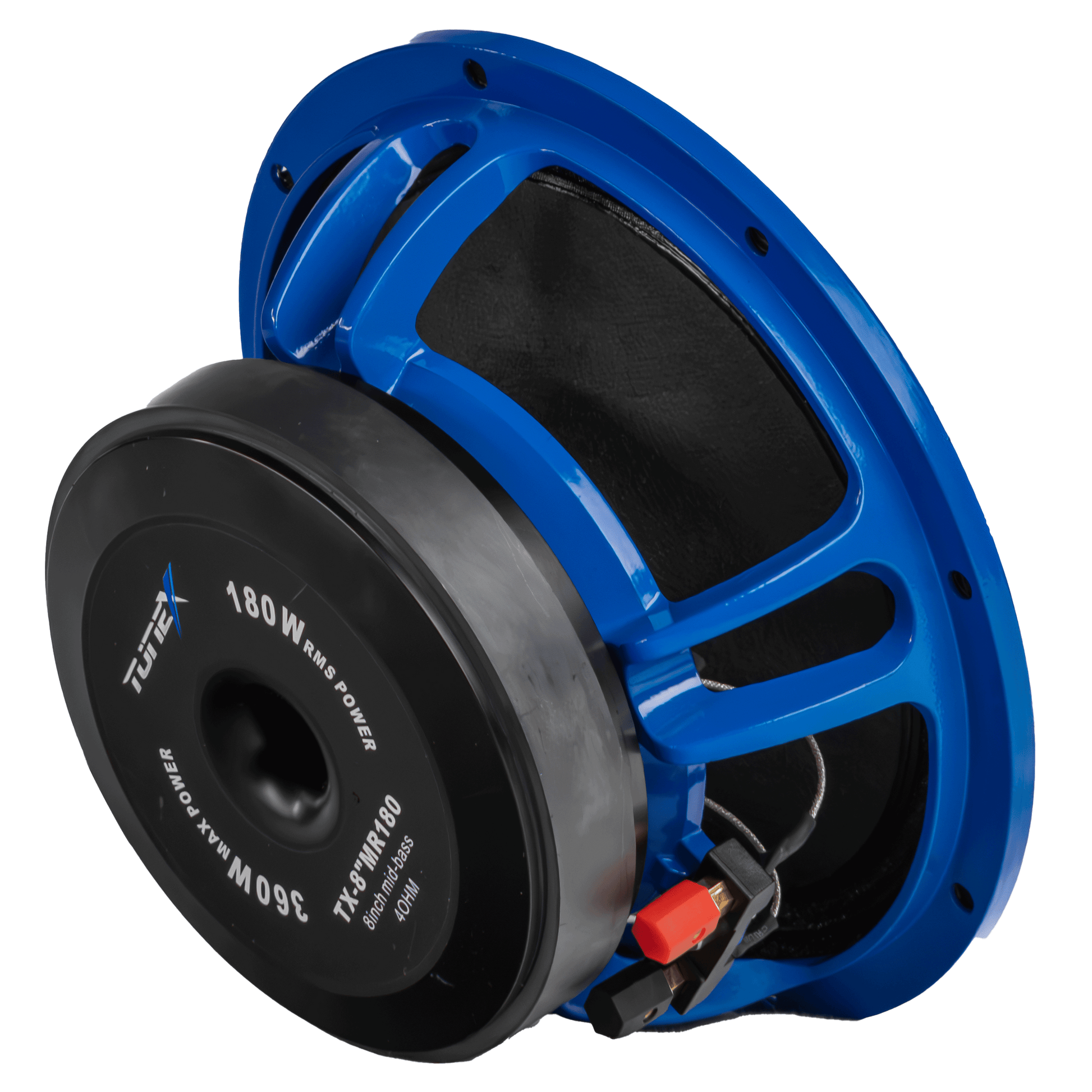

Tunex PRO 8" Mid 360Watt MR-8"180V2 (Pair)

Tunex PRO 8 Inch Mid 360Watt MR-8"180 (Pair) High Powered High-Quality Speaker Driver Aluminum Die Cast Basket

Specifications			Thiele Small Parameters
TYPE	Mid-bass		Fs	95Hz
Nominal Diameter	200 mm/8 in		Re	3.4ohm
Rated impedance	4 ohm		Qms	4.8
Nominal (AES)1	180 W		Qes	0.46
Continuous Program	360 W		Qts	0.41
Sensitivity(1w/1m)2	96.5dB		Vas	11.58L
Frequency Range3	95Hz-6000Hz		Sd	0.022 m2
Voice Coil Diameter	50 mm/2.0 in		MMS	19.5 g
Voice Coil Material	ALW in/out		BL	10.7T.M
Mounting information			Shipping   information
Overall Diameter	φ209 mm/φ8.22 in		Net Weight         (1unit)	3.3kg
Bolt Circle Diameter	φ196 mm/φ7.7 in
Mount Baffle Cut-out	φ186 mm/φ7.3 in
Depth	103 mm/4.05 in
Bolt Hole Diameter	8-6mm/8-0.24 in
