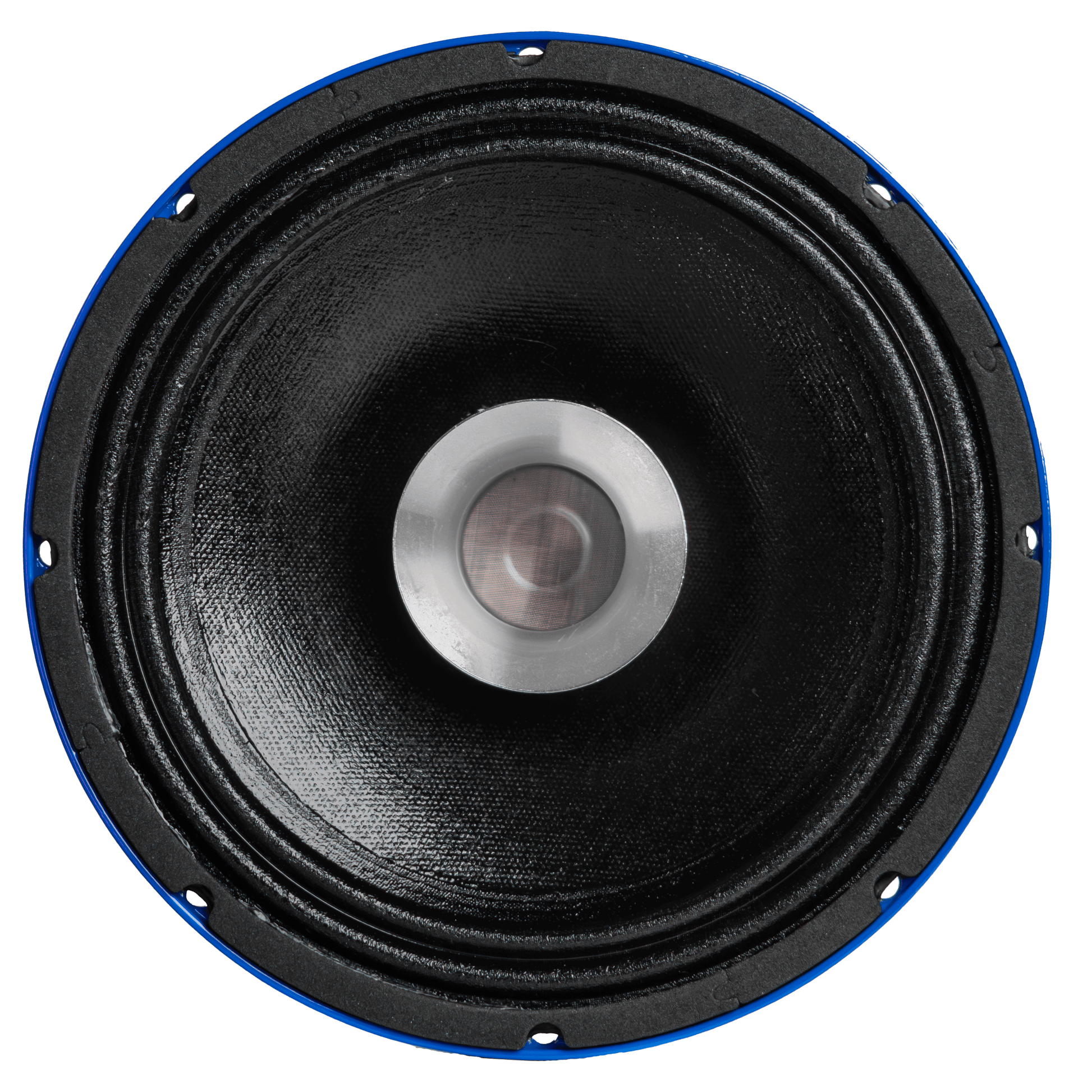

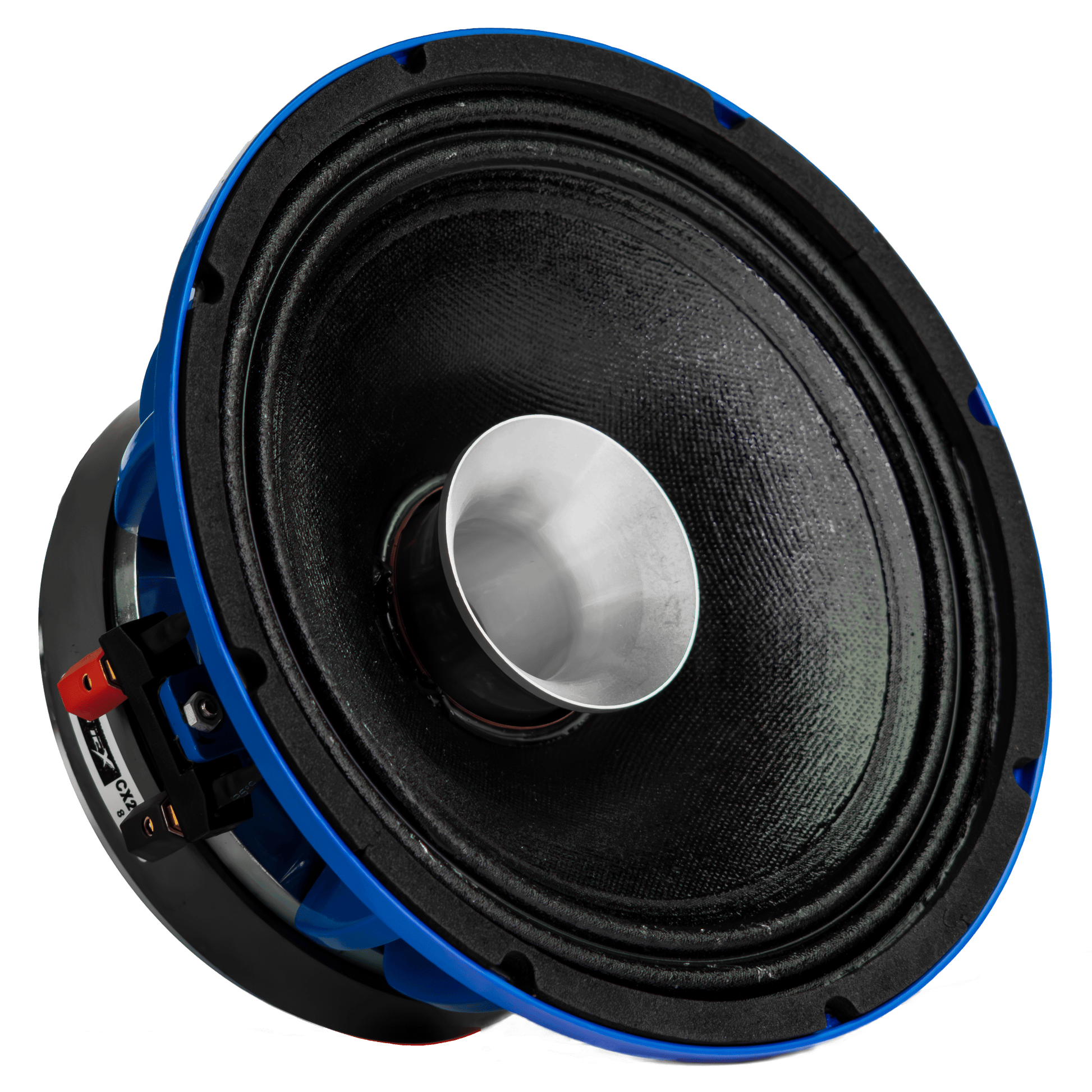

Tunex PRO 8 Inch COAX Mid 500Watt CX2508F (Pair)

Tunex PRO 8 Inch COAX Mid 500Watt CX2508F (Pair) High Powered High-Quality Speaker Driver Aluminum Die Cast Basket Horn Loaded Tweeter Built In.

Specifications			Thiele Small Parameters
TYPE	COAXIAL		Fs	68 Hz
Nominal Diameter	200 mm/8 in		Re	6 ohm
Rated impedance	8 ohm		Qms	4.8
Nominal (AES)1	250 W		Qes	0.46
Continuous Program	500 W		Qts	0.42
Sensitivity(1w/1m)2	94 dB		Vas	18.53 L
Frequency Range3	62Hz-5000Hz		Sd	0.0227 m2
Voice Coil Diameter	50 mm/2.0 in		MMS	24.8g
Voice Coil Material	Copper out		BL	11.3T.M
Mounting information
Overall Diameter	φ235/205 mm/φ9.3/8.1 in		Net Weight         ( 1 unit)	3.6kg
Bolt Circle Diameter	φ217 mm/φ8.5 in
Mount Baffle Cut-out	φ178 mm/φ7.0 in
Depth	126mm/4.96 in
Bolt Hole Diameter	4-5.5mm/4-0.22 in
HF UNIT
Nominal (AES)	40 W
Sensitivity(1w/1m)	105 dB
Voice Coil Diameter	36 mm/1.4 in
Voice Coil Material	CCAR
