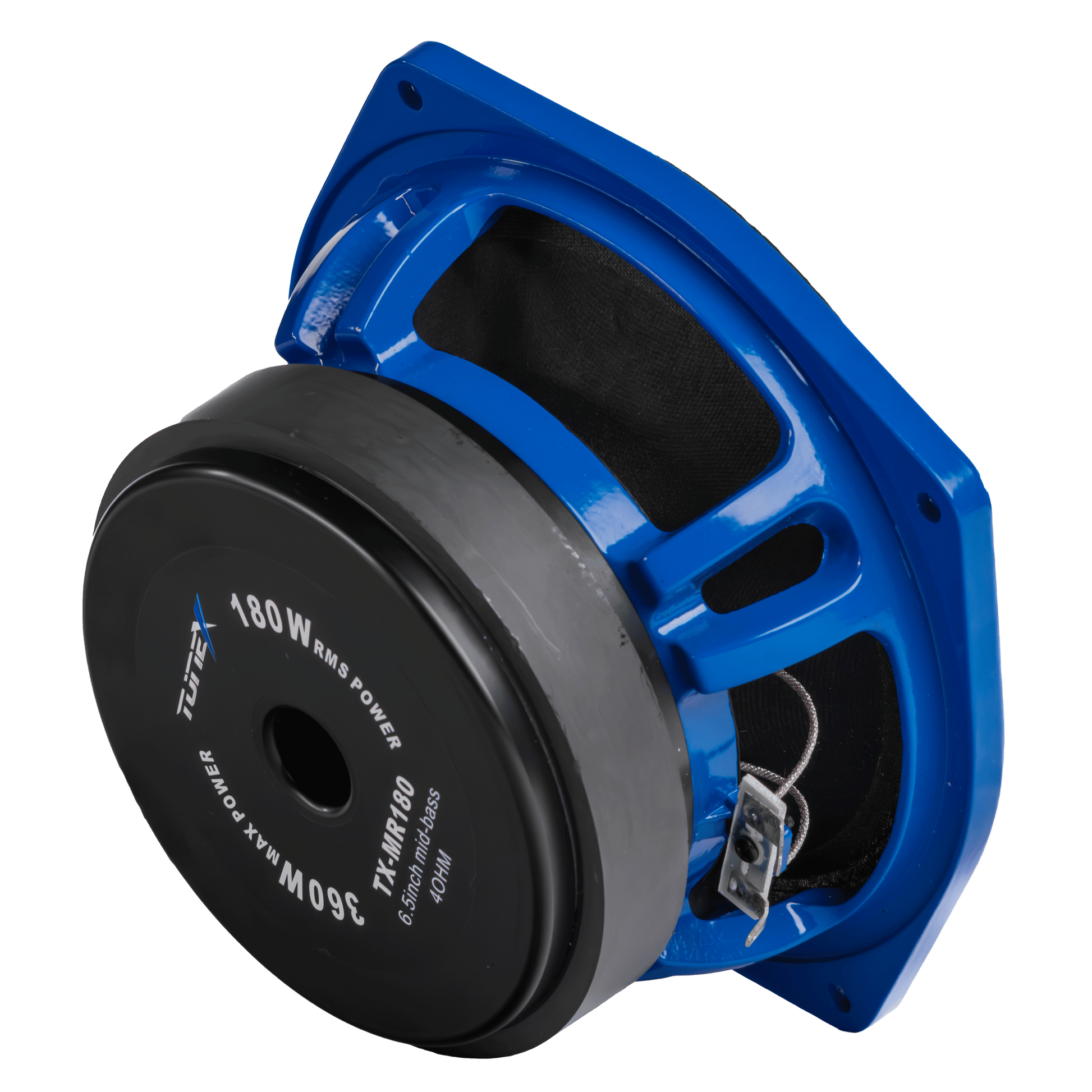

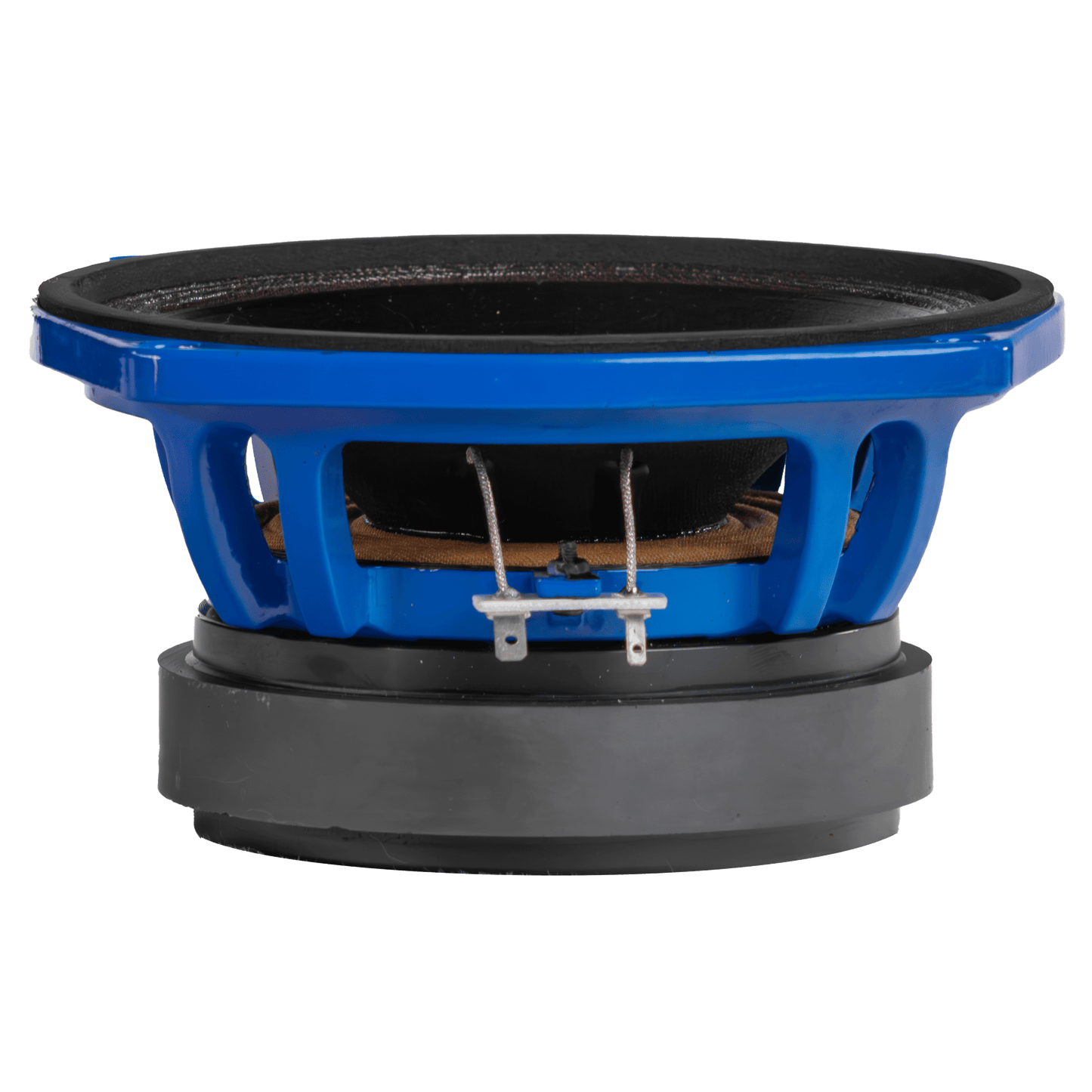

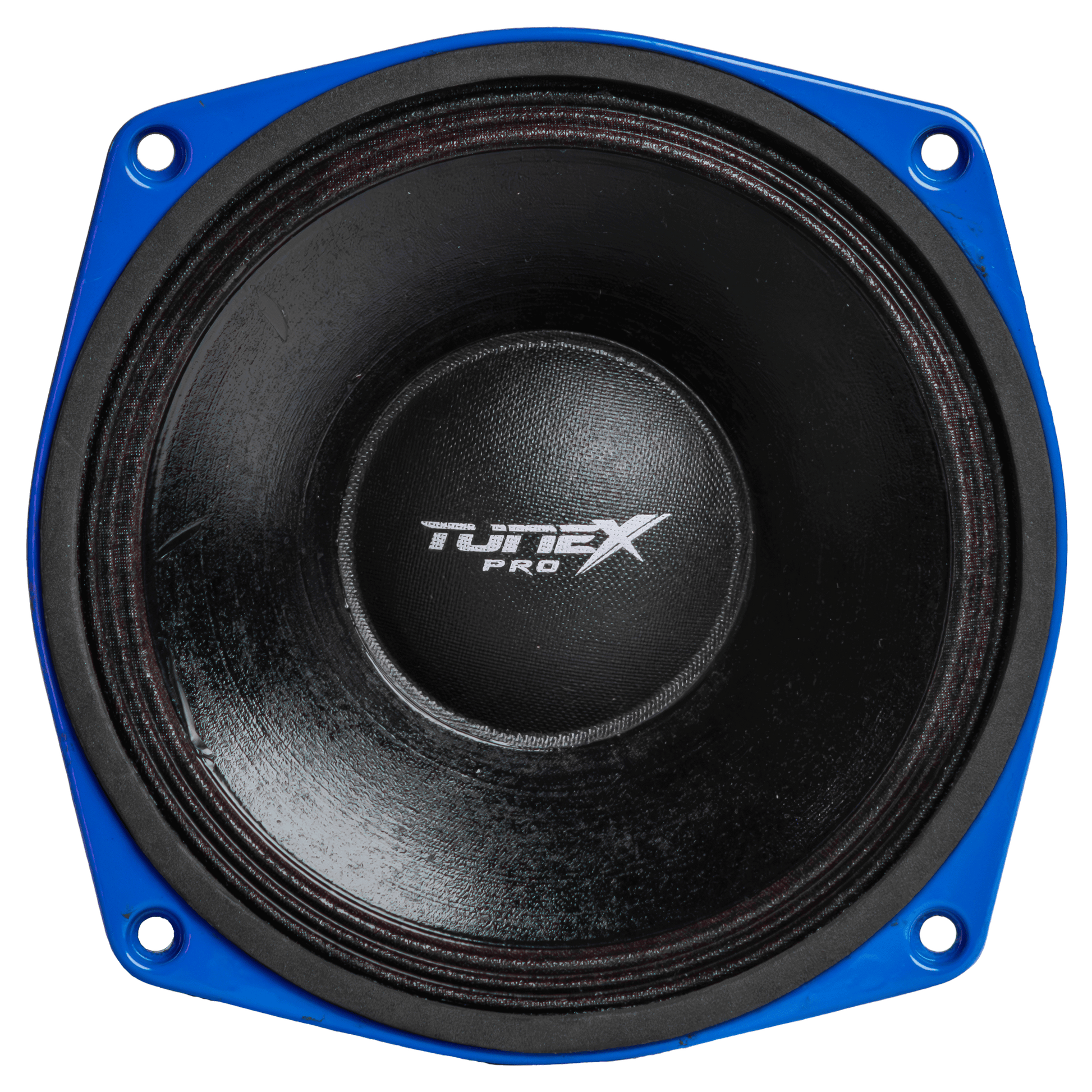

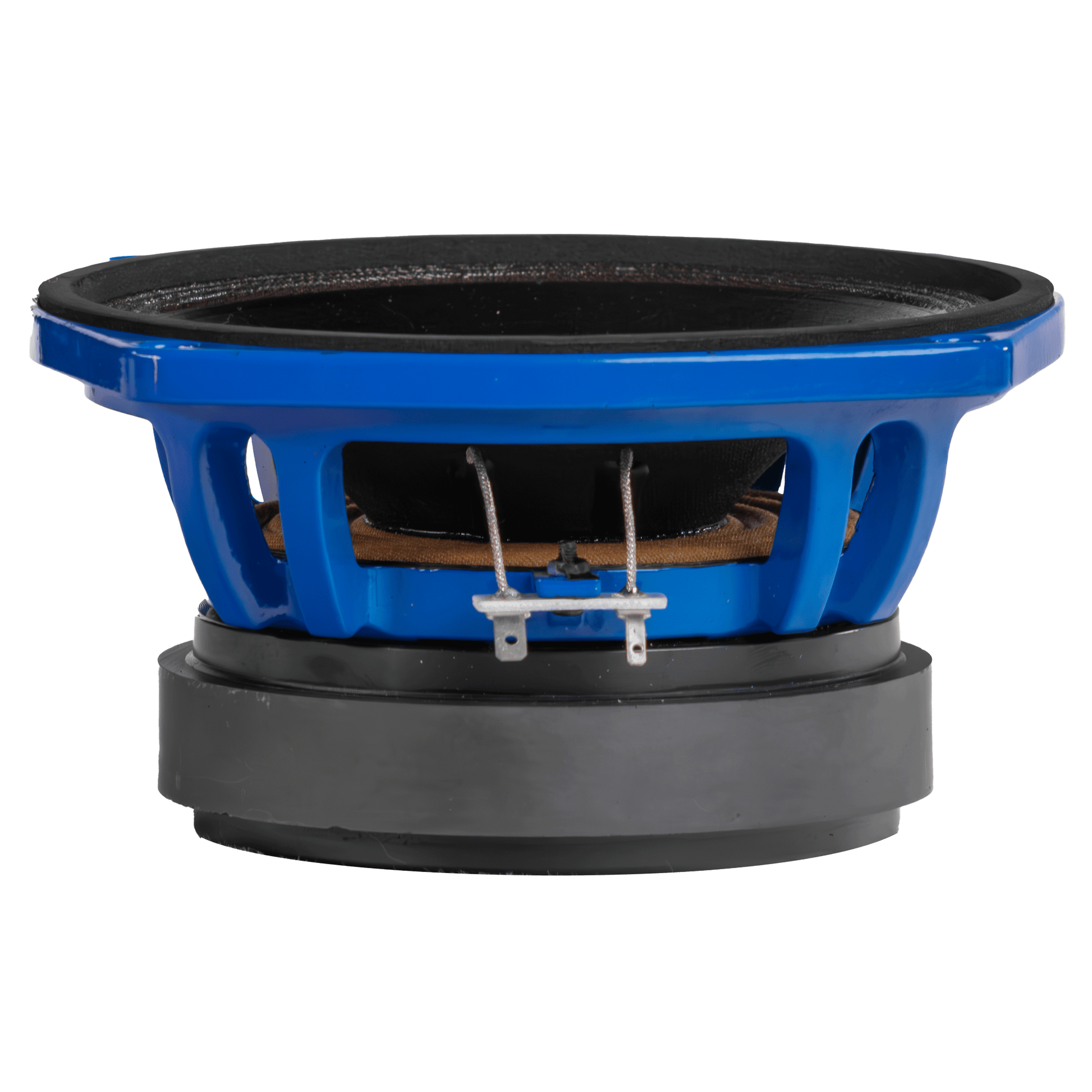

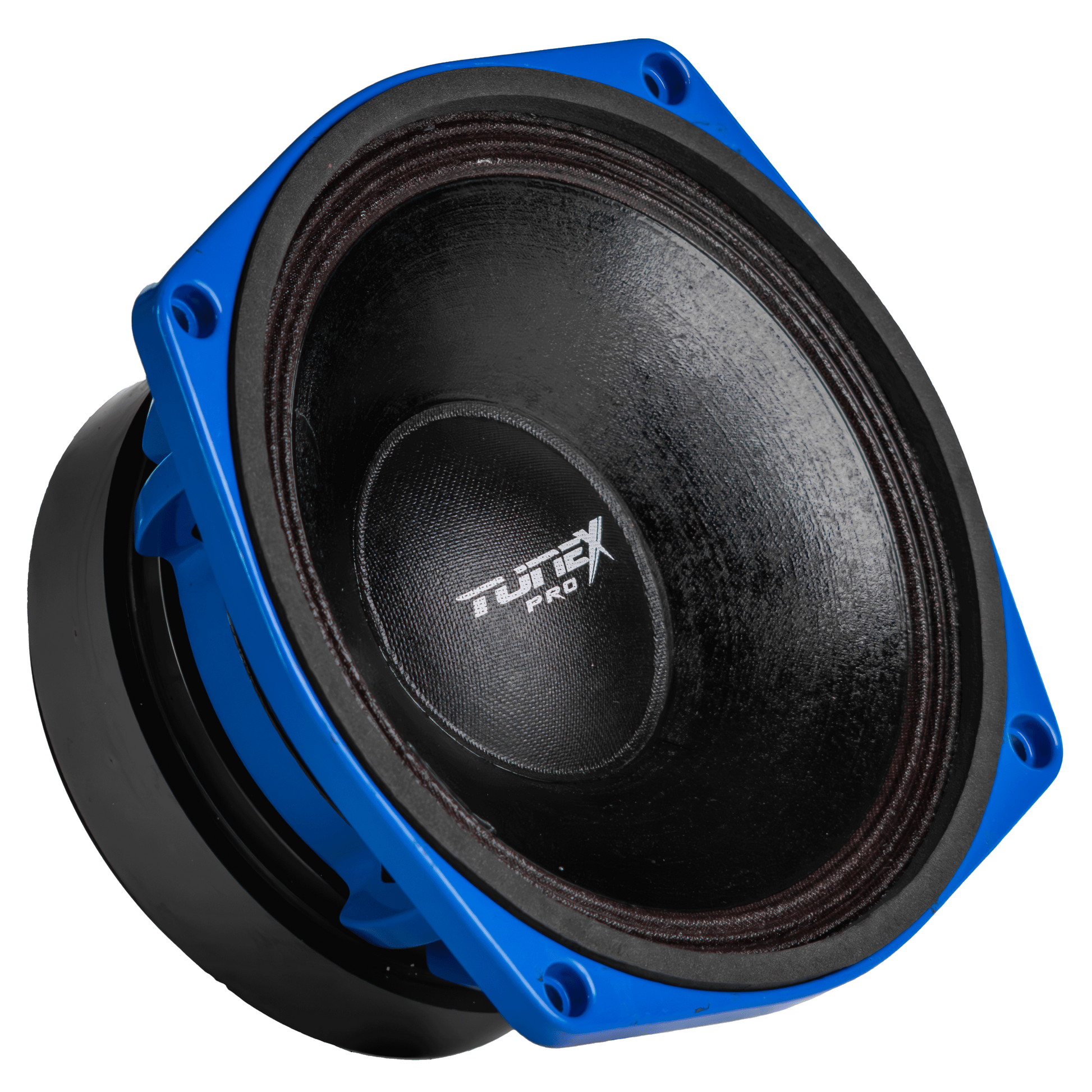

Tunex PRO 6" Mid 360Watt MR-180V2 (Pair)

Tunex PRO 6 Inch Mid 360Watt MR-180 VERSION 2(Pair) High Powered High-Quality Speaker Driver Aluminum Die Cast Basket

Specifications			Thiele Small Parameters
TYPE	Mid-bass		Fs	132 Hz
Nominal Diameter	165 mm/ 6.5 in		Re	3.4 ohm
Rated impedance	4 ohm		Qms	4.50
Nominal (AES)	180 W		Qes	0.58
Continuous Program	360 W		Qts	0.51

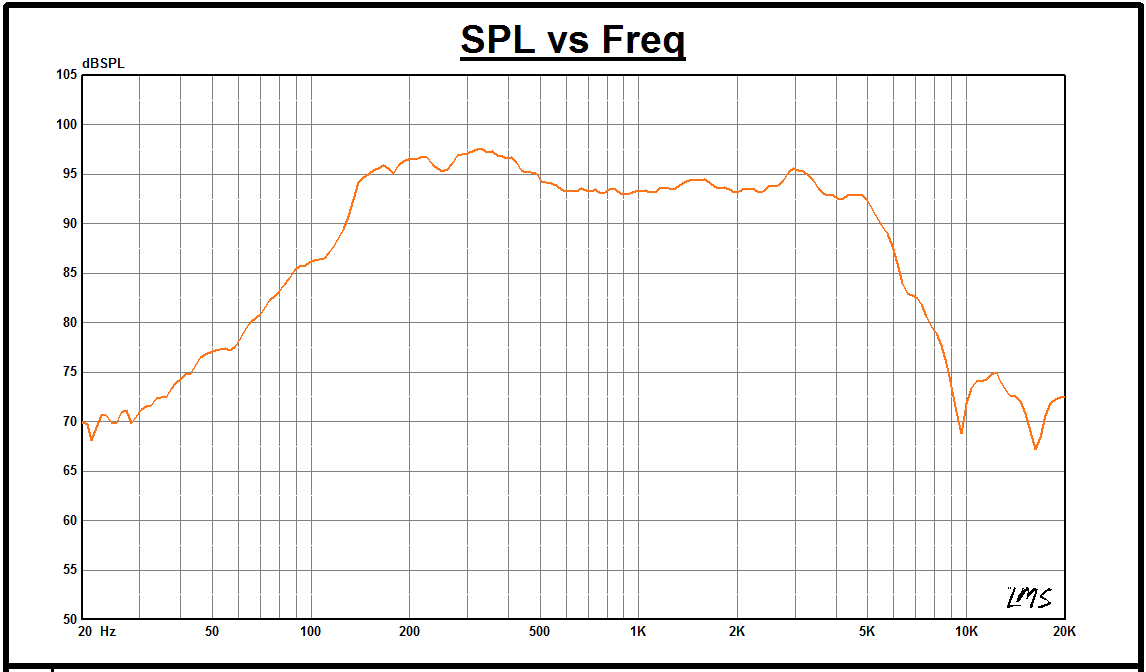

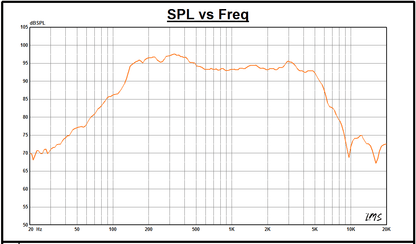

Sensitivity(1w/1m)	93 dB		Vas	2.63
Frequency Range	132-5000Hz		Sd	0.0145m2
Voice Coil Diameter	50 mm/2.0 in		Mms	16.63 g
Voice Coil Material	Copper in./out		BL	9.0 T.M
Mounting lnformation			Shipping   information
Overall Diameter	φ187 mm/φ7.36 in		Net Weight         ( 1 unit)	2.5 kg
Bolt Circle Diameter	φ172 mm/φ6.8 in
Mount Baffle Cut-out	φ147 mm/φ5.8 in
Depth	84mm/3.3 in
Bolt Hole Diameter	4-φ5.5mm/ 4-φ0.22 in
