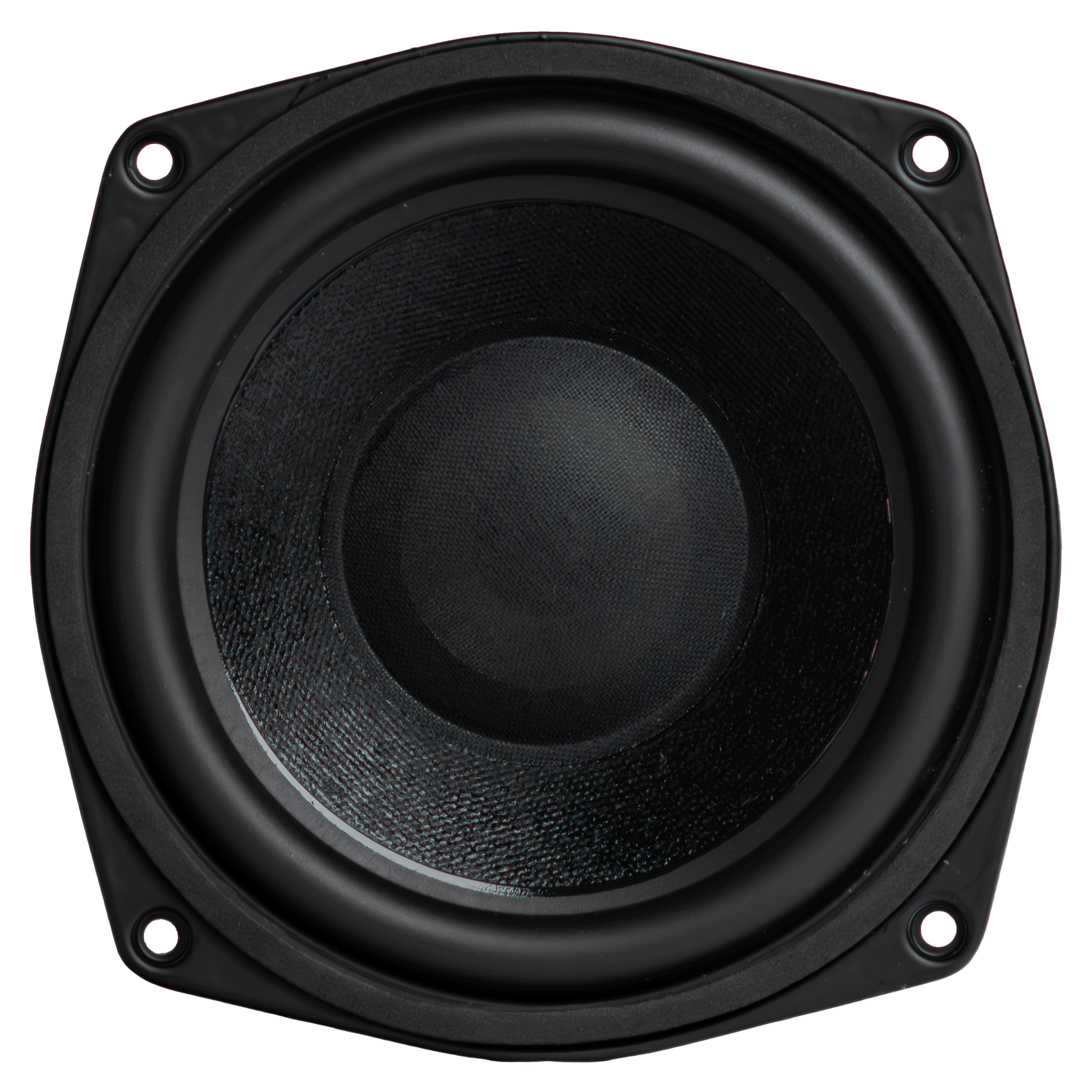

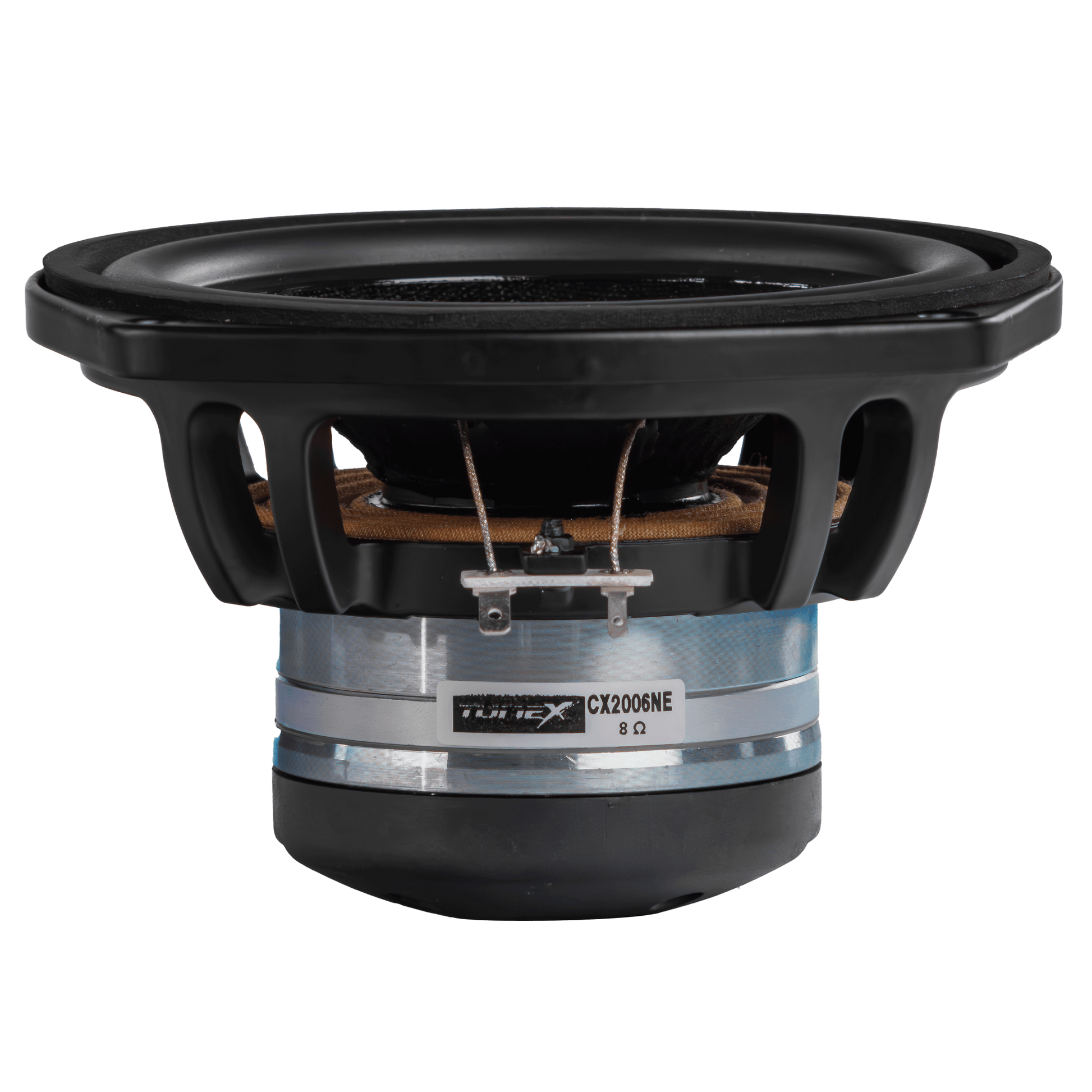

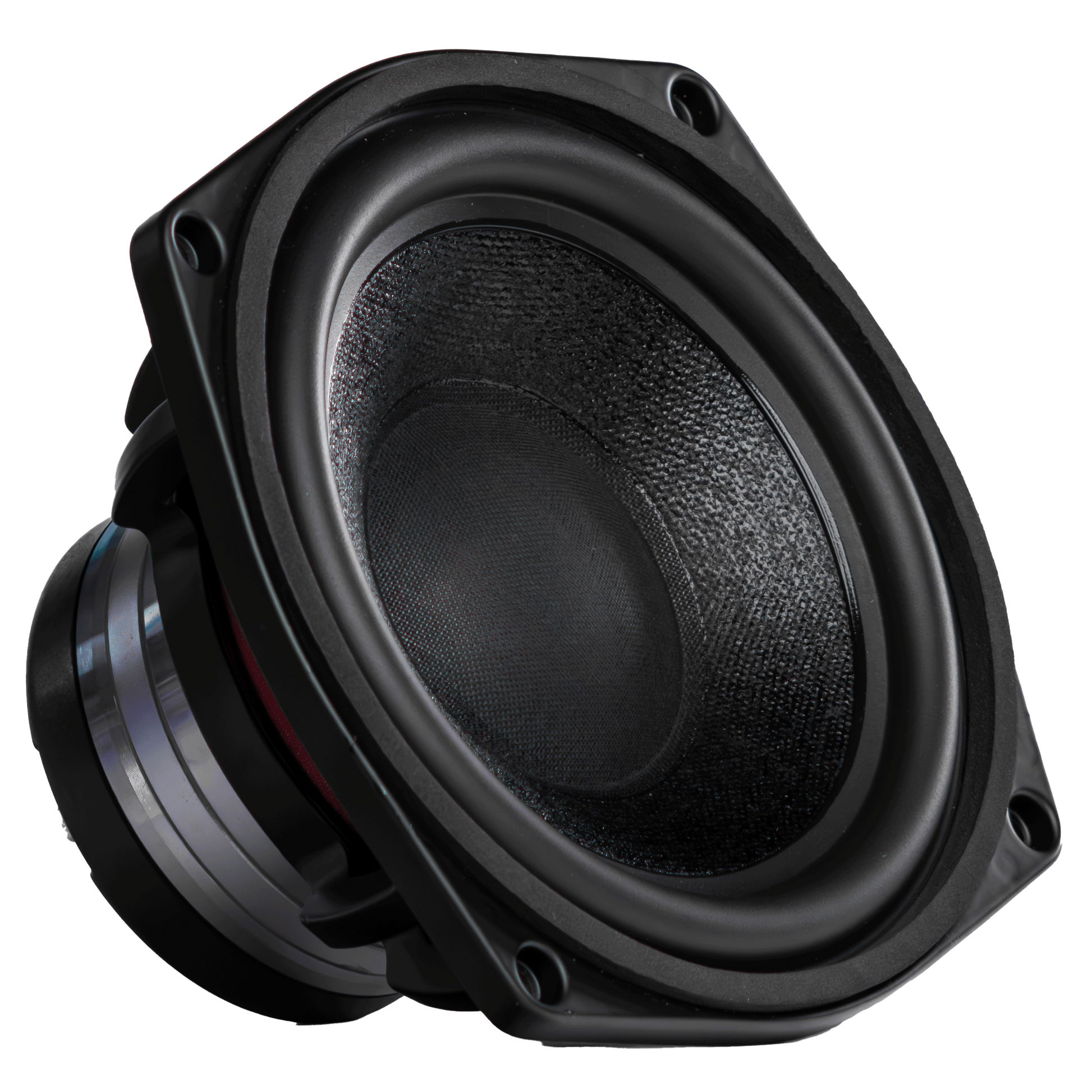

Tunex PRO 6.5" COAX Mid 400Watt CX2006NE (Pair)

Tunex PRO 6 Inch COAX Mid 400Watt CX2006NEO(Pair) High-Powered Neodymium Magnet Speaker Driver Aluminum Die Cast Basket Horn Loaded Tweeter Built In. Awesome for Motorcycles and Loud Speaker applications with tight spaces. Voice Coil Protection Mesh Dustcap

Specifications			Thiele Small Parameters
TYPE	COAXIAL		Fs	65 Hz
Nominal Diameter	165 mm/ 6.5 in		Re	6.0 ohm
Rated impedance	8 ohm		Qms	5.03
Nominal (AES)	200 W		Qes	0.49
Continuous Program	400 W		Qts	0.45
Sensitivity(1w/1m)	91dB		Vas	8.6L
Frequency Range	65Hz-19000Hz		Sd	0.0145 m2
Voice Coil Diameter	50 mm/2.0 in		Mms	20.5g
Voice Coil Material	Copper out/in		BL	10.5 T.M
HF UNIT
Nominal (AES)	40 W
Sensitivity(1w/1m)	105 dB
Voice Coil Diameter	36 mm/1.4 in
Voice Coil Material	CCAR
Mounting lnformation			Shipping   lnformation
Overall Diameter	φ187/165 mm/φ7.36 /6.5in		Net Weight         ( 1 unit)	1.65 kg
Bolt Circle Diameter	φ172 mm/φ6.8 in
Mount Baffle Cut-out	φ147 mm/φ5.8 in
Depth	106 mm/4.17 in
Bolt Hole Diameter	4-φ5.5mm/ 4-φ0.22 in
