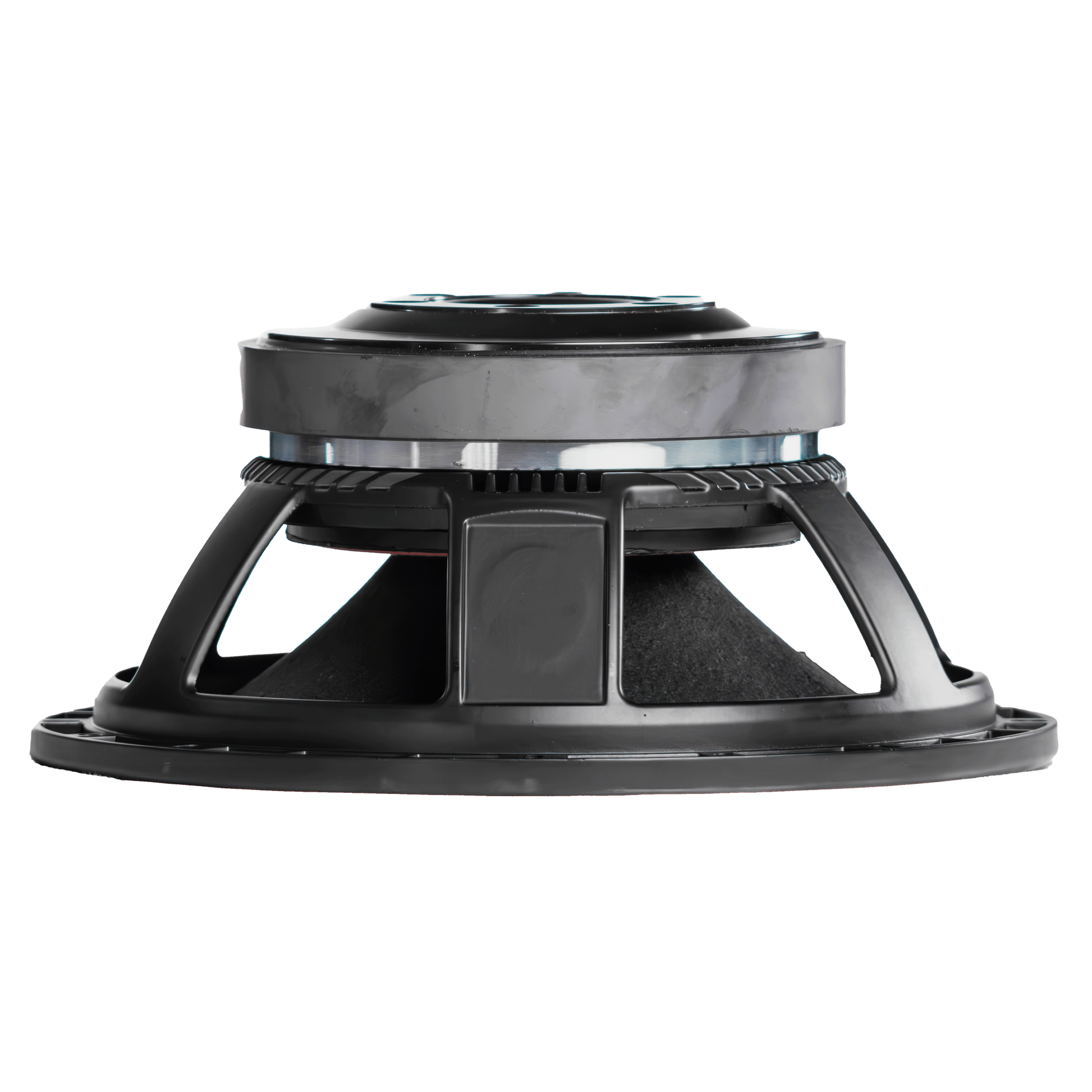

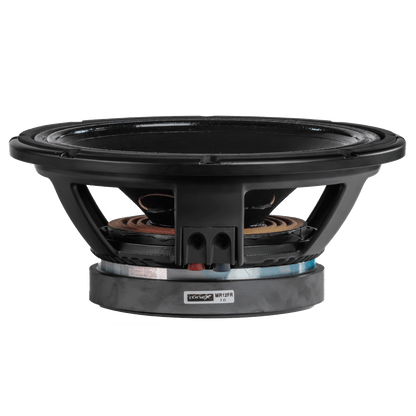

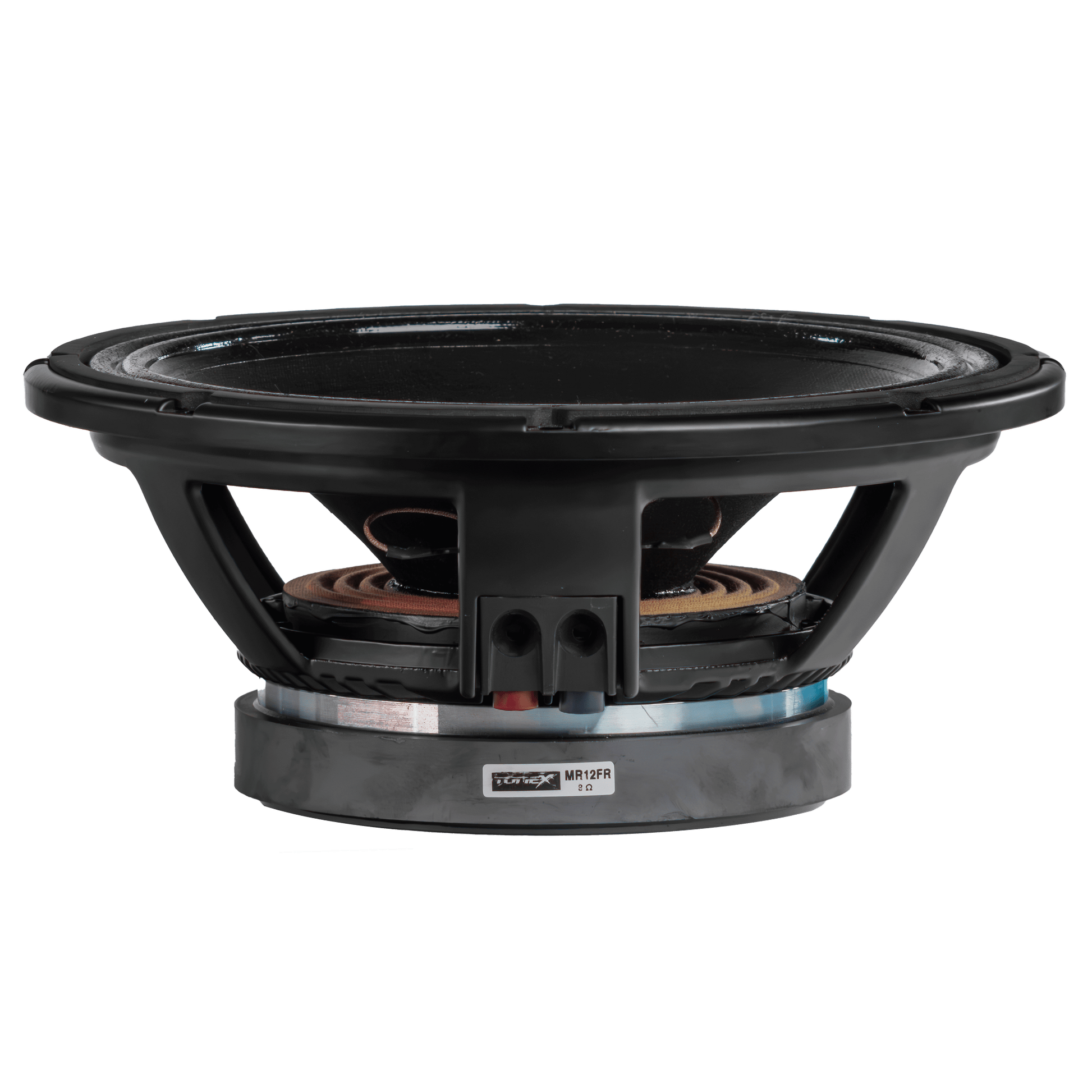

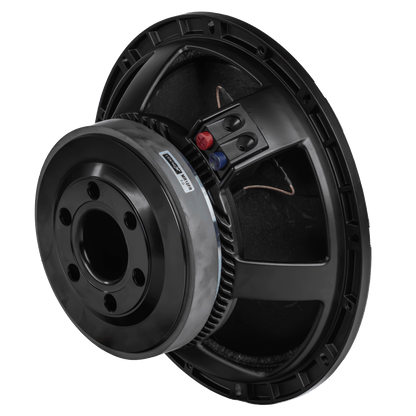

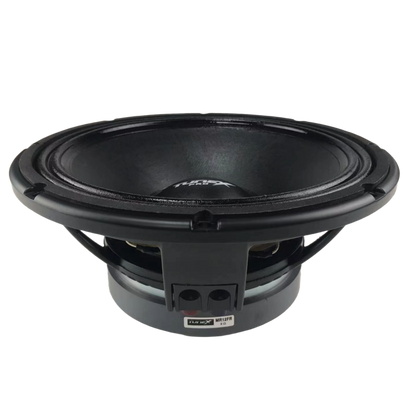

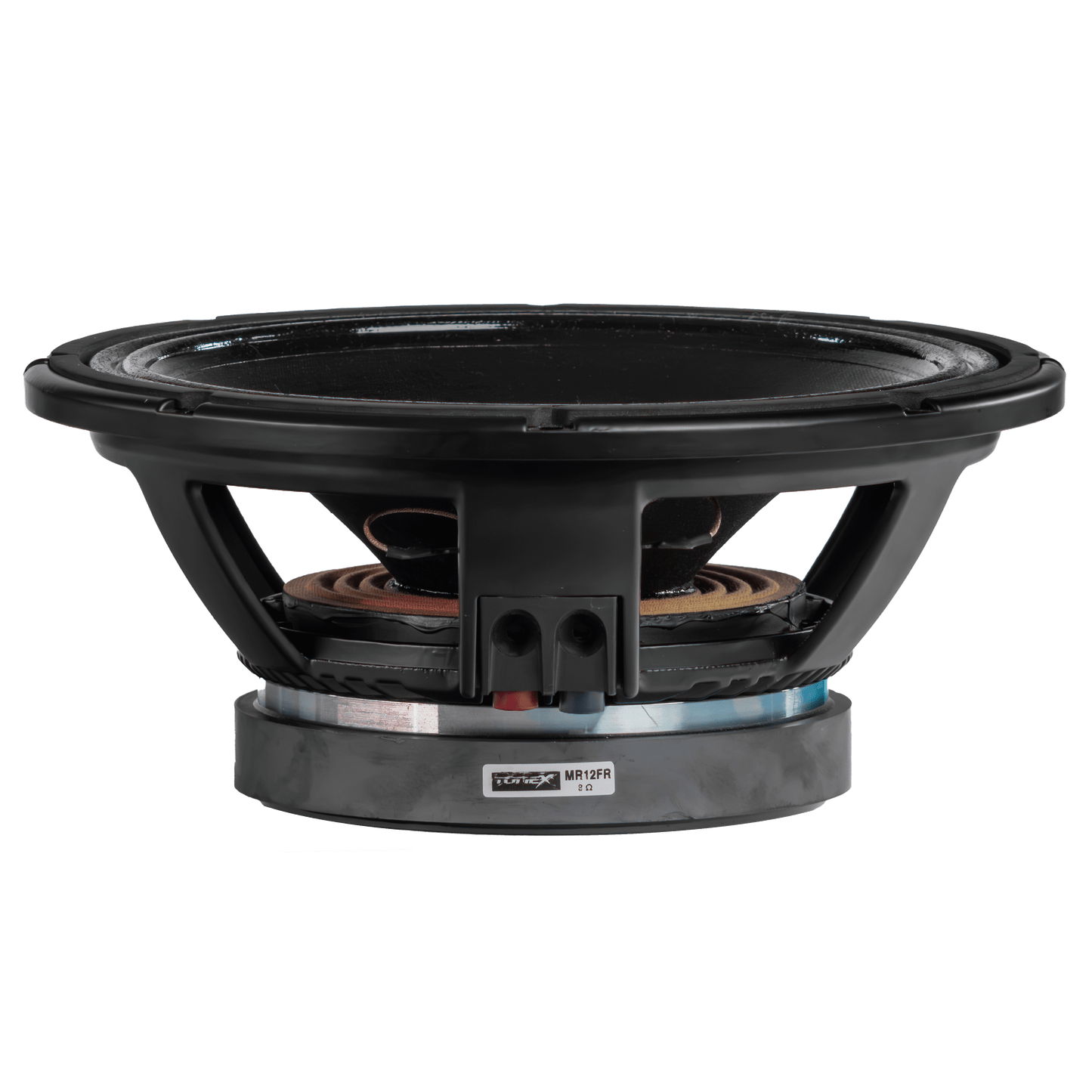

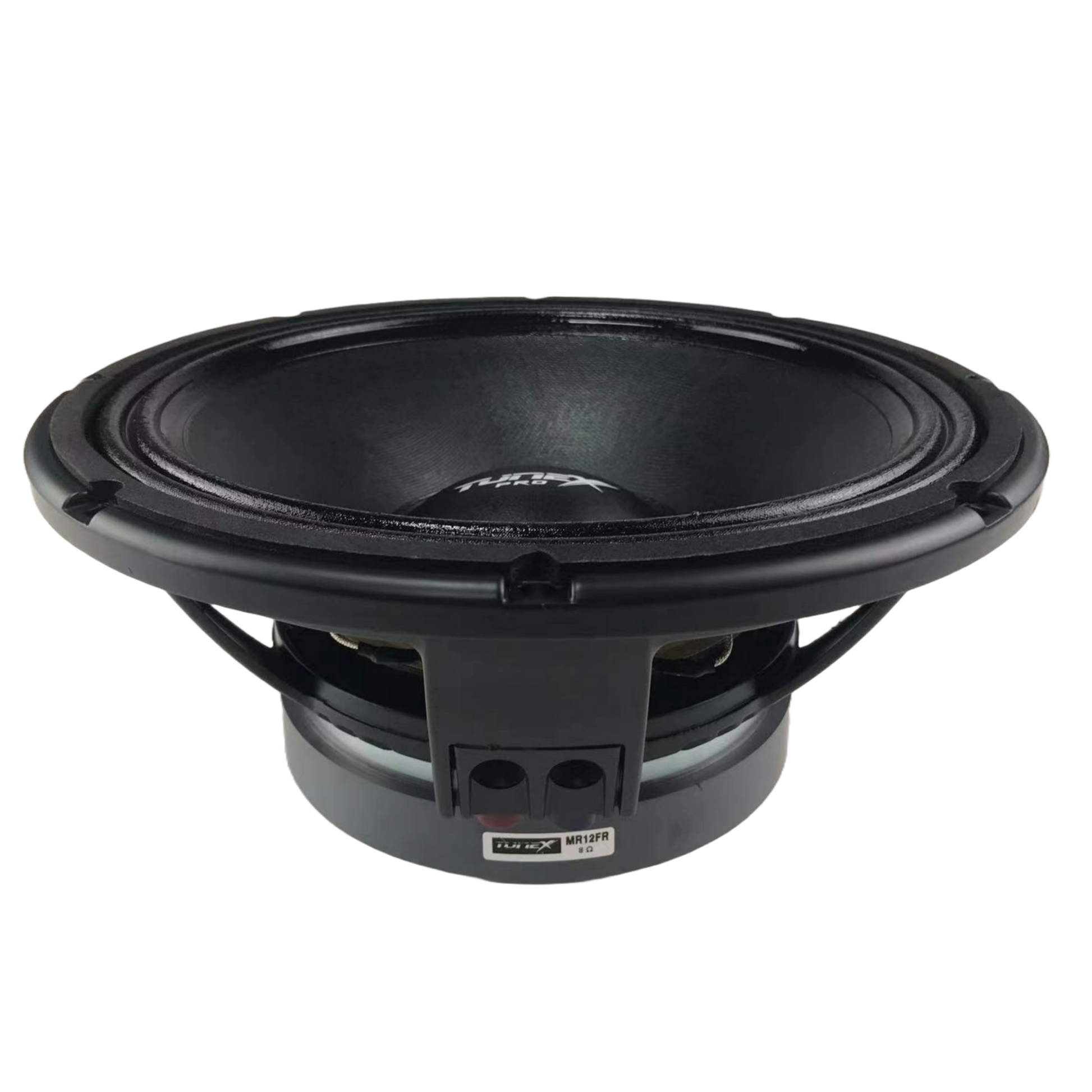

Tunex PRO 12Inch MR12FR Mid 1000 Watt (Single)

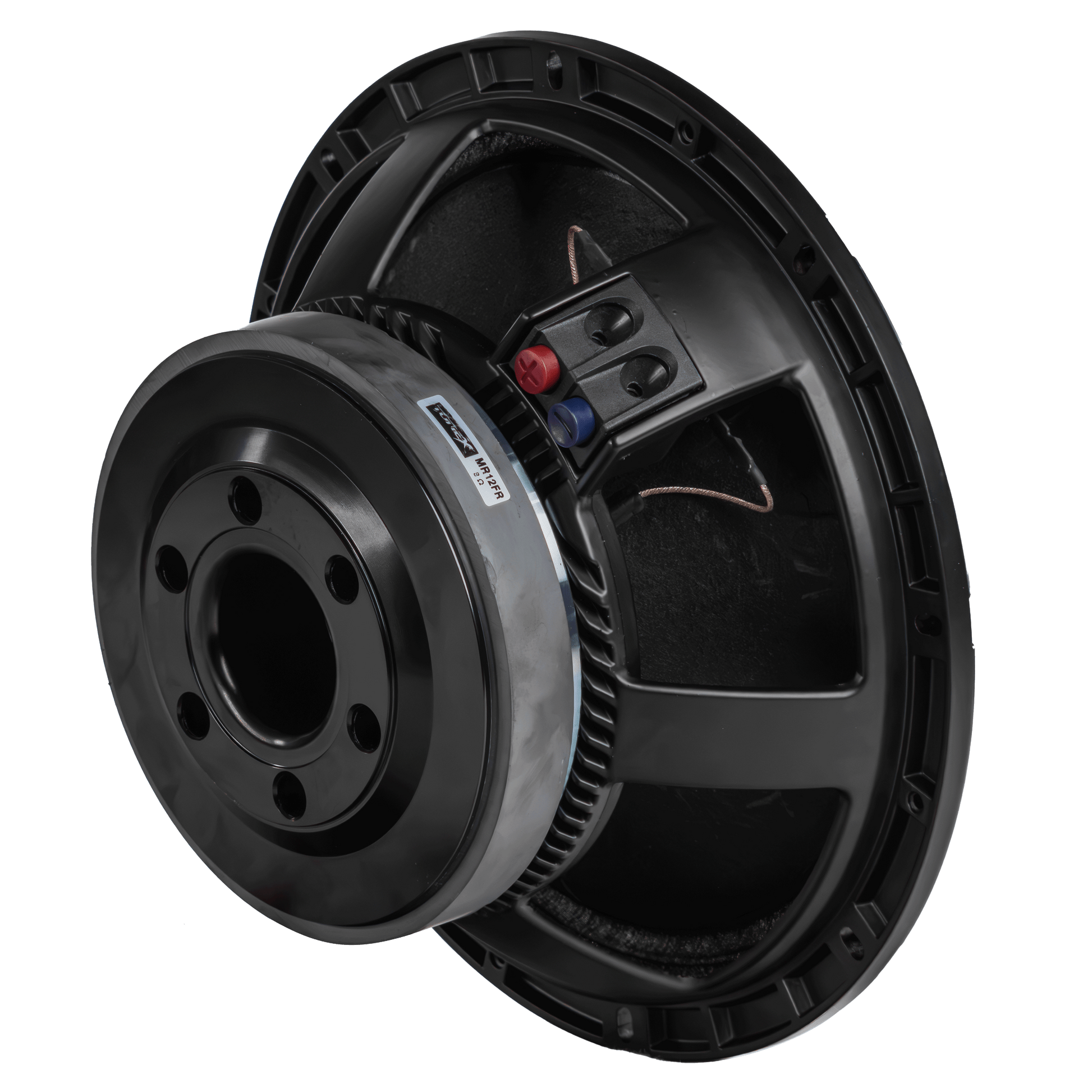

Tunex PRO 12 Inch Mid 1000Watt MR12FR(Single) High Powered High-Quality Speaker Driver Aluminum Die Cast Basket

Specifications			Thiele Small Parameters
TYPE	Mid-bass		Fs	55 Hz
Nominal Diameter	300 mm/12 in		Re	5.5ohm

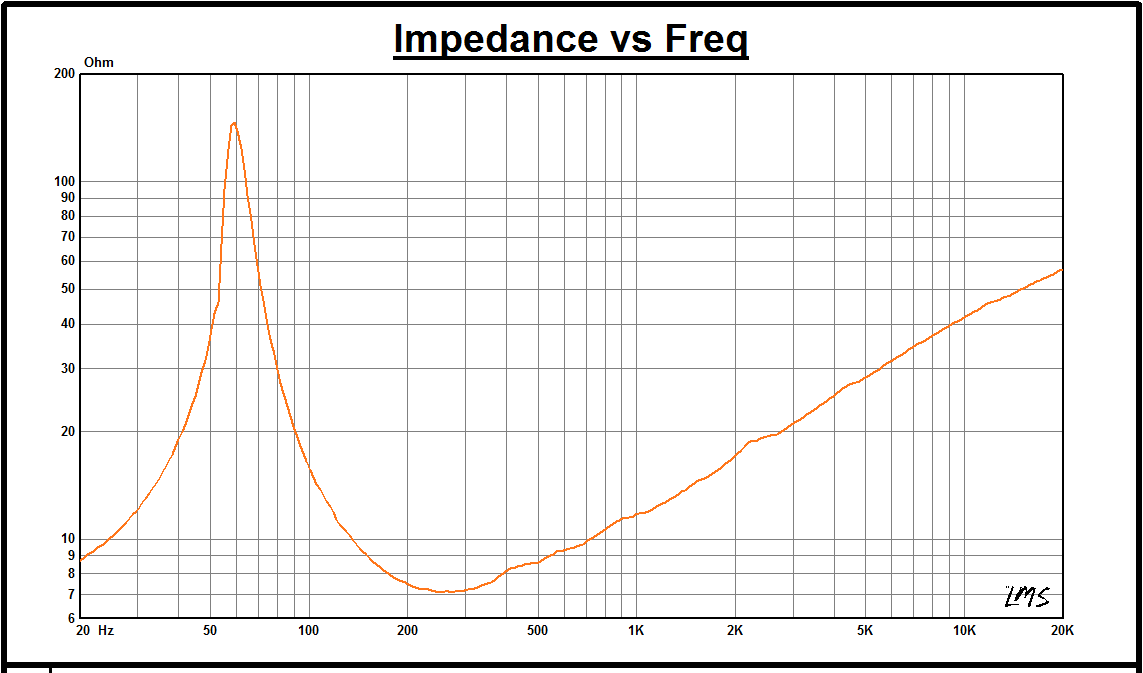

Rated impedance	8 ohm		Qms	8.07
Nominal (AES)	500 W		Qes	0.31
Continuous Program	1000 W		Qts	0.29

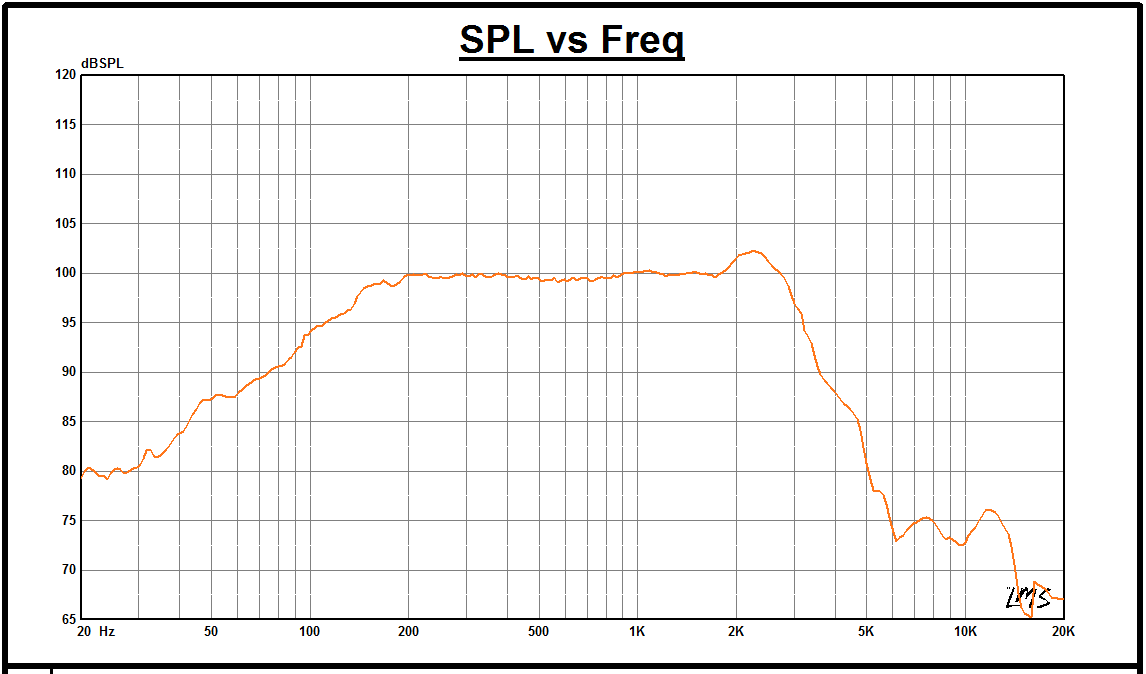

Sensitivity(1w/1m)	98		Vas	50.85L
Frequency Range	55Hz-3200Hz		Sd	0.0560m2
Voice Coil Diameter	86 mm/3 in		Mms	63.49 g
Voice Coil Material	CCAW out/in		BL	21 T.M
Mounting lnformation			Shipping   lnformation
Overall Diameter	φ320mm/φ12.6 in		Net Weight         ( 1unit)	7.6kg
Bolt Circle Diameter	φ299.5 mm/φ11.8 in
Mount Baffle Cut-out	φ285 mm/φ11.2 in
Depth	146mm/5.75 in
Bolt Hole Diameter	8-7mm/8-0.28 in
