Tunex PRO 12Inch CX12FR Coax Mid 800Rms (Sold Single)

Tunex PRO 12Inch CX12FR Coax Mid 800Rms (Sold Single)

$350.00
$350.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

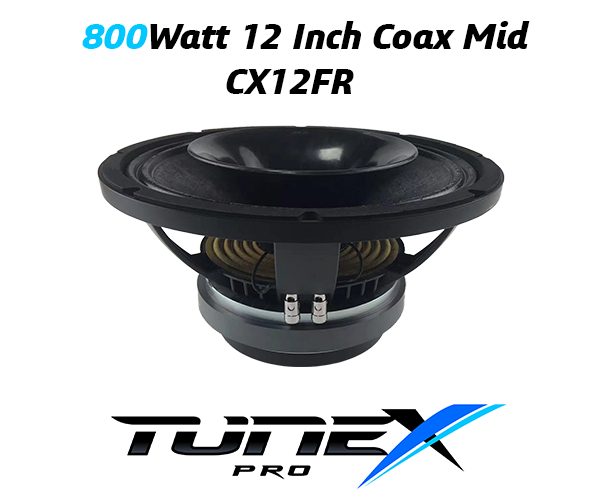

Tunex PRO 12 Inch Mid 800Watt CX12FR(Single) High Powered High-Quality Speaker Driver BUILT IN HF DRIVER Horn Aluminium Die Cast Basket 60degree x 40 degree Horn Flare

Specifications Thiele Small Parameters
TYPE COAXIAL Fs 52 Hz
Nominal Diameter 300 mm/12 in Re 5.6 ohm
Rated impedance 8 ohm Qms 8.76
Nominal (AES) 400 W Qes 0.4
Continuous Program 800 W Qts 0.39
Sensitivity(1w/1m) 96.5 dB Vas 64L
Frequency Range 52Hz-19000Hz Sd 0.0547 m2
Voice Coil Diameter 75 mm/3.0 in Mms 59.5g
Voice Coil Material Copper out/in BL 16.5 T.M
HF UNIT (Horn)
Nominal (AES) 80 W
Sensitivity(1w/1m) 107 dB
Voice Coil Diameter 75 mm/3.0 in
Voice Coil Material CCAR
