Power @ 4ohm : 7700W x 1
Power @ 2ohm : 13280W x 1
Power @ 1ohm : 22,000W x 1
Frequency Response : 13Hz – 254Hz
Signal to Noise Ratio : Greater than 91
Damping Factor : Greater than 250
Efficiency at 4ohm : Greater than 94%
Input Sensitivity : 6V - 0.2V
Subsonic Filter : 10Hz - 50Hz
Low Pass Filter : 35Hz – 250Hz
Bass Boost : 0 – 9dB
Phase : 0 -180 Degree
Remote Control with Clipping indicator

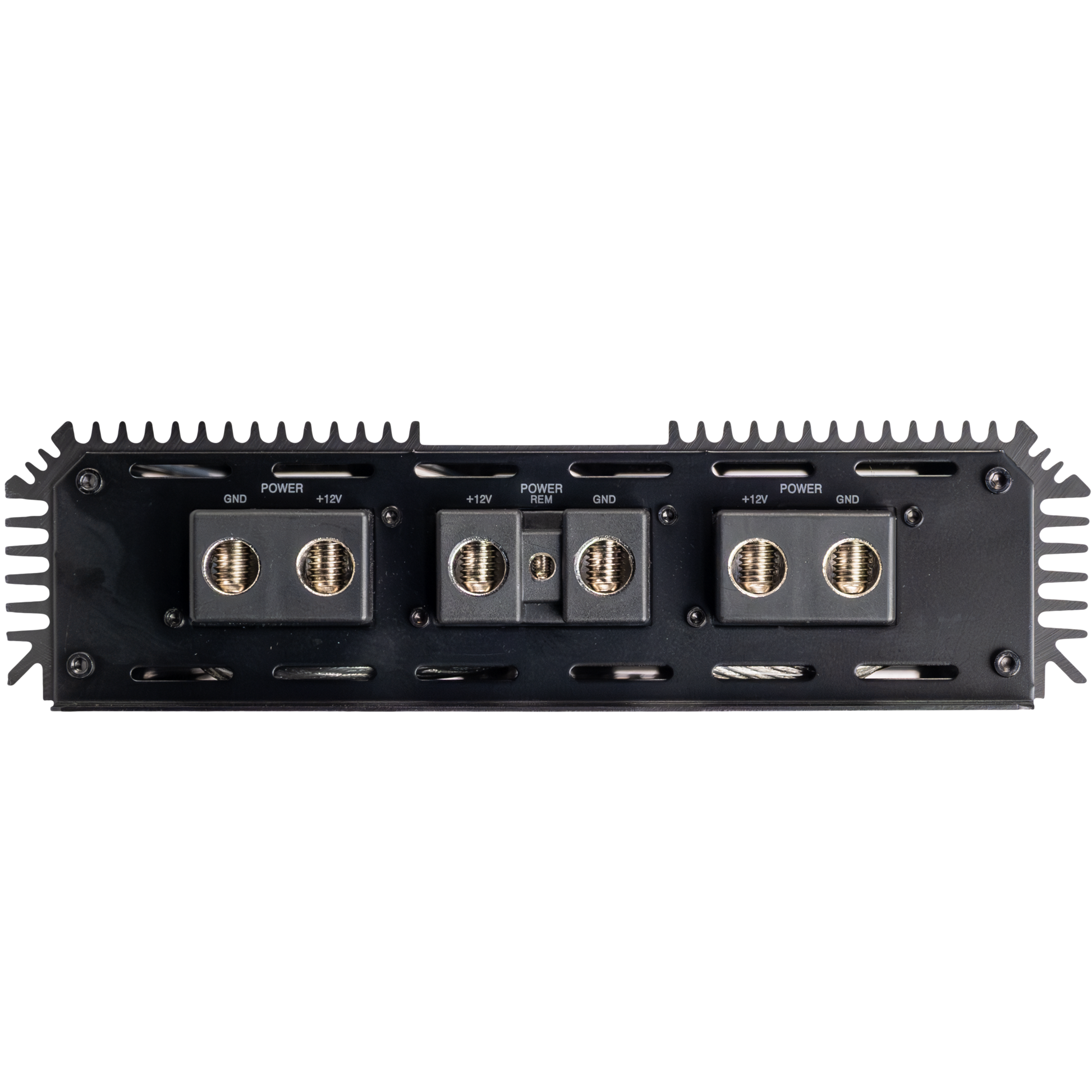

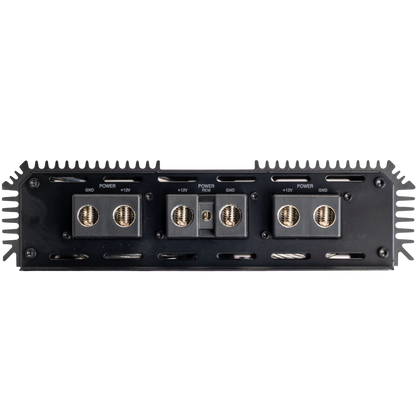

3 x 0 Ga Power & Ground Terminal
Working voltage : 10V to 16V

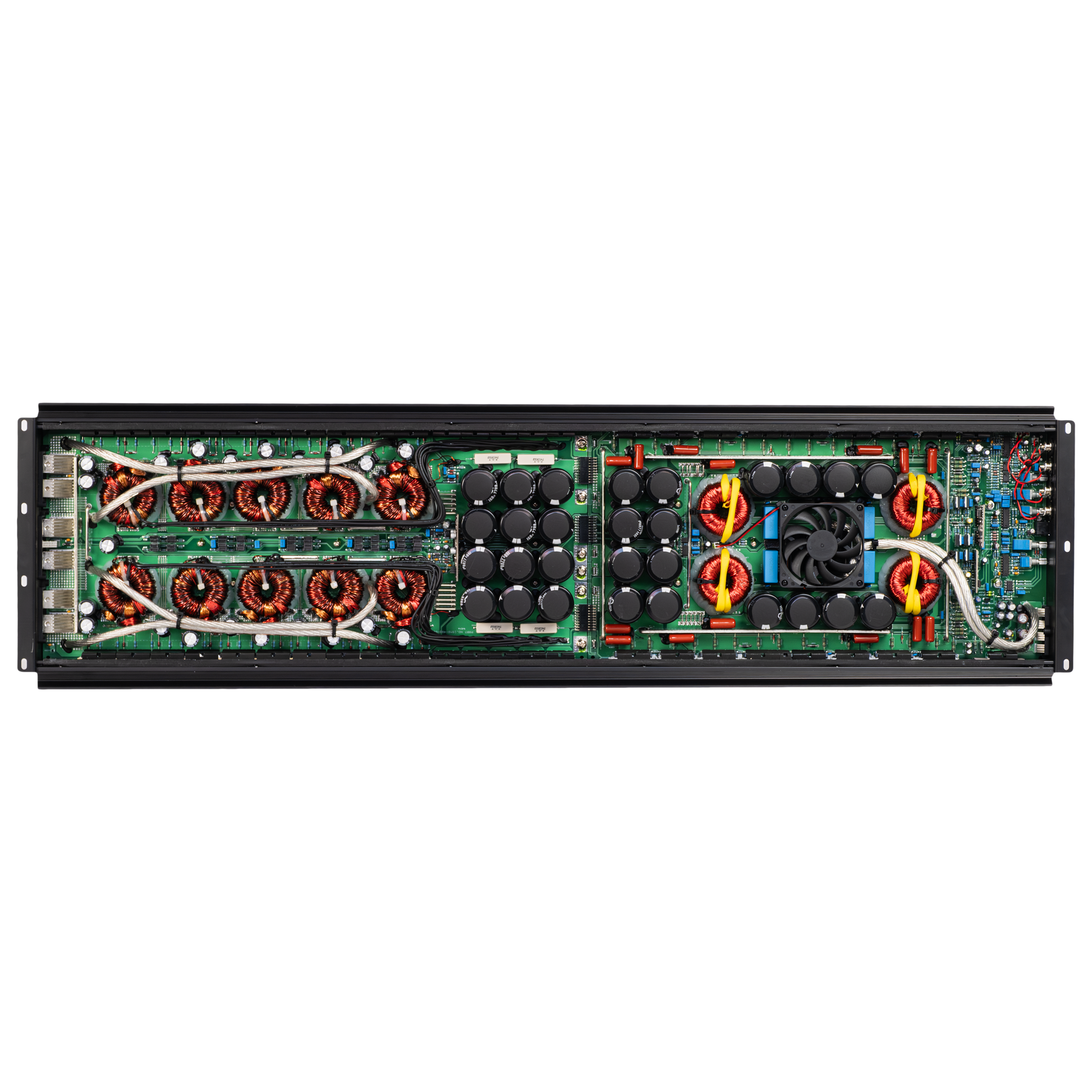

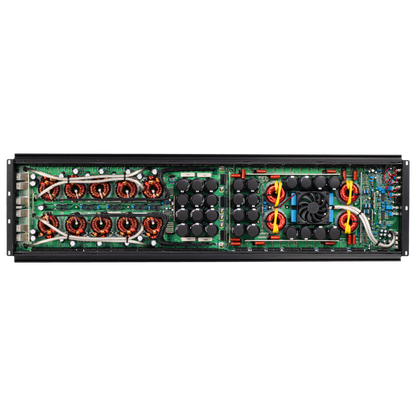

Heavy duty circuit board
Length : 960 mm
( 269 mm W x 69.5 mm H )
Warranty void if Amplifier is Mounted on the subwoofer Enclosure.
