Kenwood KFC-XH170C Hi Res 6.5 Component Set
Kenwood KFC-XH170C Hi Res 6.5 Component Set
Couldn't load pickup availability
-

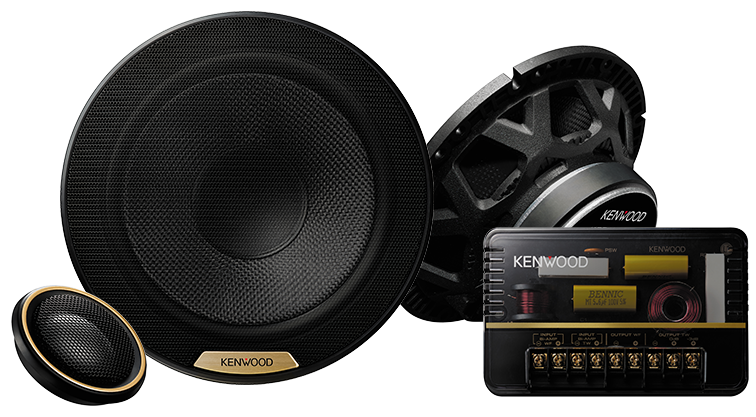

KFC-XH170CHi-Resolution Audio Certified
17cm Component Speaker- ・Glass Fiber Cone
- ・30mm Hard Dome Tweeter
- ・Network Box with Bi-amp Wiring Capability
- ・Multi-use Bracket
RICH AND IMMERSIVE HIGH-RESOLUTION AUDIO
High-Resolution Audio is high-quality sound that exceeds CD standard. High-resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality sonic experience.
Smooth waveforms
Loss of smoothness
Fine waveforms* The product with this logo is conformed to High-Resolution Audio standard defined by Japan Audio Society. This logo is used under license from Japan Audio Society.
GLASS FIBER CONE
The glass fiber cone combines high-strength with lightweight materials, allowing the speaker to reproduce all sounds from impactful bass notes to delicate tones.
WOOFER CAP WITH CIRCLE RIB
The circle rib provides enahnced woofer stability, ensuring bass is deep and clear.
SURROUND ROLL SHAPE
Asymmetrical thickness of the surround roll shape provides better focussed bass.
30mm LARGE TWEETER DESIGNED FOR HIGH RESOLUTION
30mm tweeters have a larger surface area than most tweeters which allows clear reproduction of vocal sound up through ultra high frequency range. Both flush and surface mountng options are included.
With its compound curvature diaphragm, a large 30mm titanium hard dome provides the ultimate in high frequency performance.
NEW BI-AMP CONNECTION
The KFC-XH170C's include bi-ampable crossover network box, allowing you to power the tweeter and woofer individually from the XH401-4 or other combinations of individual amplifier channels. The network box is further optimized with a high-reliability polyswitch and resistor to protect the tweeter from being overdriven.
FLUSH OR ANGLE MOUNT TWEETER
Mounting hardware is provided to enable both angled and flush mounting options.
WOOFER MULTI-BRACKET
A multi-bracket is included to make installation easier in a varierty of vehicle types.
General Features
Peak Input Power 300W Rated Input Power 100W Impedance 3Ω Woofer Features 165 mm Glass Fiber Cone Tweeter Features 30 mm Hard Dome Specifications Sensitivity 87 dB/ W / m Frequency Response 43Hz-40kHz (-10dB) Cutout Diameter 140 mm Mounting Depth 59 mm
