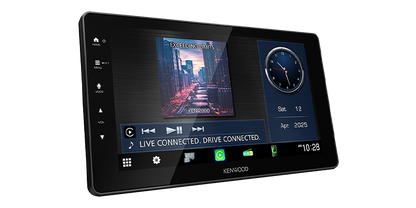

Kenwood DMX7509XDS 9 Inch HD Wireless Apple CarPlay & Android Auto Head Unit

KENWOOD DMX7509XDS 9 INCH HD MULTIMEDIA RECEIVER

9 INCH HD SCREEN. WIRELESS CARPLAY. WIRELESS ANDROID AUTO. PREMIUM KENWOOD PERFORMANCE.

The Kenwood DMX7509XDS combines a large 9 inch floating display with genuine 1280 x 720 HD resolution, wireless smartphone connectivity and advanced audio control.

Enjoy Wireless Apple CarPlay and Wireless Android Auto, giving you quick access to navigation, music, calls, messages and compatible apps without plugging your phone in every time you drive.

With DAB+ Digital Radio, Bluetooth, WiFi, HDMI input, two camera inputs, HD reverse camera capability and advanced audio tuning, the DMX7509XDS is designed for drivers who want much more than a basic head unit upgrade.

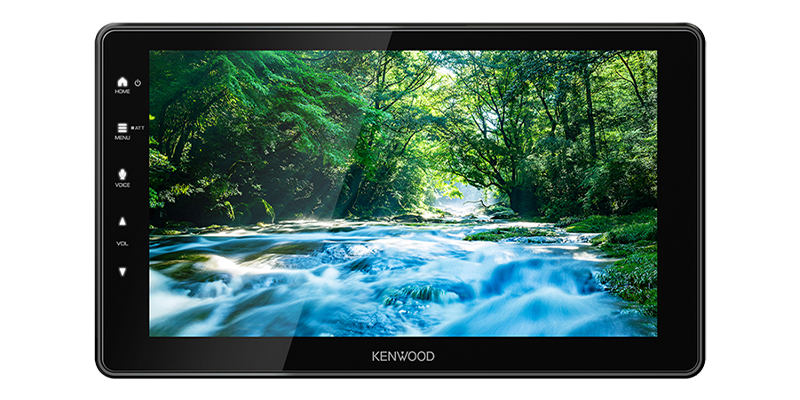

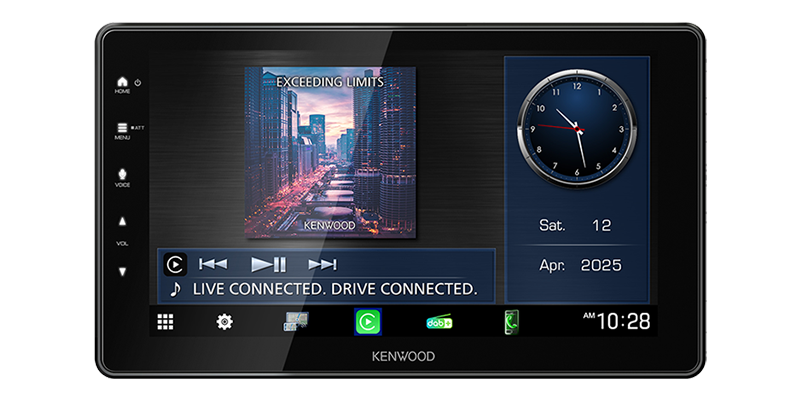

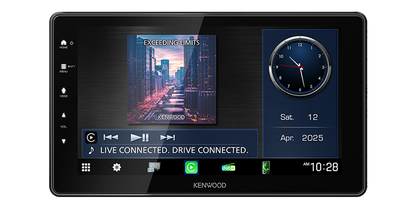

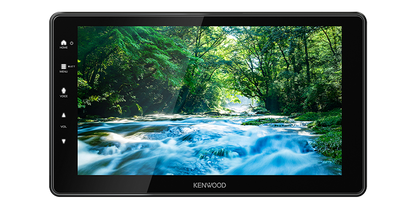

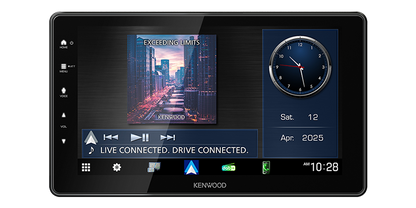

9 INCH HIGH DEFINITION DISPLAY

The DMX7509XDS features a large 9 inch 1280 x 720 HD capacitive touchscreen.

Compared with a conventional lower resolution screen, the HD display gives you:

• Sharper navigation maps

• Cleaner text and graphics

• Better camera image quality

• Improved viewing angles

• A more premium dashboard appearance

Kenwood states the display has approximately 2.4 times the resolution of a conventional WVGA display.

IF YOU LOOK AT YOUR HEAD UNIT EVERY DAY, SCREEN QUALITY MATTERS.

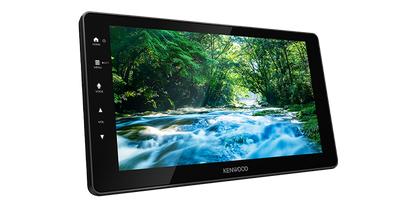

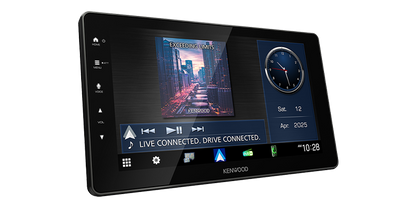

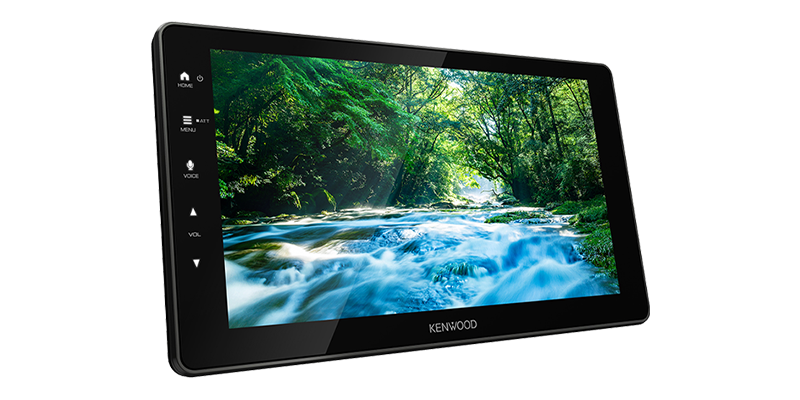

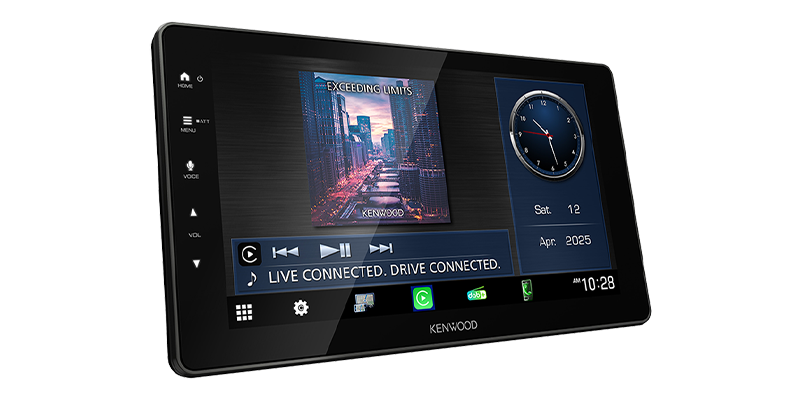

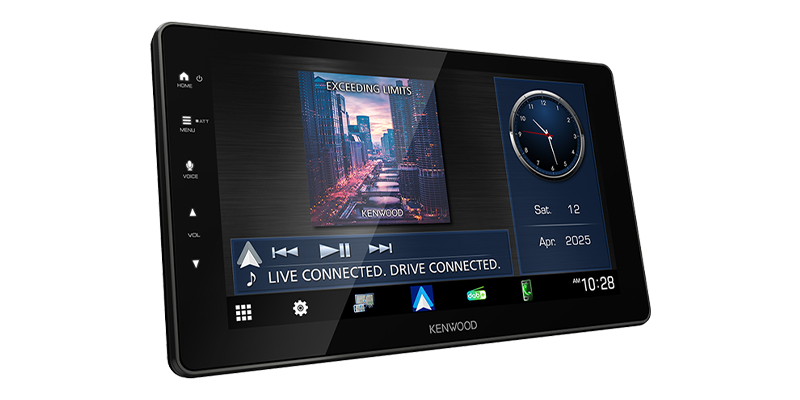

ADJUSTABLE FLOATING DISPLAY

The large screen uses Kenwood's adjustable floating panel mechanism.

The display can be positioned to better suit your dashboard, viewing angle and surrounding controls.

This gives you the impact of a large 9 inch display without requiring the entire screen to fit inside a conventional dashboard opening.

WIRELESS APPLE CARPLAY

Connect your compatible iPhone wirelessly and access compatible features including:

• Apple Maps

• Google Maps

• Spotify

• Apple Music

• Phone calls

• Messages

• Siri

The DMX7509XDS supports both wired and wireless Apple CarPlay.

WIRELESS ANDROID AUTO

Android users also get both wired and wireless Android Auto.

Access compatible navigation, music, calling and messaging apps directly through the large Kenwood display.

GET IN. CONNECT. DRIVE.

WIRELESS SMARTPHONE MIRRORING

Compatible smartphones can also use wireless screen mirroring, providing additional flexibility beyond CarPlay and Android Auto.

An HDMI input is also included for compatible external devices and video sources.

DAB+ DIGITAL RADIO

The DMX7509XDS includes built in DAB+ Digital Radio, giving you access to compatible digital radio stations directly through the head unit.

Bluetooth and WiFi are also built in for modern wireless connectivity.

HD REVERSE CAMERA READY

This is another major advantage of the DMX7509XDS.

When used with compatible Kenwood HD cameras such as the CMOS 740HD or CMOS 150HD, the rear camera input can display a true 1280 x 720 HD image.

That can give you a noticeably clearer reverse camera image than traditional low resolution camera systems.

2 CAMERA INPUTS

The unit provides two camera inputs, allowing compatible front and rear camera setups.

Perfect for:

• Reverse cameras

• Front parking cameras

• SUVs

• 4WDs

• Utes

• Larger vehicles

Adjustable parking guidelines are also supported.

BUILT FOR BETTER SOUND

The DMX7509XDS is not just about having a large screen.

It also gives you the audio controls required for a properly designed aftermarket sound system.

Features include:

• 13 Band Graphic Equaliser

• Digital Time Alignment

• 2 Way Crossover Control

• 3 Way Crossover Capability

• Subwoofer Level Control

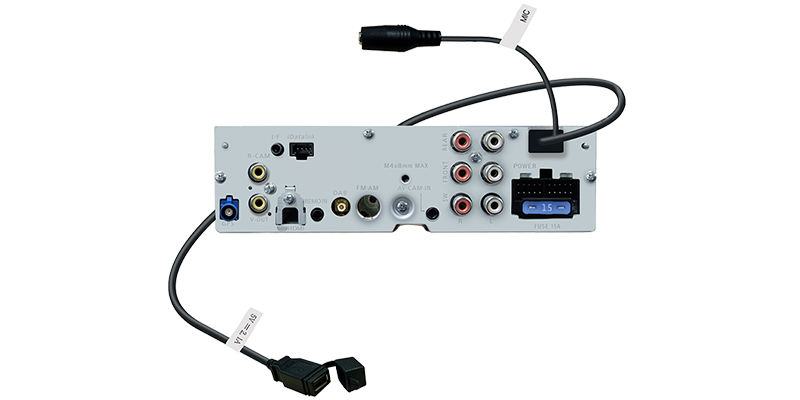

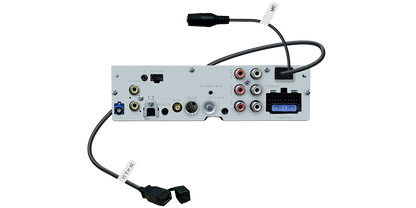

• Front, Rear and Subwoofer Preouts

• 3V RCA Preout Voltage

• 50W x 4 Maximum Internal Amplifier Output

This makes the DMX7509XDS a strong starting point for a system using aftermarket speakers, amplifiers and subwoofers.

A GOOD SOURCE UNIT GIVES THE REST OF YOUR AUDIO SYSTEM A BETTER FOUNDATION.

IDATALINK MAESTRO READY

The DMX7509XDS is compatible with iDatalink Maestro RR and RR2 where supported.

On compatible vehicles this can allow selected factory vehicle information and functions to be retained and integrated into the aftermarket head unit.

Compatibility depends on the vehicle and additional hardware is required.

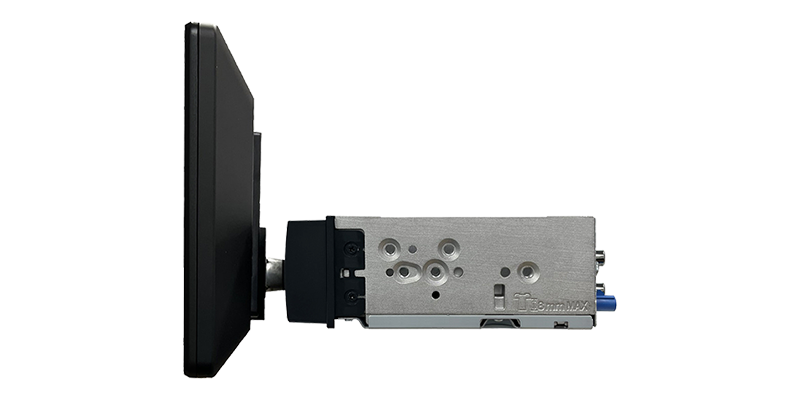

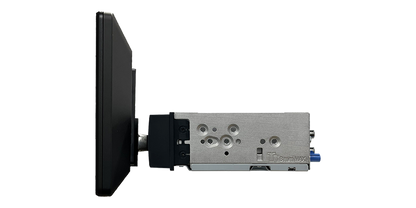

COMPACT 1 DIN CHASSIS

Despite having a large 9 inch screen, the main unit uses a compact 1 DIN chassis.

This makes installation possible in many vehicles where a traditional large chassis multimedia receiver would be difficult to fit.

KEY FEATURES

Display: 9 Inch HD Capacitive Touchscreen

Resolution: 1280 x 720

Display Design: Floating Panel

Apple CarPlay: Wired and Wireless

Android Auto: Wired and Wireless

Wireless Mirroring: Yes

Bluetooth: Version 5.3

WiFi: Built In

DAB+ Digital Radio: Built In

HDMI Input: Yes

Camera Inputs: 2

HD Rear Camera Ready: Yes

Equaliser: 13 Band

Time Alignment: Yes

Preouts: 3

Preout Voltage: 3V

Maximum Internal Output: 50W x 4

USB Charging: Up to 2.1A

Chassis: 1 DIN

WHY CHOOSE THE DMX7509XDS?

Choose this model if you want:

• A large 9 inch screen

• True 1280 x 720 HD resolution

• Wireless Apple CarPlay

• Wireless Android Auto

• DAB+ Digital Radio

• HD reverse camera capability

• Front and rear camera support

• HDMI input

• Advanced audio tuning

• iDatalink Maestro compatibility

• A premium floating screen without moving to an oversized 11 inch display

LARGE ENOUGH TO MAKE A DIFFERENCE. SMALL ENOUGH TO SUIT A WIDE RANGE OF VEHICLES.

PROFESSIONAL INSTALLATION AVAILABLE

Depending on your vehicle, installation may require:

• Vehicle specific fascia

• Wiring harness

• Steering wheel control interface

• Factory amplifier integration

• Reverse camera integration

• Antenna adapter

• Factory USB retention adapter

Tunex Audio can help select the correct installation parts and professionally integrate the DMX7509XDS into your vehicle.

NOT SURE IF IT FITS YOUR VEHICLE?

Send us your vehicle make, model and year and we can help determine what is required.

HD SCREEN. WIRELESS CONNECTIVITY. SERIOUS AUDIO CONTROL.
