Hertz SV200L 8inch | Spl Woofer | 500 W | 4 Ohm | Pair
Hertz SV200L 8inch | Spl Woofer | 500 W | 4 Ohm | Pair
Regular price
$900.00
Regular price
Sale price
$900.00
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

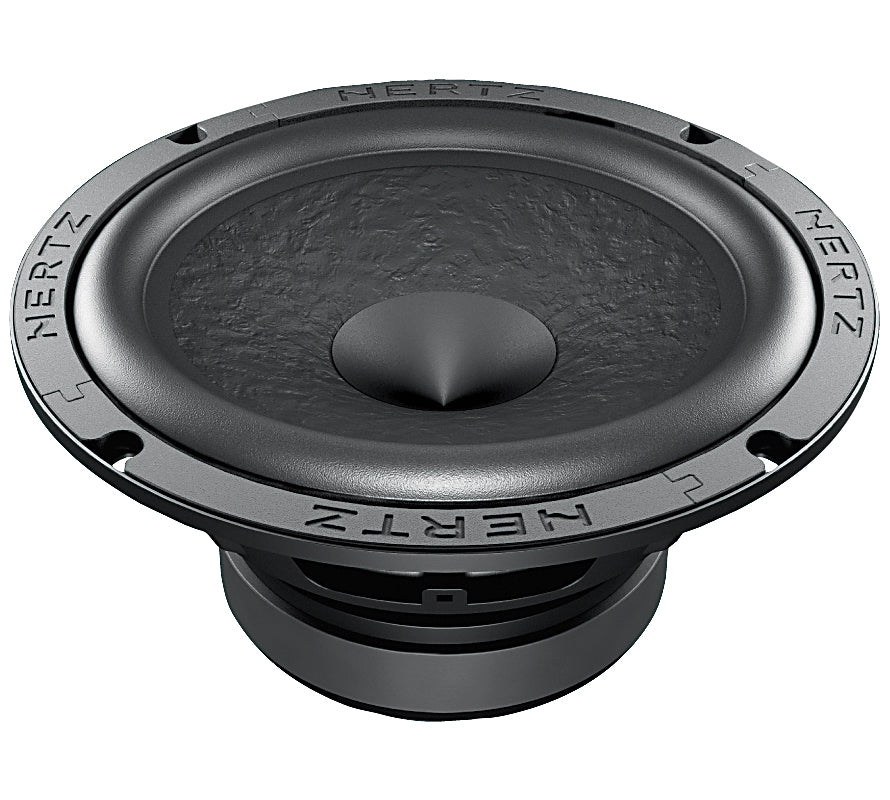

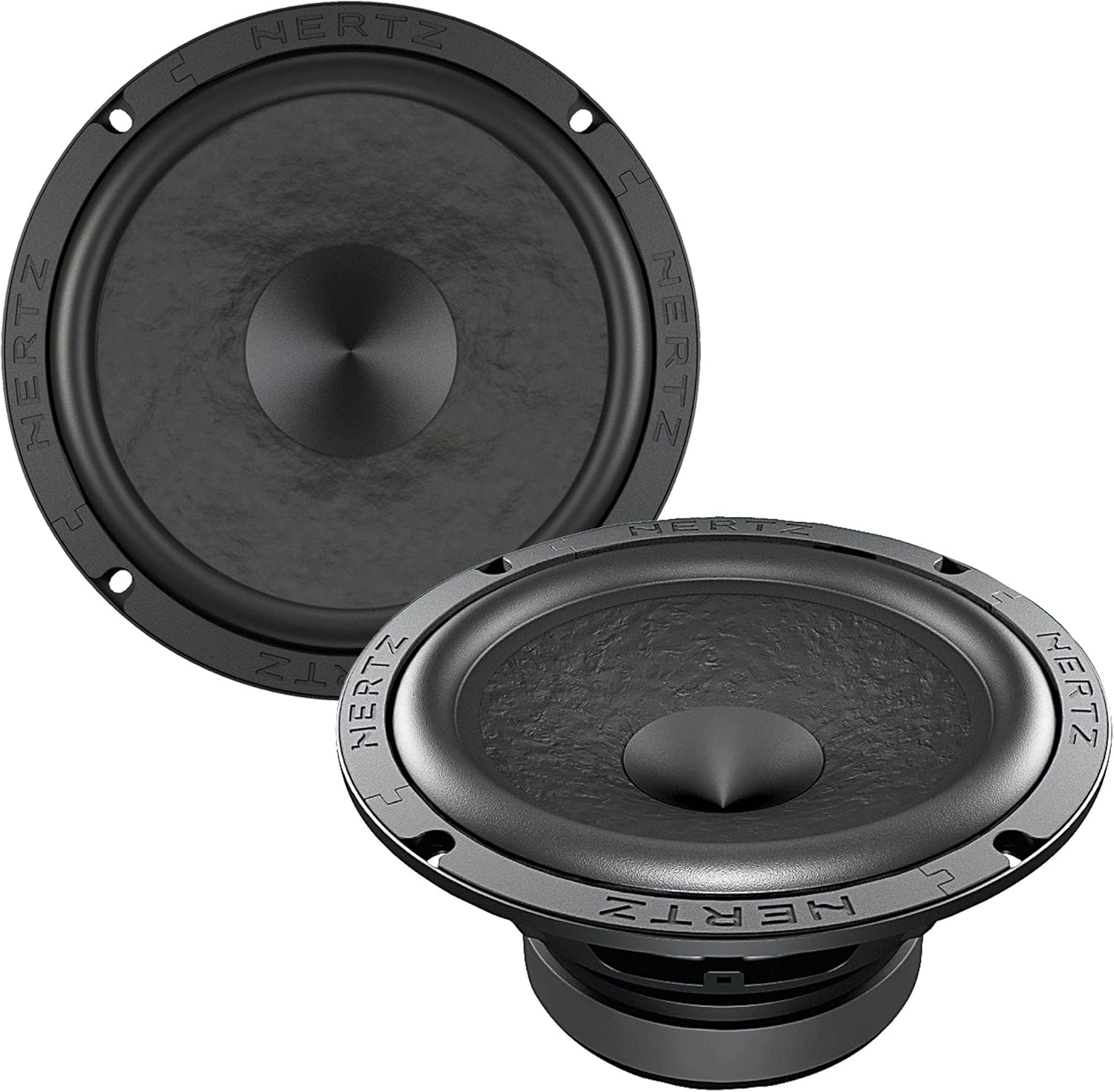

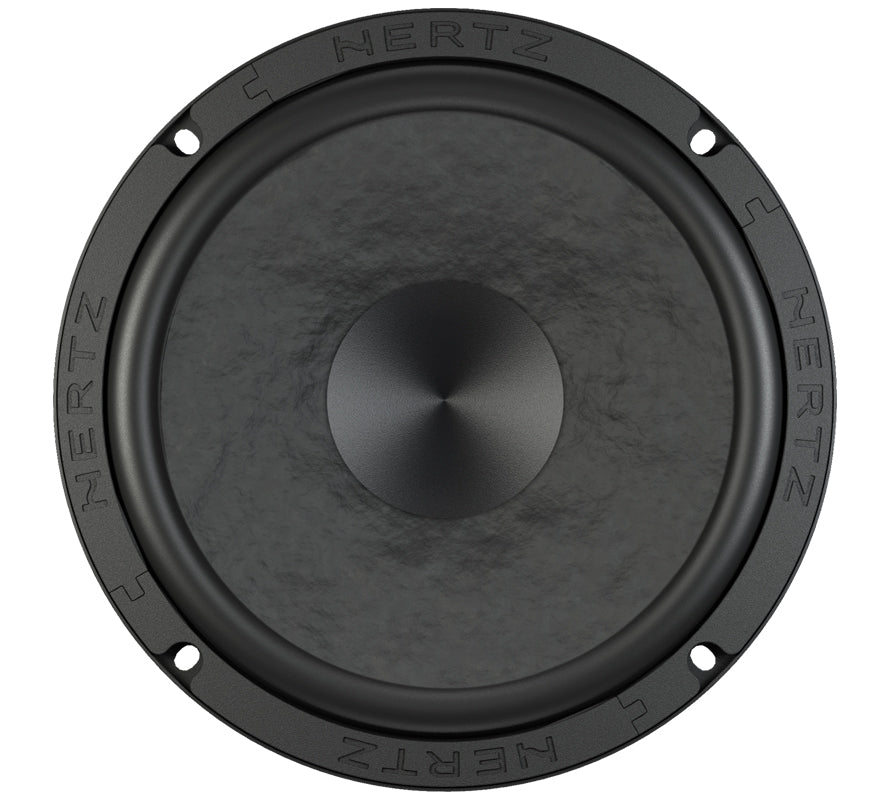

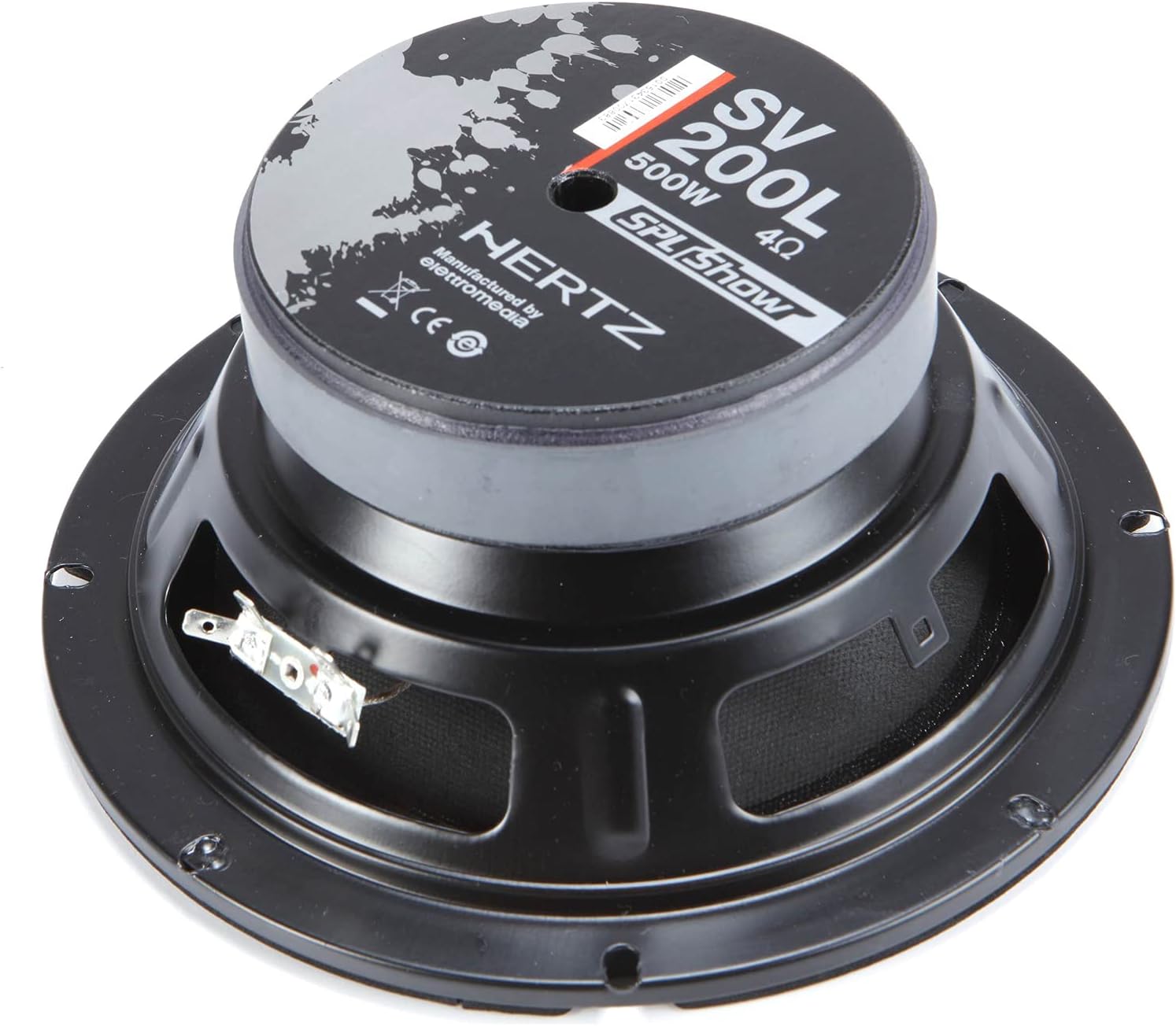

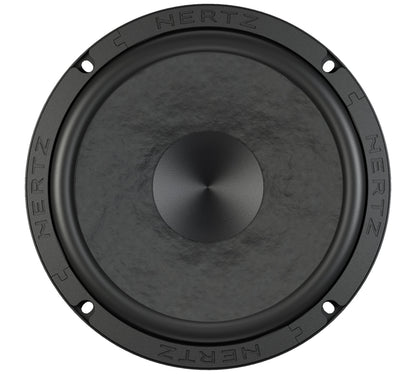

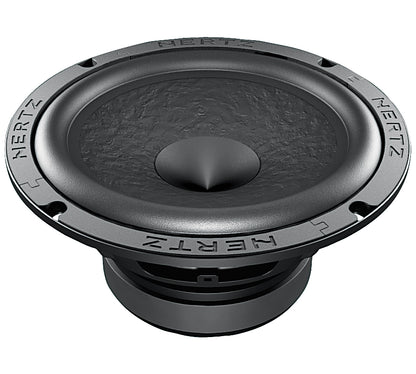

The Hertz SV 200L car audio woofers was designed to offer superior performance in terms of both thermal and mechanical capability. The target has been fully hit since the woofer features a pure copper voice coil wound on KSV former, an oversized magnet and a vented bottom plate. The SV 200L employs the proprietary V-cone technology with the cone constructed from pulp with cotton fibre as well as Lossless Polymer Rubber Surround, offering a powerful low frequency response as well as the best off-axis dispersion.
| Component | SPL Woofer |
| Size mm (in.) | 200 (8) |
| Power Handling - Continuous W | 250 |
| Power Handling - Peak W | 500 |
| Impedance Ohm | 4 |
| Voice Coil Ø | 50 (2) |
| Frequency Response Hz | 45 ÷ 4,5k |
| Magnet size D x d x h mm (in.) | 120 x 60 x 20 (4.7 x 2.4 x 0.8) |
| Weight of one speaker kg (lb.) | 2,32 (5.1) |
| Magnet | High density flux ferrite |
| Cone | Ultra light, non pressed paper |
| D mm | 168 |
| Re Ohm | 3 |
| Fs Hz | 44 |
| Le mH | 0,75 |
| Vas I | 29 |
| Mms g | 31,5 |
| Cms mm/N | 0,42 |
| BL T*m | 8,6 |
| Qts | 0,33 |
| Qes | 0,36 |
| Qms | 3,32 |
| Spl dB | 94,5 |
Physical Specs
| A | 209 mm | 8.3 in. |
| B | 178 mm | 7 in. |
| C | 91 mm | 3.6 in. |
| D | 82 mm | 3.2 in. |
Frequency response
