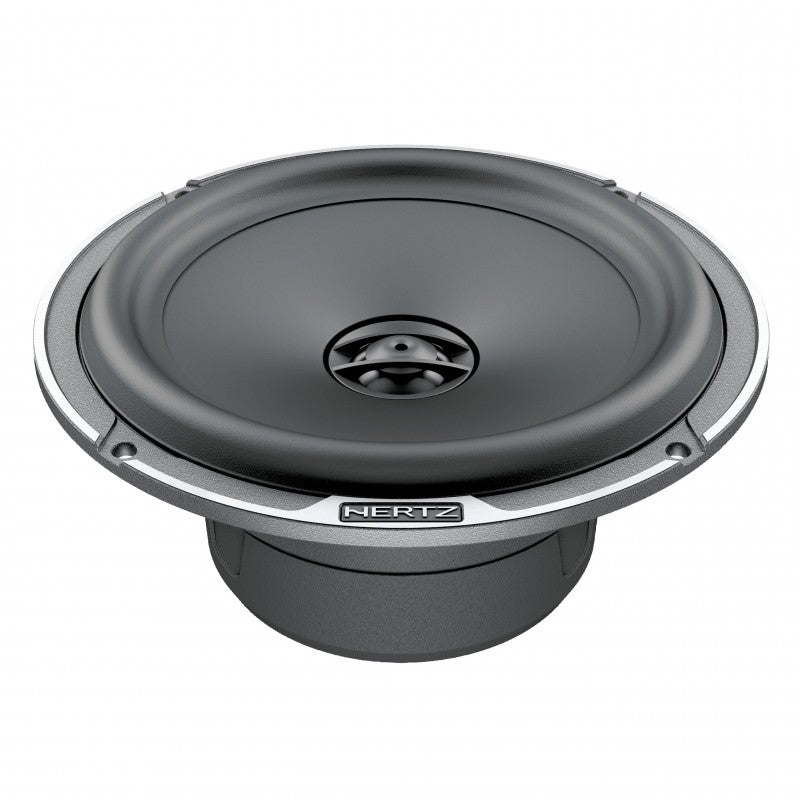

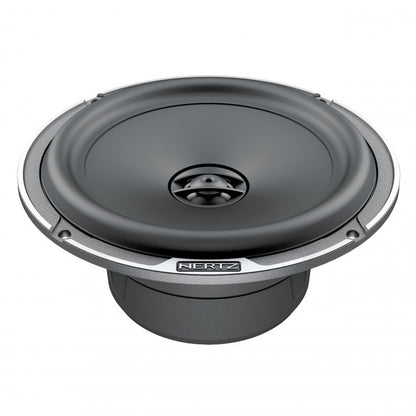

HERTZ Mille MPX1653 Coaxial Speakers 6.5
HERTZ Mille MPX1653 Coaxial Speakers 6.5
Regular price
$500.00
Regular price
Sale price
$500.00
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability

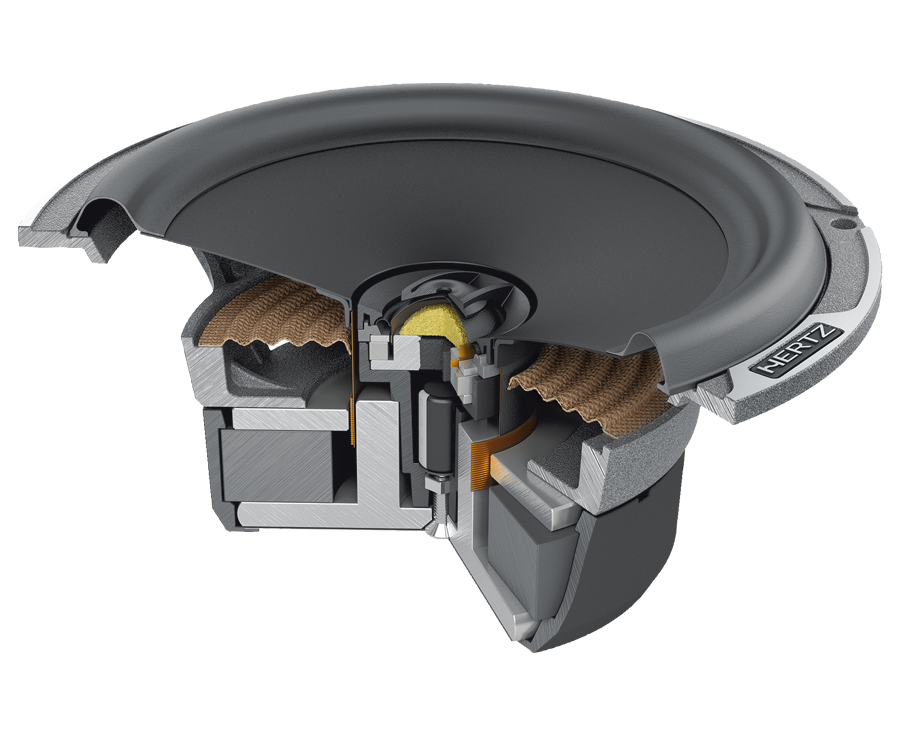

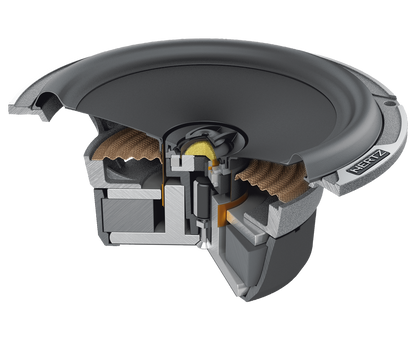

The coax tweeter concentric to the woofer of the MPX 165.3 car audio coaxial speakers allows for one single linear-phase emission point, for a natural timbre providing a detailed sound stage. Thanks to the “Center Tuning Duct” geometry, the tweeter resonance frequency is especially low and the employment of damping materials for the inside provides for a linear acoustic emission. The acoustic lens optimizes its off-axis response, which is typical with door installation of coax speakers; besides, the 36 mm diameter woofer generates deep and controlled bass frequencies.
| Component | Coaxials |
| Size mm (in.) | 165 (6.5) |
| Power Handling - Continuous W | 100 |
| Power Handling - Peak W | 200 |
| Impedance Ohm | 4 |
| Woofer Voice Coil Ø mm (in.) | 36 (1.42) |
| Tweeter Voice Coil Ø mm (in.) | 20 (0.8) |

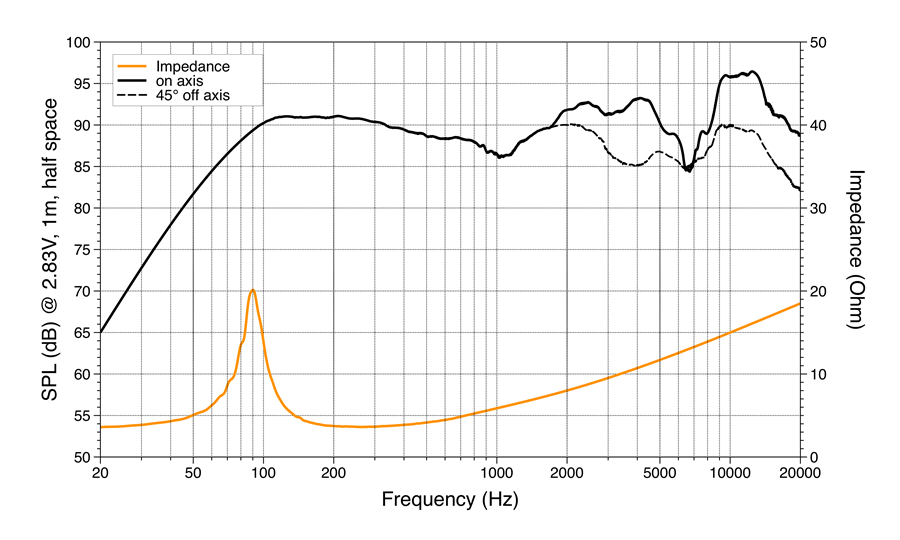

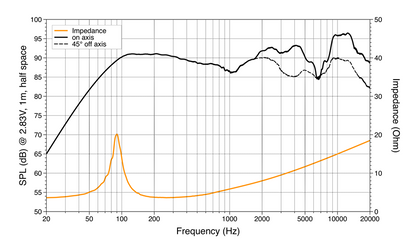

| Frequency Response Hz | 45 ÷ 21,5k |
| Woofer Magnet size D x d x h mm (in.) | 90 x 45 x 17 (3.54 x 1.77 x 0.67) |
| Tweeter Magnet size D x h mm (in.) | 29.5 x 22 x 4 (1.16 x 0.87 x 0.16) |
| Weight of one speaker kg (lb.) | 1.27 (2.8) |
| Woofer Magnet | High density flux ferrite |
| Tweeter Magnet | Neodymium |
| Cone | Pressed-pulp cone with cotton fibers |
| Dome | Tetolon |
| Xmech mm (in.) |
±6 (0.24) |
| D mm | 132 |
| Re Ohm | 3,1 |
| Fs Hz | 90 |
| Le mH | 0,01 |
| Vas I | 4 |
| Mms g | 18,9 |
| Cms mm/N | 0,15 |
| BL T*m | 5,8 |
| Qts | 0,88 |
| Qes | 1,06 |
| Qms | 5,5 |
| Spl dB | 92 |
