HERTZ DCX 690.3(6 x 9) mm (in.) | 98 (3.9) mm (in.) | Three Way Coaxial | 180 W | 4 Ohm (PAIR)
HERTZ DCX 690.3(6 x 9) mm (in.) | 98 (3.9) mm (in.) | Three Way Coaxial | 180 W | 4 Ohm (PAIR)
Regular price
$249.00
Regular price
Sale price
$249.00
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
DCX 690.3(6 x 9) mm (in.) | 98 (3.9) mm (in.) | Three Way Coaxial | 180 W | 4 Ohm

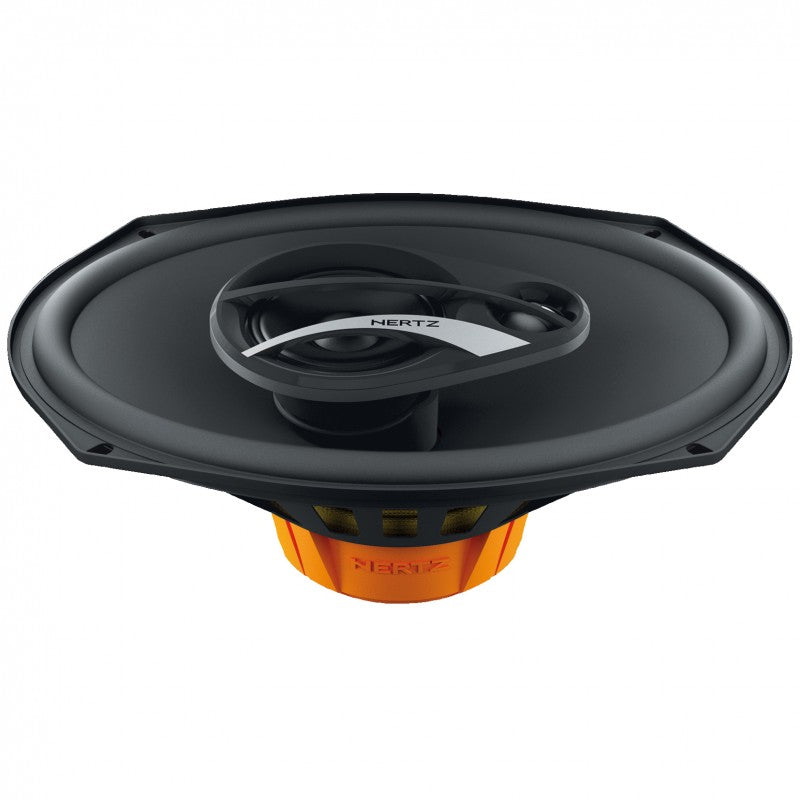

Hertz DCX 690.3 Dieci series car audio coaxials use an oversized magnetic group, TPU (Thermoplastic polyurethane) surround, a 60 mm diameter midrange, and a PEI dome tweeter. The result is linearity, wide dispersion, and extra-ordinary efficiency not found in traditional coax components. An involving, emotional sound, even at high SPL levels. An authentic 3-way coax capable of reproducing a wide frequency spectrum.
| Component | Three way coaxial |
| Size mm (in.) | (6 x 9) |
| Power Handling - Continuous W | 90 |
| Power Handling - Peak W | 180 |
| Impedance Ohm | 4 |
| Depth mm (in.) | 98 (3.9) |
| Woofer Voice Coil Ø mm (in.) | 25 (1.0) |
| Frequency Response Hz | 45 ÷ 21k |
| Woofer Magnet size D x d x h mm (in.) | 80 x 40 x 15 (3.1 x 1.6 x 0.6) |
| Weight of one speaker kg (lb.) | 0,95 (2.09) |
| Woofer Magnet | High density flux ferrite |
| Tweeter Magnet | High density flux ferrite |
| D mm | 170 |
| Re Ohm | 3,4 |
| Fs Hz | 66 |
| Vas I | 25,7 |
| Mms g | 16,5 |
| Cms mm/N | 0,35 |
| BL T*m | 3,9 |
| Qts | 1,12 |
| Qes | 1,55 |
| Qms | 4,06 |
| Spl dB | 93 |
Physical Specs
| A1 | 237 mm (9.3 in.) |
| A2 | 162 mm (6.4 in.) |
| B1 | 224 mm (8.8 in.) |
| B2 | 153 mm (6.0 in.) |
| C | 98 mm (3.9 in.) |
| D | 77 mm (3.0 in.) |
Accessories
Grille
Included
