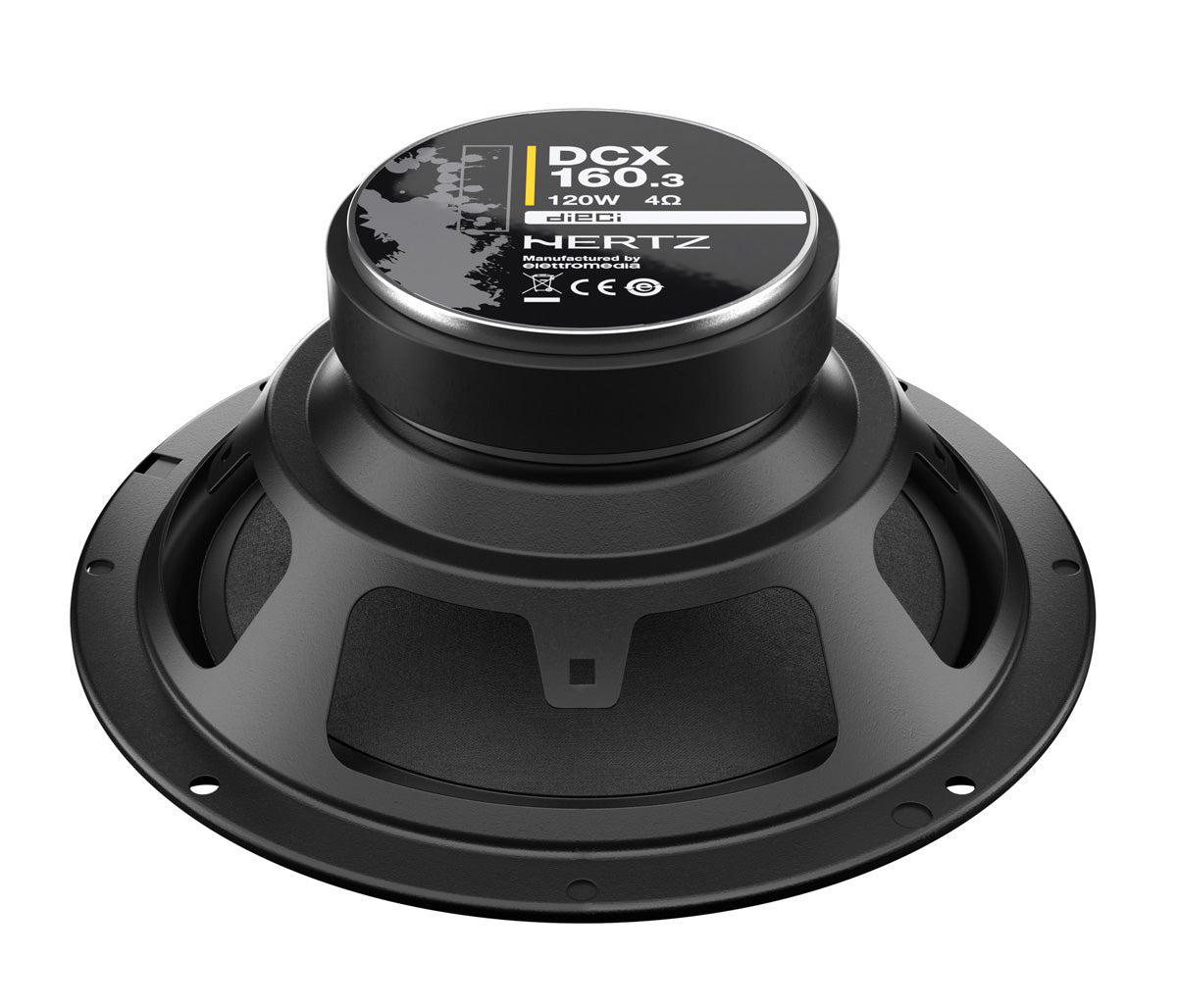

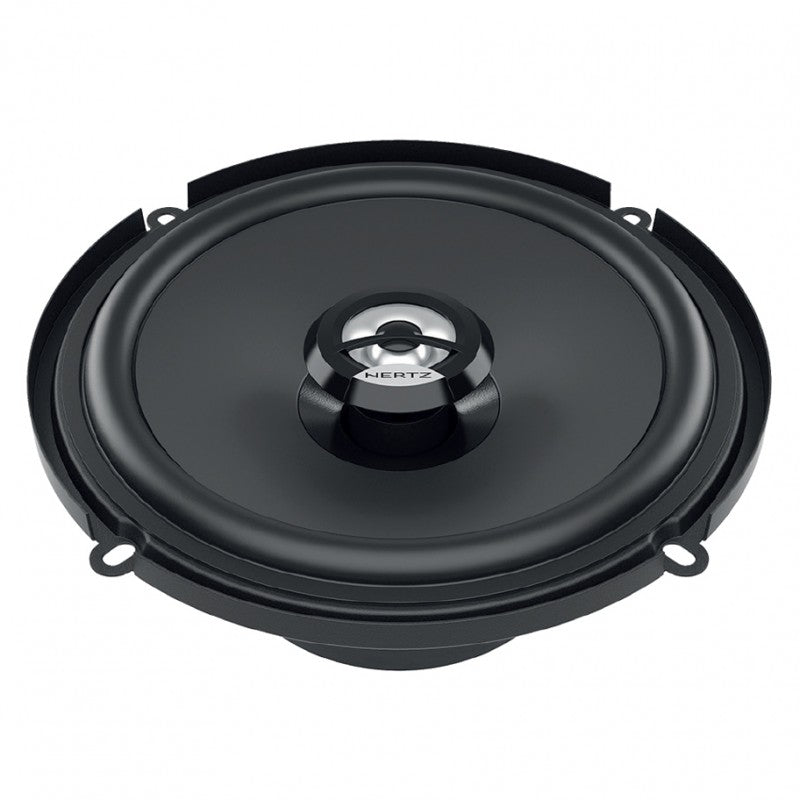

To meet all installation needs, without giving up on Hertz quality and performance, Hertz DCX 160.3 Dieci series car audio coaxial is designed with maniacal care to provide linear frequency response and ensure high reliability. A Neodymium magnet, PEI dome tweeter, built-in crossover, TPU (Thermoplastic polyurethane) surround and a pressed-paper cone provide the optimum ratio between installation friendliness and sound with dynamic and emotional impact. The new Hertz Dieci DCX 160.3 6” coaxial includes an adaptor ring designed for installation in GM and Honda models with 6” OEM speakers.

Component	Two way coaxial
Size mm (in.)	160 (6)
Power Handling - Continuous W	60
Power Handling - Peak W	120
Impedance Ohm	4
Depth mm (in.)	66.5 (2.62)
Woofer Voice Coil Ø mm (in.)	25 (1)
Frequency Response Hz	50 ÷ 21k
Woofer Magnet size D x d x h mm (in.)	80 x 40 x 15 (3.1 x 1.6 x 0.6)
Weight of one speaker kg (lb.)	0,75 (1.65)
Woofer Magnet	High density flux ferrite
Tweeter Magnet	Neodymium
Cone	Water-repellent pressed paper
Dome	PEI

D mm	124
Re Ohm	3,2
Fs Hz	70
Le mH	0,18
Vas I	10,32
Mms g	10
Cms mm/N	0,52
BL T*m	4,50
Qts	0,62
Qes	0,69
Qms	6,3
Spl dB	93
