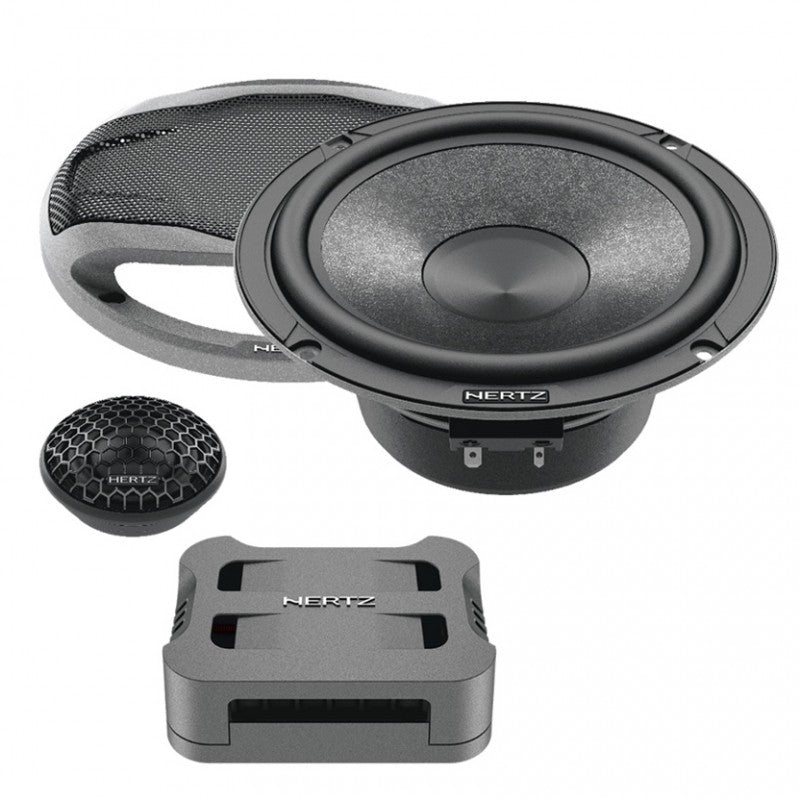

HERTZ Cento Components 6.5 CK165
HERTZ Cento Components 6.5 CK165
Couldn't load pickup availability

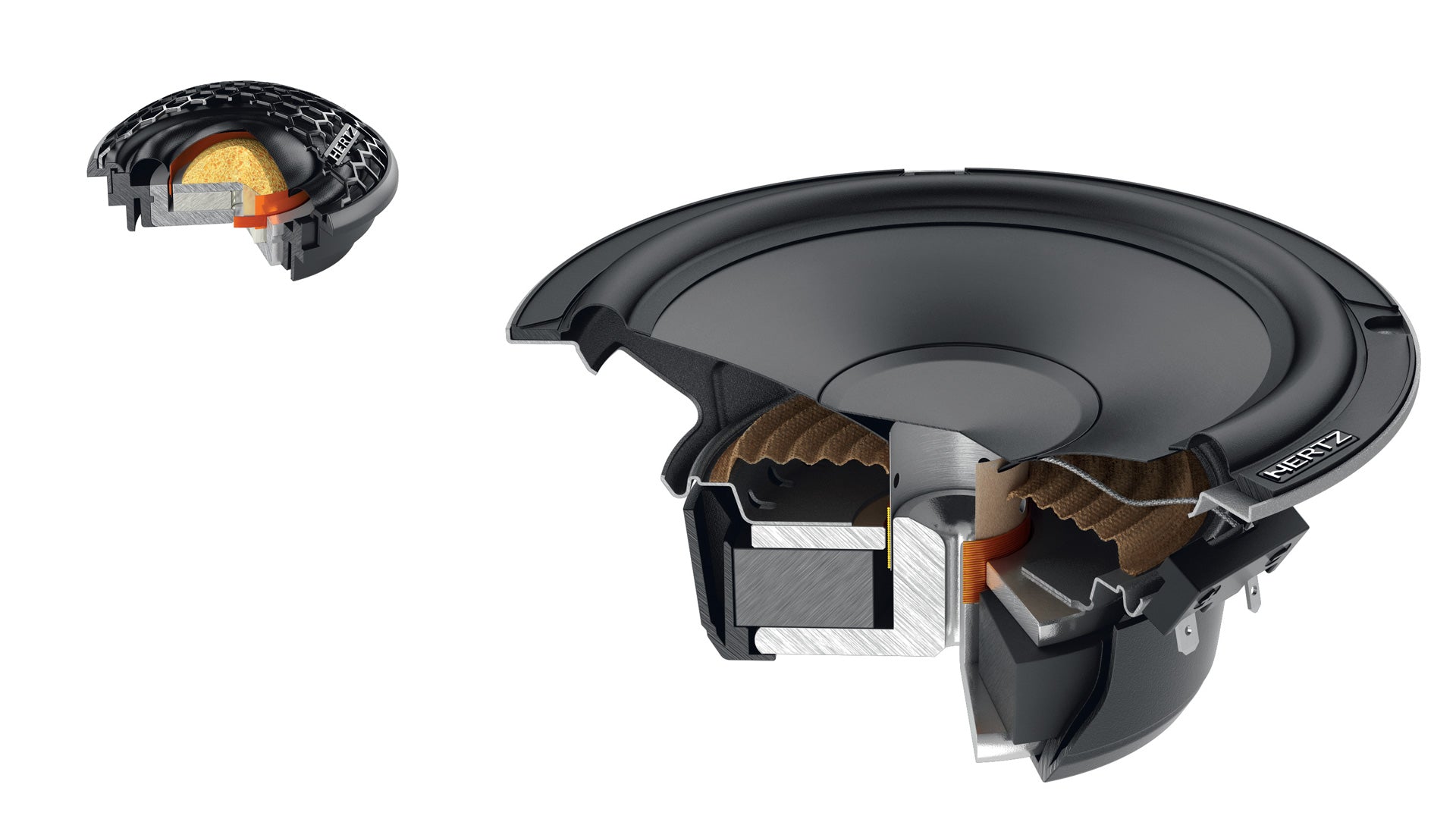

Two-way systems Cento CK 165 features the new C 26 tweeter featuring a 26 mm (1 in.) Tetolon® dome and 20 mm (0.8 in.) voice coil for a detailed and natural reproduction of medium-high frequencies. The R&D team worked extensively to optimize the C 26 dispersion characteristics to maximize performance on the listening point, with a natural and progressive roll-off and a natural timbre that favors frequency linearity. Much time was invested in the research of the perfect material for the C 165 woofer cones: through a long process of customization of the materials SPP-M was selected (Semi Pressed Paper-Mica), which preserves the natural sound of the semi-pressed paper and enhances it with Mica powder improving rigidity.
Component | System |
Size mm (in.) | 165 (6.5) |
Power Handling - Continuous W | 95 |
Power Handling - Peak W | 285 |
Impedance Ohm | 4 |
Tweeter diaphragm mm (in.) | 26 (1) |
Woofer Voice Coil Ø mm (in.) | 25 (1) |
Tweeter Voice Coil Ø mm (in.) | 20 (0.8) |
Sensitivity dB SPL | 93 |
Frequency Response Hz | 55 ÷ 22,5k |
Crossover Cut off | 2,5 kHz @ 12 dB Oct. |
Crossover Type | 2 Way Passive Crossover |
Weight of one component - Woofer | 0,96 (2.12) |
Weight of one component - Tweeter kg (lb) | 0,03 (0.07) |
Weight of one component - Crossover kg (lb) | 0,185 (0.41) |
D mm | 131,5 |
Re Ohm | 3,2 |
Fs Hz | 60 |
Le mH | 0,2 |
Vas I | 13,24 |
Mms g | 13,9 |
Cms mm/N | 0,51 |
BL T*m | 4,9 |
Qts | 0,59 |
Qes | 0,69 |
Qms | 3,9 |
Spl dB | 93 |
