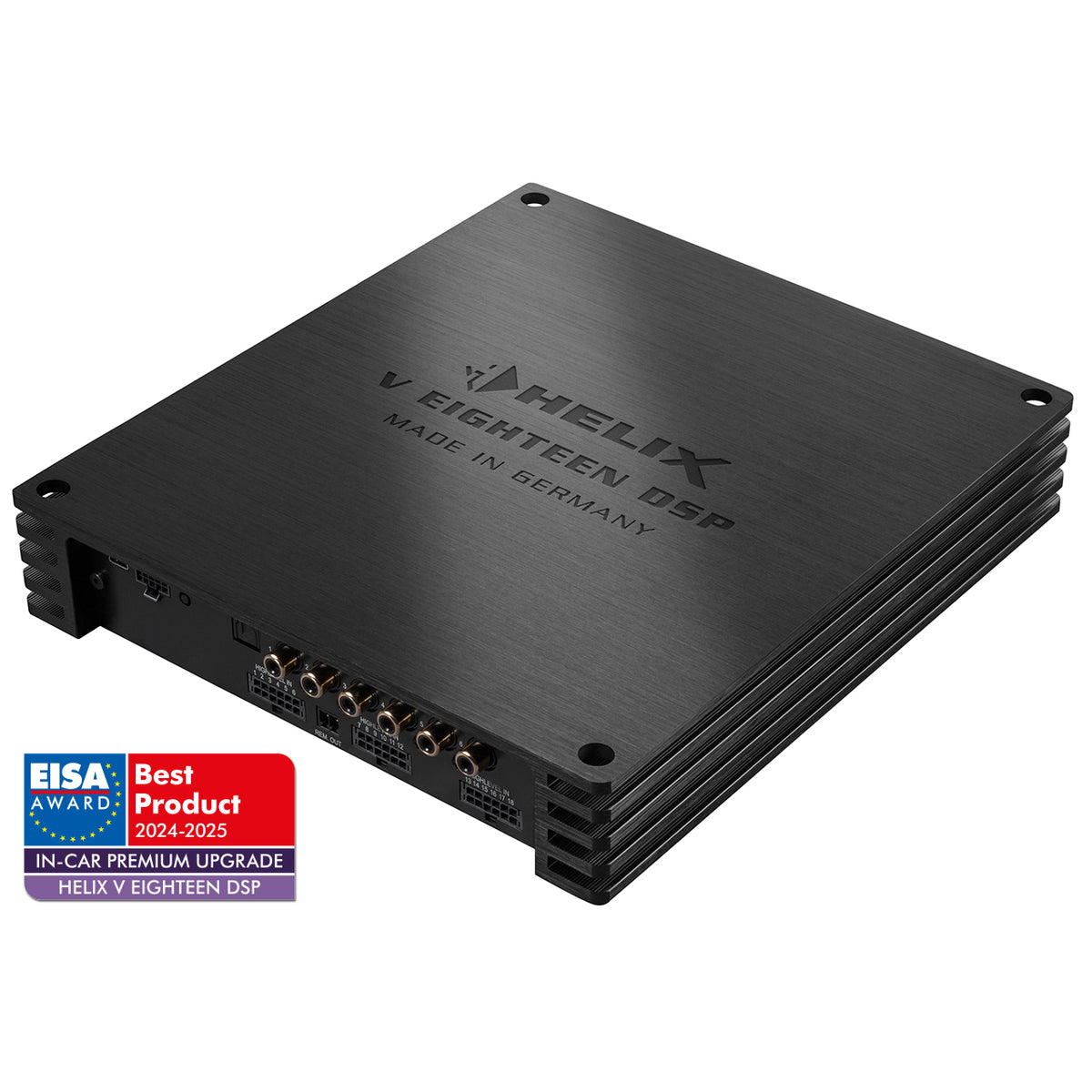

HELIX V EIGHTEEN DSP

18 CHANNEL AMPLIFIER WITH 20 CHANNEL DSP

The HELIX V EIGHTEEN DSP is a premium all in one amplifier and DSP designed for complex factory audio upgrades and high end aftermarket sound systems.

It combines 18 powered amplifier channels, 18 high level inputs and 20 DSP channels in one compact unit, giving installers huge flexibility without needing multiple amplifiers and processors.

🟡 18 CHANNEL AMPLIFIER

🟡 20 CHANNEL DSP

🟡 18 HIGH LEVEL INPUTS

🟡 UP TO 160W RMS PER CHANNEL

🟡 64 BIT TWIN DSP PROCESSING

BUILT FOR MODERN FACTORY AUDIO

Modern vehicles can have complicated factory amplifiers, multiple speaker channels and built in signal processing.

The HELIX V EIGHTEEN DSP is designed to integrate with these systems while giving the installer full control over the final sound.

Its 18 high level inputs can accept signals up to 32V RMS, making it suitable for many powerful factory amplified systems.

🟡 IDEAL FOR OEM PREMIUM SOUND SYSTEM UPGRADES

20 CHANNEL DSP CONTROL

The V EIGHTEEN DSP gives you control over 20 individual DSP channels.

This allows precise adjustment of:

Crossovers

Equalisation

Time alignment

Speaker levels

Signal routing

Subwoofer integration

Centre channel control

This means every speaker can be tuned to work properly together instead of simply adding more power.

POWERFUL TWIN DSP PROCESSING

Inside are two 64 Bit audio processors capable of approximately 2.4 billion operations per second.

That processing power allows the V EIGHTEEN DSP to manage complex signal routing and advanced tuning features across all 20 channels.

🟡 SERIOUS PROCESSING POWER FOR SERIOUS AUDIO SYSTEMS

PURE CLASS GD AMPLIFICATION

HELIX uses its Pure Class GD amplifier technology to combine strong output with high efficiency and reduced heat generation.

This helps HELIX fit 18 amplifier channels into a compact chassis while maintaining excellent sound quality.

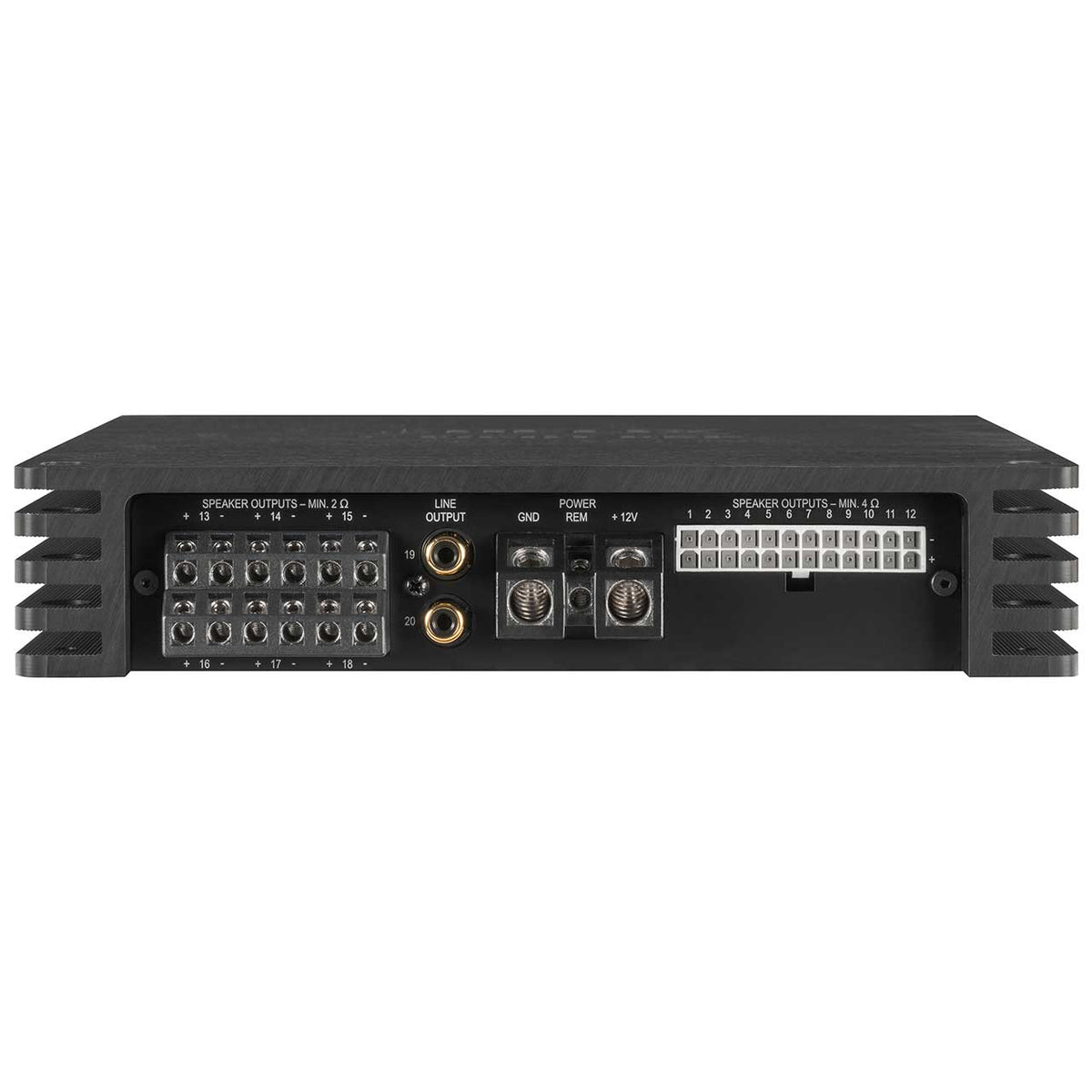

POWER OUTPUT

Channels 1 to 12

70W RMS per channel at 4 Ohms

Up to 100W RMS per channel at 3 Ohms

Channels 13 to 18

75W RMS per channel at 4 Ohms

120W RMS per channel at 2 Ohms

Up to 160W RMS per channel at 2 Ohms in typical multichannel applications.

ADVANCED OEM INTEGRATION

The V EIGHTEEN DSP includes ADEP.3, designed to help integrate with modern factory radios and amplifiers that monitor their original speakers.

This helps reduce compatibility issues that can occur when replacing or modifying factory audio systems.

🟡 BETTER FACTORY INTEGRATION

🟡 LESS RISK OF OEM AUDIO ERRORS

VIRTUAL CHANNEL PROCESSING

HELIX Virtual Channel Processing gives installers much more flexibility when combining and routing factory signals.

This is especially useful in complex systems where multiple factory channels need to be combined and then redistributed to aftermarket speakers.

TUNEEQ AUTOMATIC TUNING

HELIX DSP PC Tool 5 includes TuneEQ, which can automatically correct frequency response using a compatible measurement microphone.

This can make the tuning process faster while still allowing detailed manual adjustment.

REALCENTER AND BASS PROCESSING

The V EIGHTEEN DSP also includes advanced HELIX processing features such as:

RealCenter

Creates a more natural centre channel and wider front soundstage.

Augmented Bass Processing

Helps improve bass response using Dynamic Bass Enhancement and SubXpander processing.

🟡 BUILT FOR SOUND QUALITY, NOT JUST POWER

SYSTEM EXPANSION

The built in HEC expansion slot allows additional compatible modules to be added.

This can include options such as:

Bluetooth HD Audio Streaming

High Resolution USB Audio Streaming

The Smart Control Port also supports compatible HELIX remote controls including the CONDUCTOR and DIRECTOR.

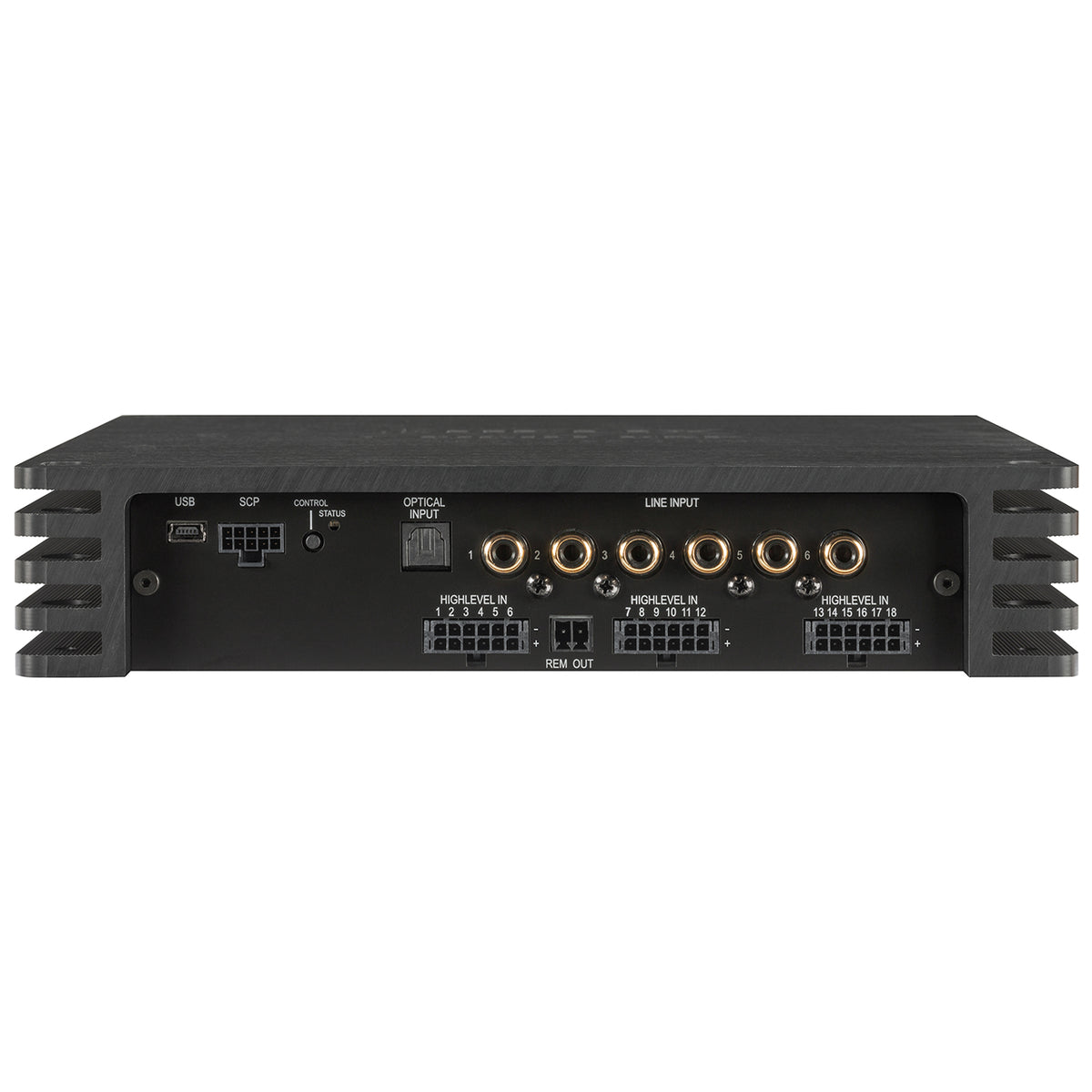

KEY FEATURES

🟡 18 Channel Pure Class GD Amplifier

🟡 20 Channel DSP

🟡 18 High Level Inputs

🟡 6 RCA Inputs

🟡 Optical SPDIF Input

🟡 64 Bit Twin DSP

🟡 2.4 Billion DSP Operations Per Second

🟡 ADEP.3 Factory Integration

🟡 Virtual Channel Processing

🟡 TuneEQ

🟡 RealCenter

🟡 Augmented Bass Processing

🟡 10 Sound Setup Memory Locations

🟡 HEC Expansion Slot

🟡 Smart Control Port

TECHNICAL SPECIFICATIONS

Amplifier Technology: Pure Class GD

DSP Channels: 20

Amplifier Channels: 18

High Level Inputs: 18

RCA Inputs: 6

RCA Outputs: 2

Optical Input: SPDIF

DSP Resolution: 64 Bit

Sampling Rate: 48 kHz

Frequency Response: 20 Hz to 22,000 Hz

RCA Output Voltage: 3V

Operating Voltage: 10.5V to 18V

Fuse: 3 x 30A

Dimensions: 44 x 255 x 220 mm

WHAT IS INCLUDED

1 x HELIX V EIGHTEEN DSP

4 x Speaker Connection Cables

1 x USB Cable

2 x Allen Keys

Mounting Hardware

Instruction Manual

PERFECT FOR

Premium factory audio upgrades

High end sound quality builds

Complex active speaker systems

Luxury vehicle audio upgrades

Factory amplified systems

Multi speaker systems

Professional DSP tuned installations

🟡 18 AMPLIFIED CHANNELS. 20 DSP CHANNELS. ONE SERIOUSLY CAPABLE AUDIO PLATFORM.
