HELIX DSP ULTRA S 12 CHANNEL HIGH RESOLUTION DSP FOR PREMIUM CAR AUDIO SYSTEMS

The HELIX DSP ULTRA S is designed for serious sound quality systems where precise tuning, clean signal processing and advanced factory integration matter.

Made in Germany, it combines 12 processed output channels, TwinDSP 64 Bit processing, 96 kHz sampling, 32 Bit AKM converters and up to 8V RCA output in a compact processor.

🟡 12 CHANNEL DSP

🟡 64 BIT TWIN DSP PROCESSING

🟡 96 KHZ SAMPLING RATE

🟡 8V RCA OUTPUTS

🟡 MADE IN GERMANY

BUILT FOR SERIOUS SOUND QUALITY

The DSP ULTRA S uses a newly developed audio signal path with AKM Velvet Sound 32 Bit AD and DA converters and premium TI BurrBrown operational amplifiers.

The goal is simple:

Extremely low distortion, excellent clarity and highly detailed sound reproduction.

This makes it ideal for high end car audio systems where the quality of the source and tuning matter just as much as the speakers and amplifiers.

TWIN DSP POWER

Inside the DSP ULTRA S are two powerful 64 Bit audio processors delivering approximately 2.4 billion MAC operations per second.

The processor manages:

8 Input Channels

8 Virtual Channels

12 Output Channels

all at a 96 kHz sampling rate.

🟡 SERIOUS PROCESSING POWER FOR COMPLEX AUDIO SYSTEMS

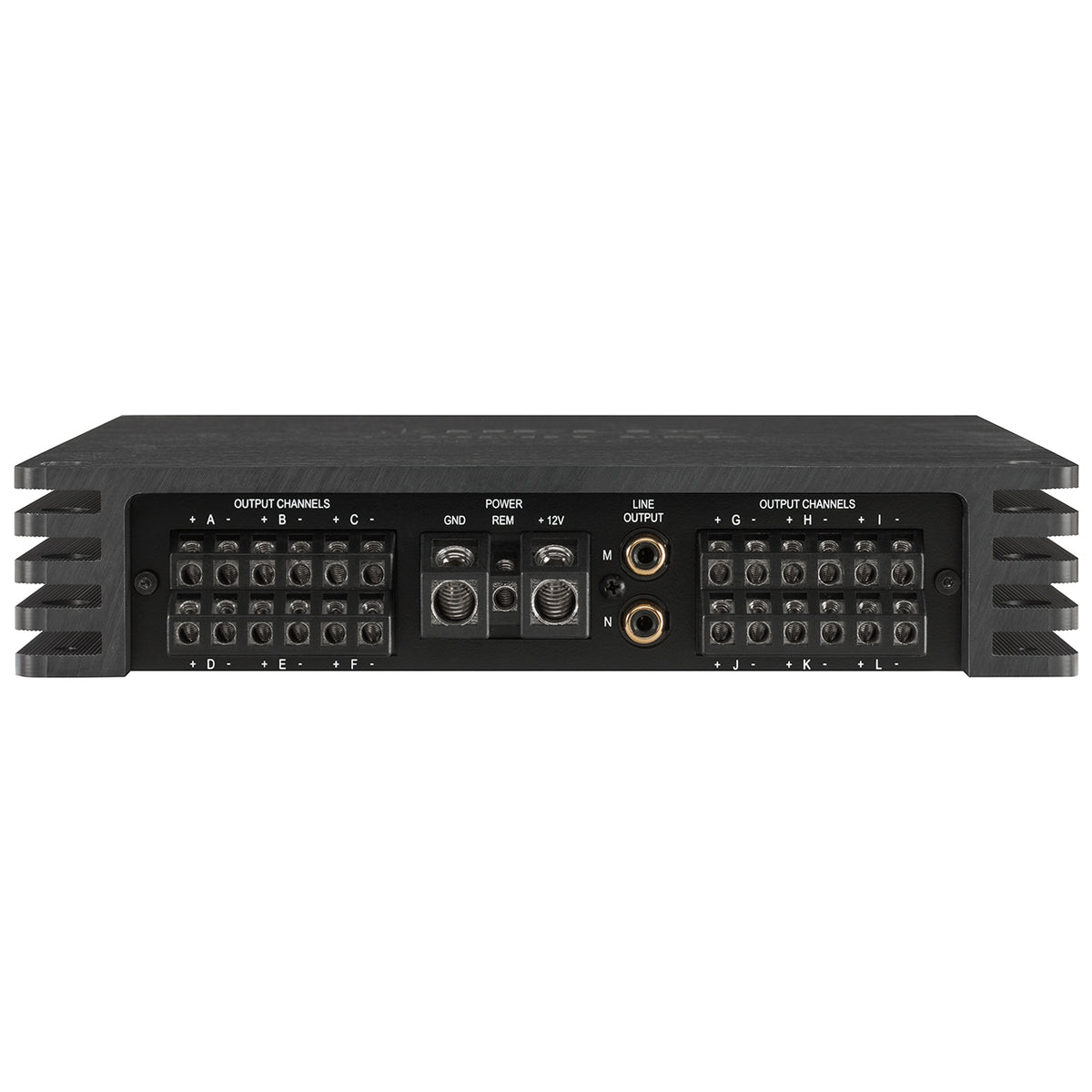

12 CHANNEL OUTPUT CONTROL

With 12 RCA outputs, the DSP ULTRA S gives you enough processing capability for advanced active systems.

Possible system configurations can include:

• Tweeters

• Midrange speakers

• Midbass speakers

• Centre channel

• Rear speakers

• Subwoofers

• Multiple amplifier systems

Every output can be independently processed and tuned through HELIX DSP PC Tool 5.

BUILT FOR FACTORY AUDIO INTEGRATION

Modern factory systems can be difficult to upgrade because they often include factory amplifiers, equalisation and multiple processed speaker signals.

The DSP ULTRA S includes 8 high level inputs with ADEP.3 integration technology and supports high level signals from 4V up to 32V.

It also supports RCA input sensitivity from 1V to 8V.

🟡 IDEAL FOR PREMIUM FACTORY AUDIO UPGRADES

VIRTUAL CHANNEL PROCESSING

HELIX Virtual Channel Processing gives installers much greater freedom when routing and combining signals.

This is especially useful when multiple factory channels need to be combined, corrected and then redistributed into a completely new active sound system.

The result is more control over the final system instead of being limited by the factory signal layout.

TUNEEQ

HELIX TuneEQ can automatically assist with frequency response correction when used with a suitable measurement microphone.

It can adjust the parametric equalisation toward a selected reference curve, helping make professional system tuning faster and more precise.

REALCENTER

RealCenter creates a dedicated centre channel using information from the left and right front channels.

Unlike simple centre channel summing, HELIX dynamically controls the centre information according to the stereo content.

This can help create a wider and more stable front soundstage for both the driver and passenger.

AUGMENTED BASS PROCESSING

The DSP ULTRA S includes HELIX Augmented Bass Processing, including:

Dynamic Bass Enhancement

SubXpander

These features are designed to improve bass response and low frequency impact while still maintaining control of the system.

10 SOUND SETUPS

The powerful 32 Bit ACO platform allows fast switching between up to 10 different sound setups.

You could have different tuning profiles for:

• Driver focused listening

• Driver and passenger

• Sound quality

• Higher output

• Different music preferences

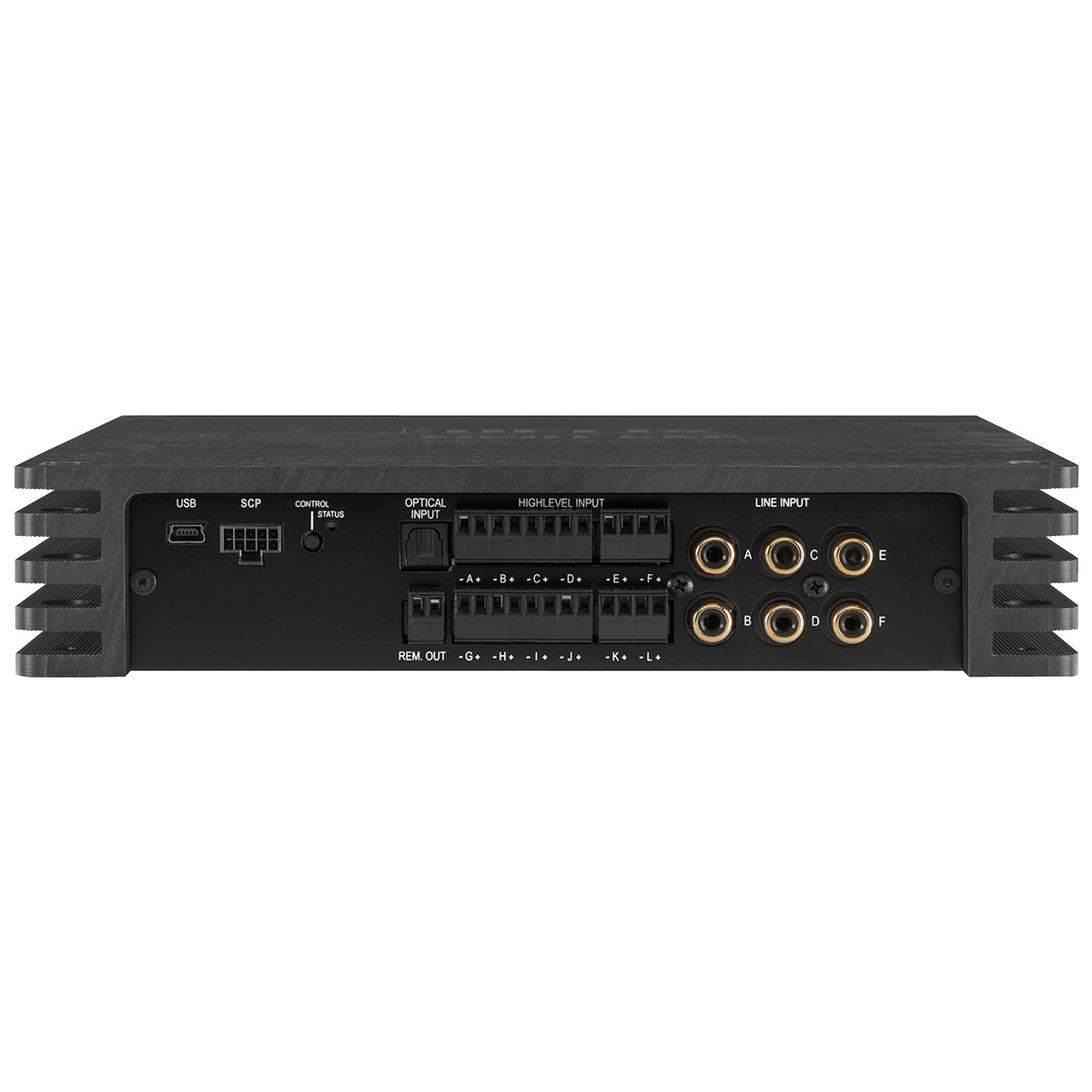

HIGH LEVEL CONNECTIVITY

The DSP ULTRA S provides extensive connection options:

🟡 8 RCA INPUTS

🟡 8 HIGH LEVEL INPUTS

🟡 1 OPTICAL SPDIF INPUT

🟡 1 COAXIAL SPDIF INPUT

🟡 12 RCA OUTPUTS

🟡 8V MAXIMUM OUTPUT VOLTAGE

This gives installers excellent flexibility when integrating both aftermarket and factory audio sources.

HEC EXPANSION SLOT

The built in HEC slot allows compatible expansion modules to be added to the system.

Options can include features such as:

Bluetooth HD Audio Streaming

High Resolution USB Audio Streaming

The Smart Control Port also supports compatible HELIX remote controls and accessories.

KEY FEATURES

🟡 12 Channel DSP

🟡 Twin 64 Bit DSP Processors

🟡 2.4 Billion MAC Operations Per Second

🟡 96 kHz Sampling Rate

🟡 32 Bit AKM AD and DA Converters

🟡 12 RCA Outputs

🟡 8V Maximum Output Voltage

🟡 8 RCA Inputs

🟡 8 High Level Inputs

🟡 Optical SPDIF Input

🟡 Coaxial SPDIF Input

🟡 ADEP.3 Factory Integration

🟡 Virtual Channel Processing

🟡 TuneEQ

🟡 RealCenter

🟡 Augmented Bass Processing

🟡 10 Sound Setup Memories

🟡 HEC Expansion Slot

🟡 Smart Control Port

🟡 Made in Germany

TECHNICAL SPECIFICATIONS

Inputs: 8 RCA, 8 High Level, 1 Optical SPDIF, 1 Coaxial SPDIF, 1 Remote Input

RCA Input Sensitivity: 1V to 8V

High Level Input Sensitivity: 4V to 32V

Outputs: 12 RCA and 1 Remote Output

Maximum RCA Output: 8V

Frequency Response: 10 Hz to 44,000 Hz

DSP Resolution: 64 Bit

DSP Power: 2 x 295 MHz

Processing Power: 2.4 Billion MAC Operations Per Second

Sampling Rate: 96 kHz

Converters: AKM 32 Bit AD and DA

Digital Signal to Noise Ratio: 117 dB

Analog Signal to Noise Ratio: 111 dB

Digital THD+N: Less than 0.0004%

Analog THD+N: Less than 0.0008%

Operating Voltage: 9.6V to 17V

Operating Temperature: Minus 40°C to Plus 70°C

Dimensions: 40 x 177 x 170 mm

WHAT IS INCLUDED

1 x HELIX DSP ULTRA S

1 x USB Cable

1 x Mounting Hardware Set

1 x Instruction Manual

PERFECT FOR

High end sound quality systems

Premium factory audio upgrades

Fully active speaker systems

Multi amplifier installations

Complex OEM integration

Audiophile car audio builds

Professional DSP tuned systems
