SPECIFICATIONS
4 Channel (14.4v)-RMS Power Output:
- 120w x 4 @ 4 Ω stereo
- 175w x 4 @ 2 Ω stereo
2 Channel Bridged Mode (14.4v):
- 350w x 2 @ 4 Ω -RMS Power Output
- SNR: 91dB (A-weighted, 20 Hz – 20 kHz)
- Operating Voltage: 9v – 16v
- Current Draw (Music): 50 A
- Current Draw (Max): 80 A
- Recommended Fuse (Music): 50 A
- Total Efficiency: 80%
- Frequency response 20 Hz – 20 kHz +/- 3 dB
- Damping Factor: 200
- Crossover LPF/FULL/HPF: 20 – 20kHz
- Slope: 6/12/24/48 dB per octave
- Gain: 0.2 V – 12 V
- Turn-On Configuration: REM/DC/VOX
- THD + N (10% Rated Power): 0.1% @ 2 Ω per channel

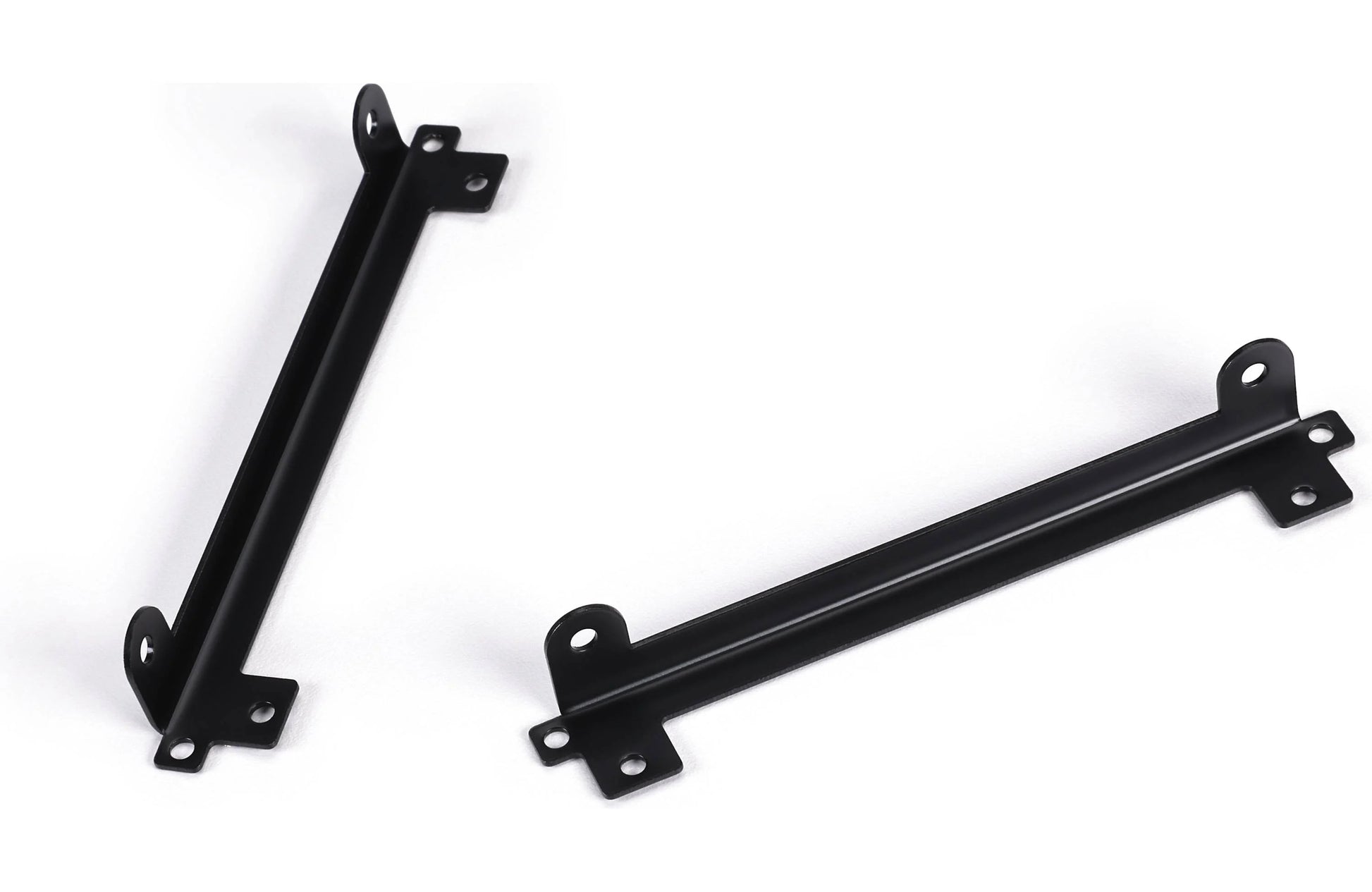

- Dimensions (Mounting Brackets): 5.3 x 4.9 x 2.0-inch, 134 x 125 x 51mm
- Dimensions (Chassis): 4.1 x 4.9 x 2.0-inch, 104 x 125 x 51mm
