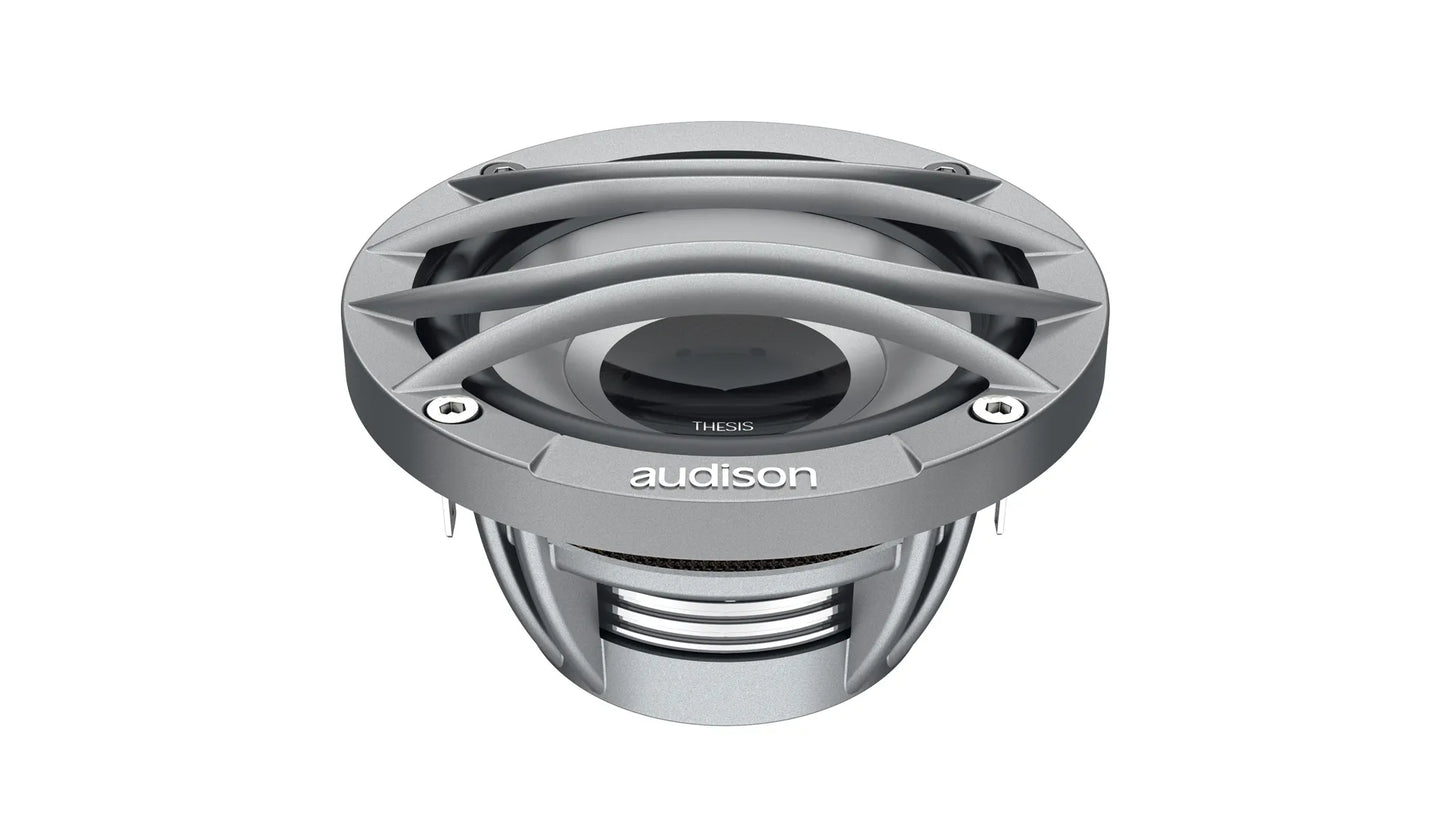

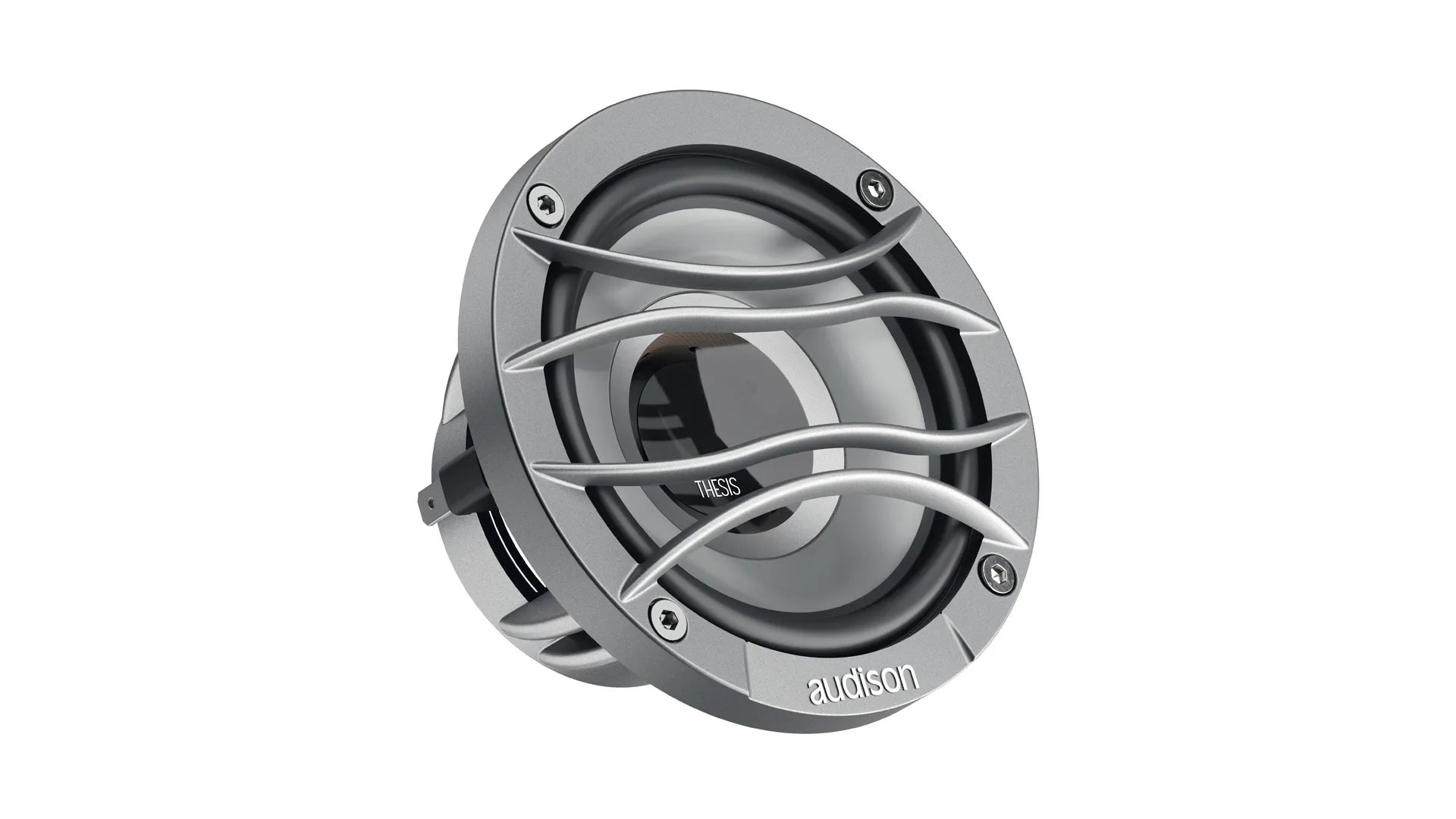

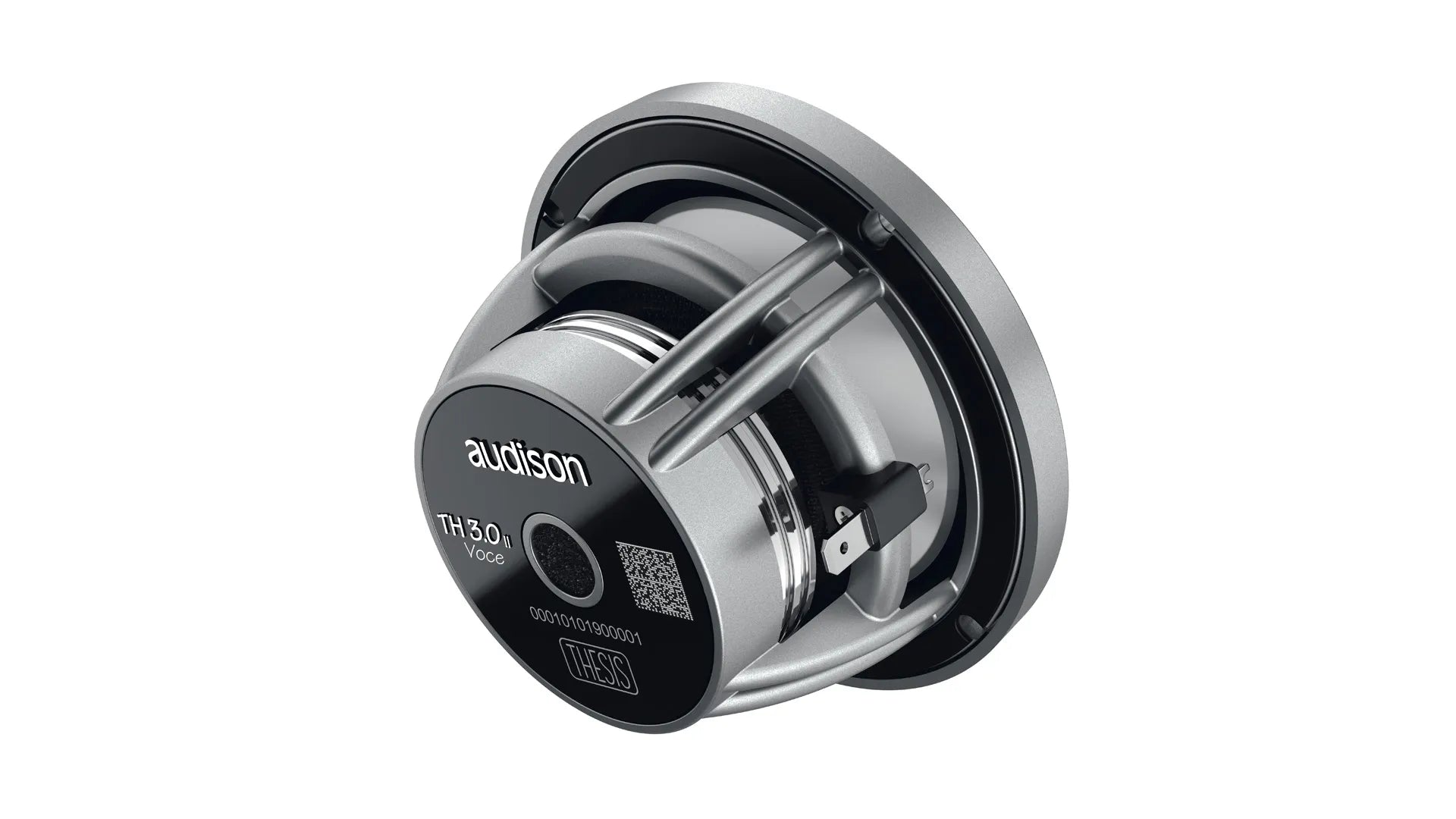

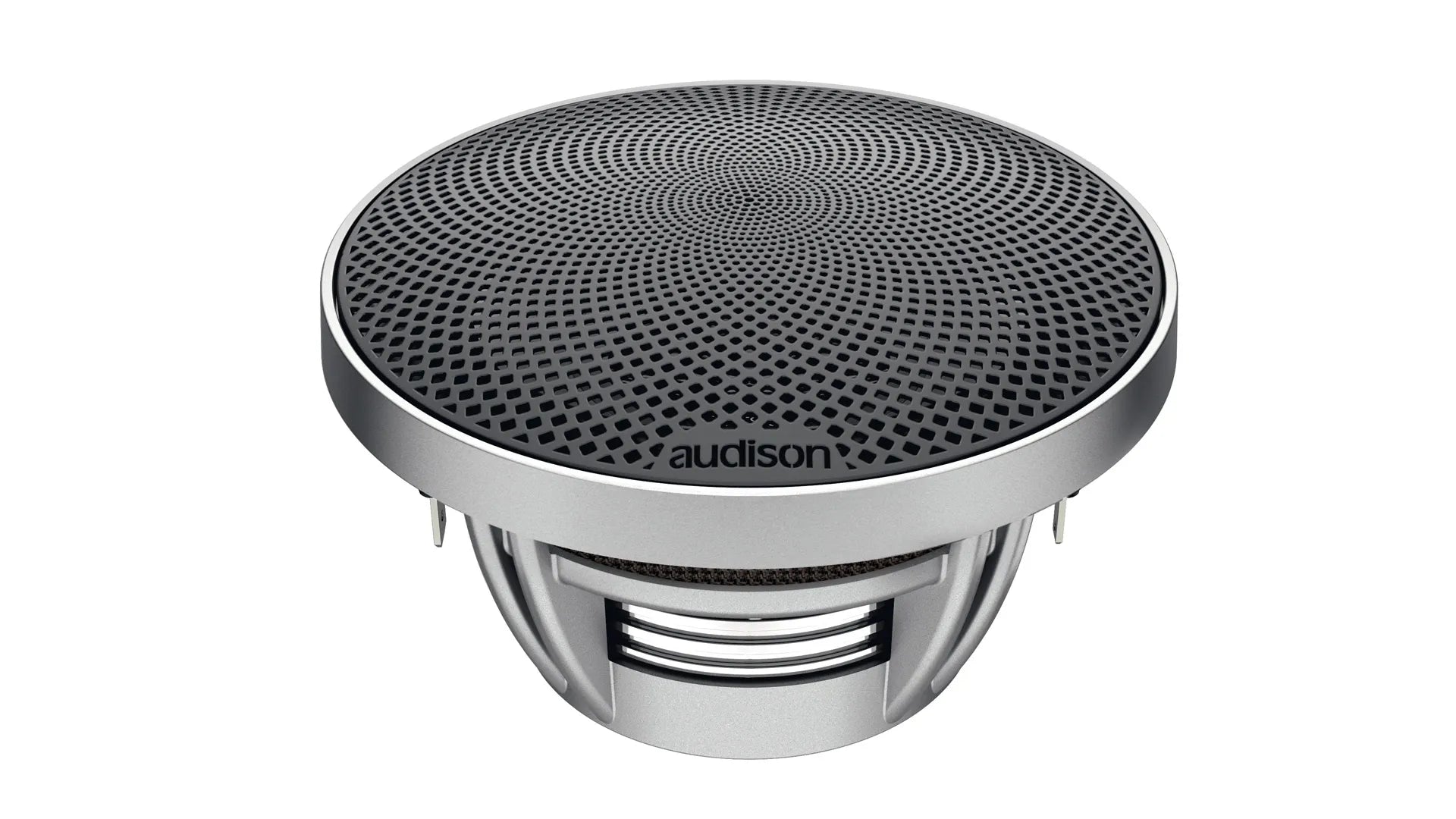

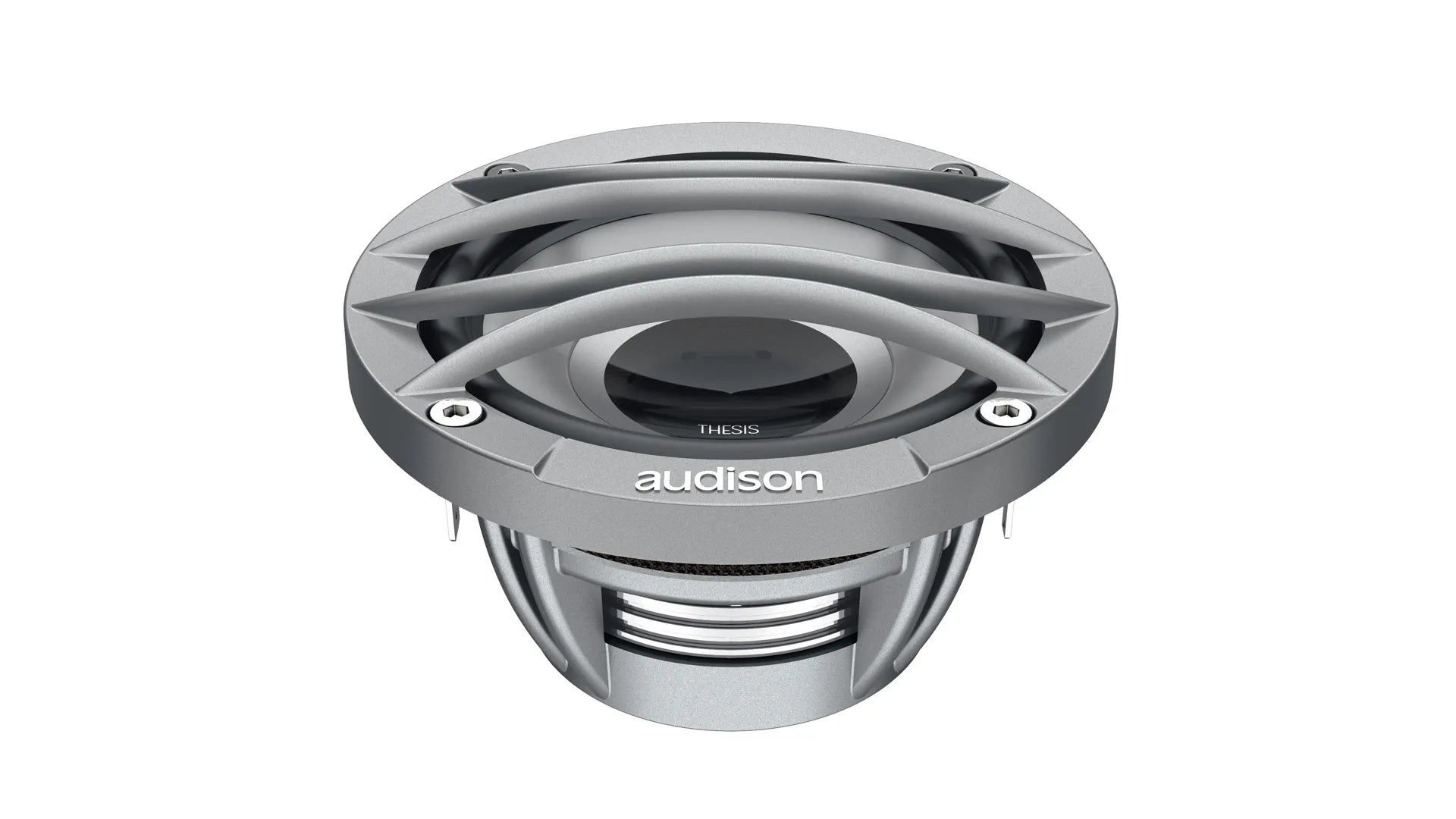

Audison TH 3.0 II voce Mid Range 3inch | 4 ohm

Audison TH 3.0 II voce Mid Range 3inch | 4 ohm

Regular price $2,800.00
Regular price Sale price $2,800.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
Quantity
The human auditory system processes the range of medium frequencies with maximum sensitivity and selectivity because it makes the voice intelligible from the rest of the audio spectrum.The R & amp;D team started from this simple principle to design from scratch the TH 3.0 II VOCE, dedicated to this fundamental range of frequencies, with the simple as well as ambitious target of extreme linearity, in order not to add or hide anything of the signal reproduced, enhancing in this way every nuance.ULTRA HIGH CONTROLThe extremely powerful custom N38 H-grade Neodymium magnet ensures unmatched control of the mobile group and the aluminium ring nullifies the intermodulation distortion otherwise generated at peak excursions.EXTREME LINEARITYThrough finite element simulation (FEM) the Audison R & amp;D team has optimized the break-up point between cone/surround, obtaining an ultra-linear frequency response in the mid-range.The generous 30 mm CCAR (Copper Clad Aluminum Ribbon) voice coil wound with flat wire gives the TH 3.0 II Voce an extraordinary excursion and minimizes at the same time the cone non-linearity.TPX® CONETH 3 II Voce membrane is made of TPX®, a transparent material that ensures frequency response linearity leaving the speaker interior in full view.

Technical Specs

Nominal diameter 70 mm (3 in)
Impedance 4 Ohm
Power Handling - Peak 110 W
Power Handling - Continuous 55 W
Sensitivity 85.6 dB
Frequency Response 110 ÷ 5700 Hz
Voice Coil Ø 30.5 mm
Magnet Material SPECIAL NEODYMIUM N38H
Magnet size D x d x h 29 x 6 x 8 mm (in.)
Voice Coil Material CCAP - COPPER CLAD ALUMINIUM RIBBON
Xmax 3.3 mm (0.13 in)

Electric-acoustic Specs

Re 3.4 Ohm
Fs 100 Hz
Le 0.18 mH
Vas 1.01 l (0.036 ft)
Mms 4.3 g (0.152 oz)
Cms 0.59 mm/N
BL 4.2 T•m
Qts 0.48
Qes 0,52
Qms 5.5

General

Weight 0.25 kg

Dimensions

TH 3.0 II voce
Dimension A 84 mm (3.31 in)
Dimension B 73.5 mm (2.89 in)
Dimension C 45 mm (1.77 in)
Dimension D 37 mm (1.46 in)
Dimension E 89 mm
Dimension F 18
