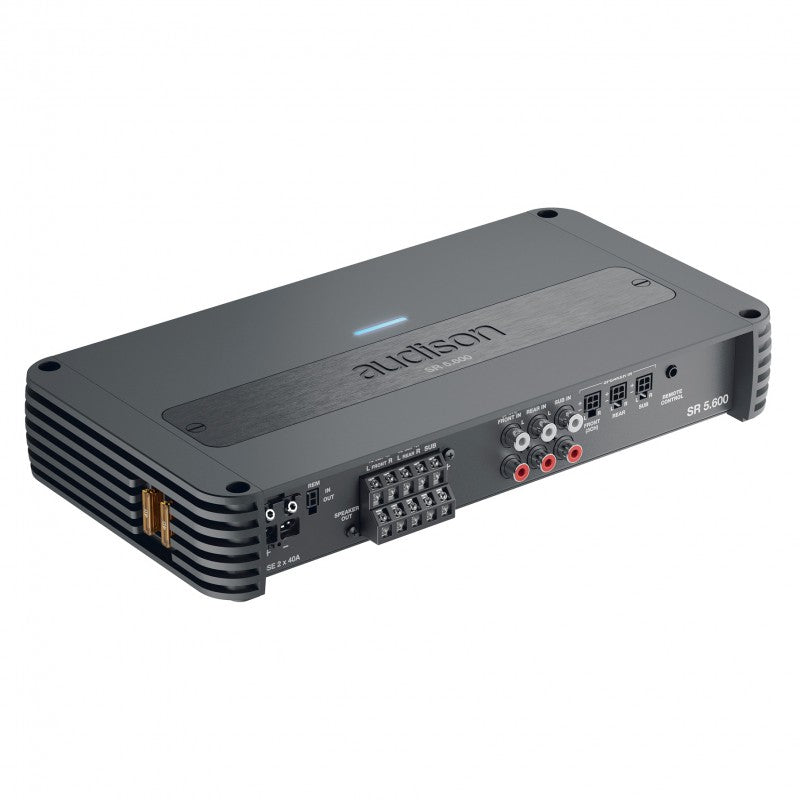

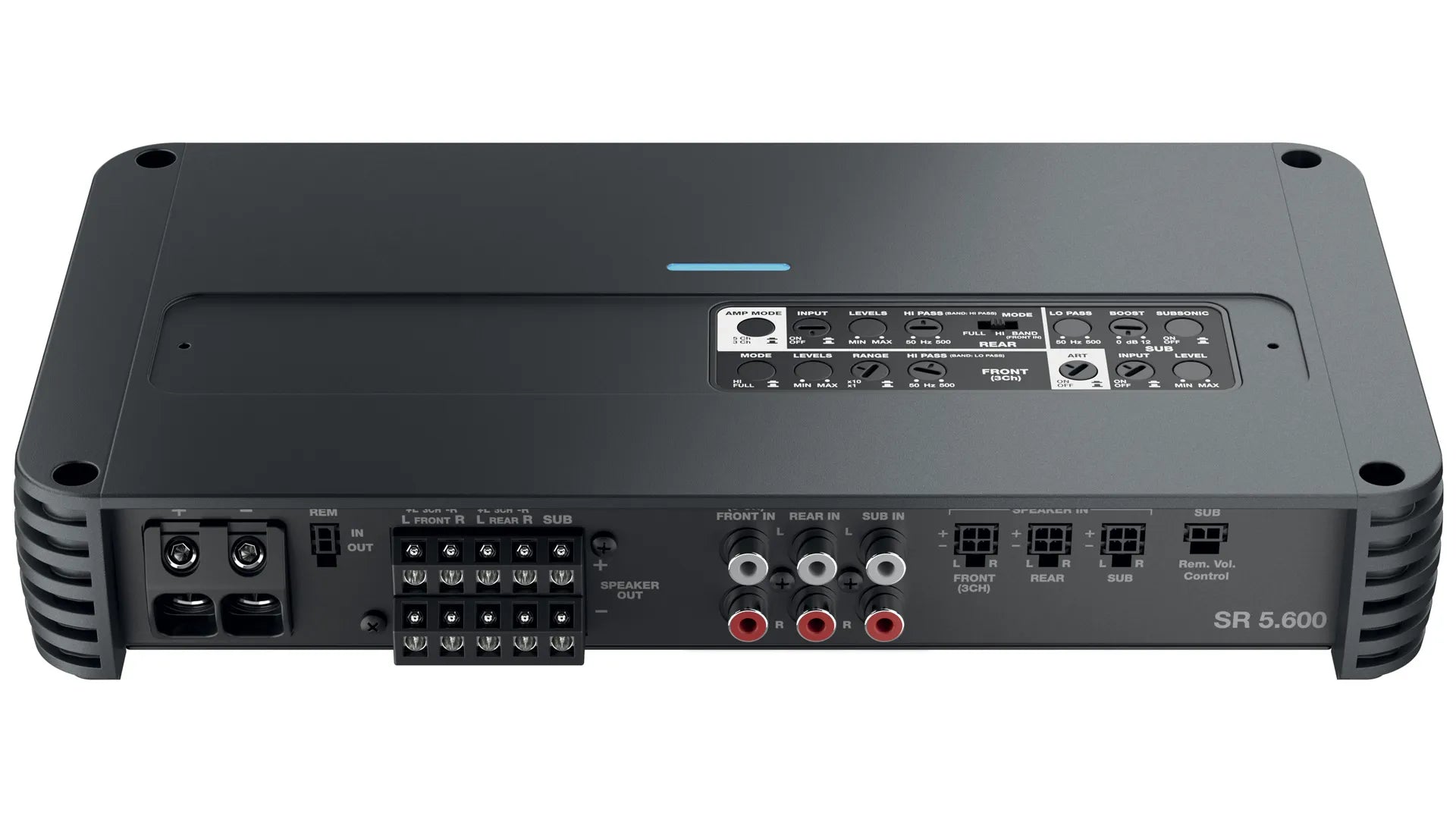

AUDISON SR5600 Amplifier 5 CH
AUDISON SR5600 Amplifier 5 CH
Regular price
$1,508.90
Regular price
Sale price
$1,508.90
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
SR 5.600Amplifier | 1010 W total power | 4 x 115 W + 1 x 550 W @ 2ohm | D-class
Amplifier Tech Data
| Channels | 5 |
| Class | D-Class |
| Hi Level Input | Yes |
| Low Level Input | Yes |
| Digital Input | No |
| Power supply voltage / fuse | 11 ÷ 15 VDC |
| Operating power supply voltage | 6.5 ÷17 VDC / 2 x 25A |
| Idling current | 2.2 A |
| Idling current when off | 0.04 mA |
| Consumption @ 14.4 VDC, 2Ω, Max Musical Power | 44 A |
| Remote OUT | 6.5 ÷ 15 VDC (150 mA) |
| Remote IN | 6.5 ÷ 15 VDC (1 mA) |
| ART - Automatic Remote Turn on/off from OUTPUT BTL speakers (Selectable) | 1.5 ÷ 7 VDC |
Amplifier Stage
| Distortion - THD @ 100 Hz, 4Ω, 70% Rated Power | 0.02 % |
| Bandwidth A | 10 Hz ÷ 35 kHz; 10Hz ÷ 500Hz |
| S/N ratio A | 105 dBA |
| Damping factor A | 100 |
| Input sensitivity Pre-In | 0.2 ÷ 5 VRMS |
| Input sensitivity Speaker-In | 0.8 ÷ 20 VRMS |
| Total Power RMS | 1010 W |
| Minimum load impedance | 5Ch: 2Ω 3Ch: 4Ω + 4Ω + 2Ω |
| Output Power (RMS) @14.4 VDC, 1% THD | 5Ch 75 W x 4 + 330 W x 1 (4Ω) 5Ch 115 W x 4 + 550 W x 1 (2Ω) 3Ch 230 W x 2 (4Ω) + 310 W x 1 (4Ω) 3Ch 230 W x 2 (4Ω) + 550 W x 1 (2Ω) |
| Adjustable Crossover | Yes |
CEA Specifications
| Output power @ 4Ω, 1% THD+N, 14.4 V | Output power @ 4Ω, 1% THD+N, 14.4 V: 75 W x 4 Ch + 300 W x 1 Ch |
| SN ratio (ref. 1W output) | SN ratio (ref. 1W output): 75 W: 84 dBA – 300 W: 75 dBA |
Inputs
| Input Type | Pre-In / Speaker-In |
| Filters Outputs | - |
| Filter Pass A | Front Ch Filters: Full - Hi-pass: 50 ÷ 500 Hz @ 12 dB/Oct. (x1) - Hi-pass: 50 ÷ 5k Hz @ 12 dB/Oct. (x10) |
| Filter Pass B | Rear Ch Filters: Full Hi-pass: 50 ÷ 5k Hz @ 12 dB/Oct |
| Filter Pass C | Rear Ch Filters: Full Band-pass: 50 ÷ 500 Hz (Hi) @ 12 dB/Oct. |
| Channel Mono | Rear Ch Filters: Full 50 ÷ 5 kHz (Lo) @ 12 dB/Oct. |
| Inputs/Outputs Sub CH | Lo-pass: 50 ÷ 500 Hz @ 24 dB/Oct |
| Inputs/Outputs Phase | - |
| Inputs/Outputs Bass Boost | (0 ÷12) dB |
| Inputs/Outputs Subsonic | 25 Hz @ 24 dB/Oct |
| Remote Sub Volume | (-20 ÷ 6) dB |
Other
| Weight | 2.42 kg |
Dimensions
 |
|
| Dimension A | 294 mm |
| Dimension B | 264 mm |
| Dimension C | 155 mm |
| Dimension D | 135 mm |
| Dimension E | 47.5 mm |
