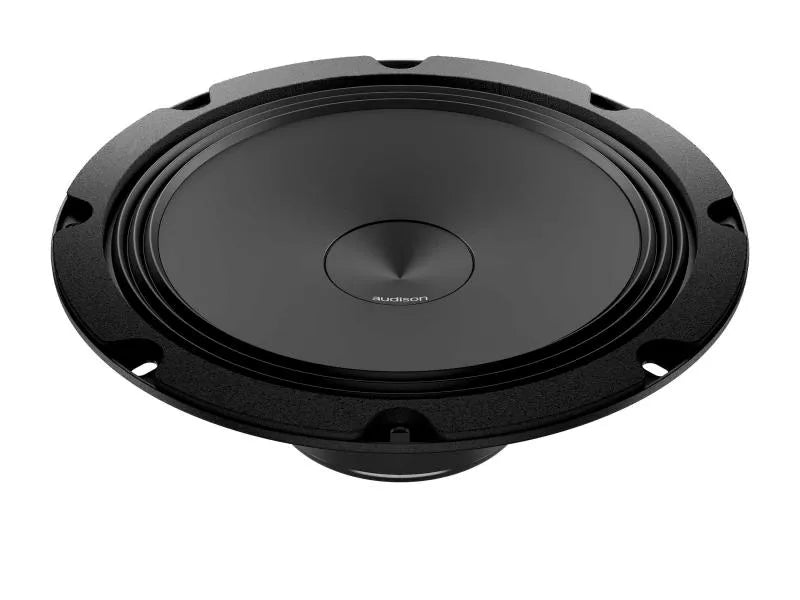

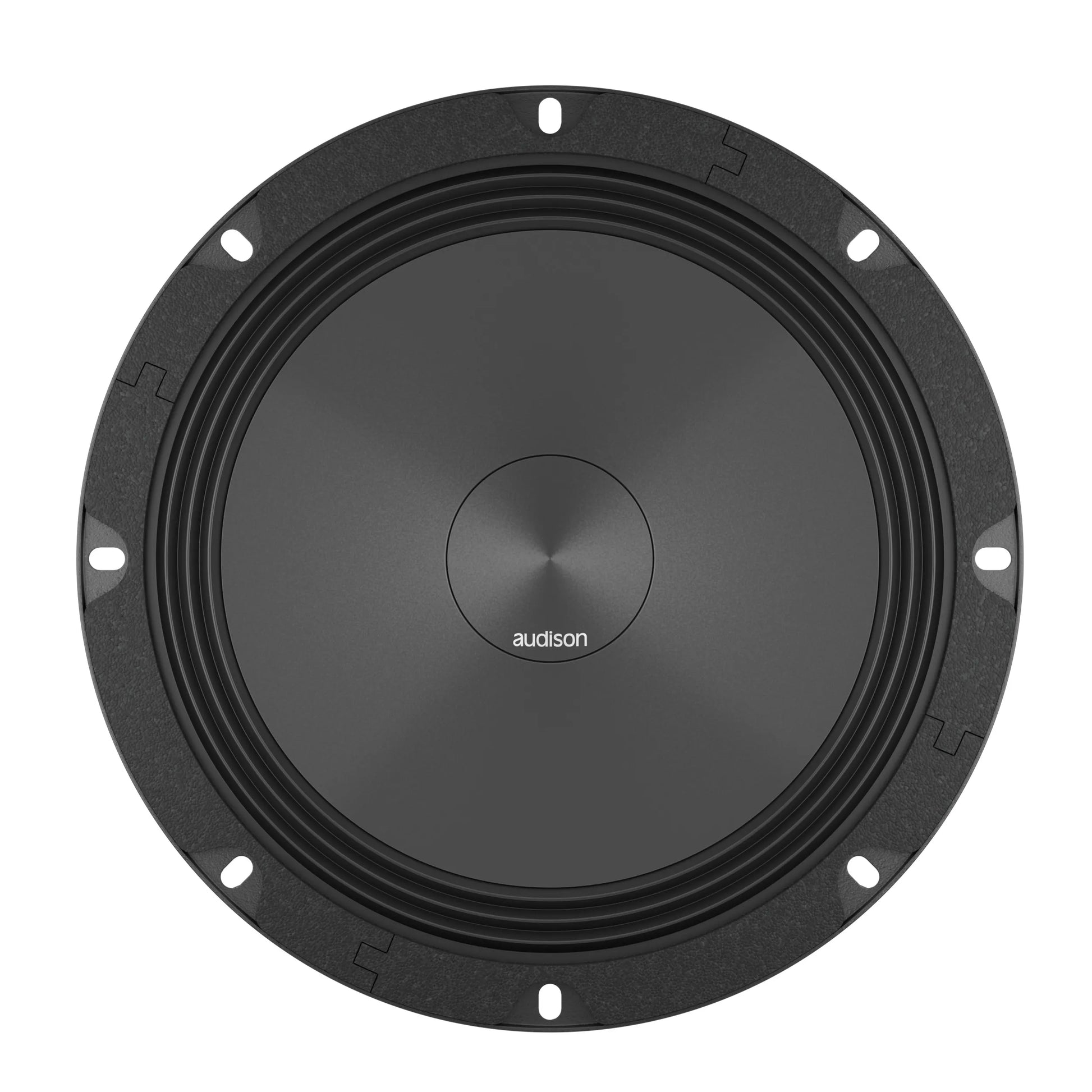

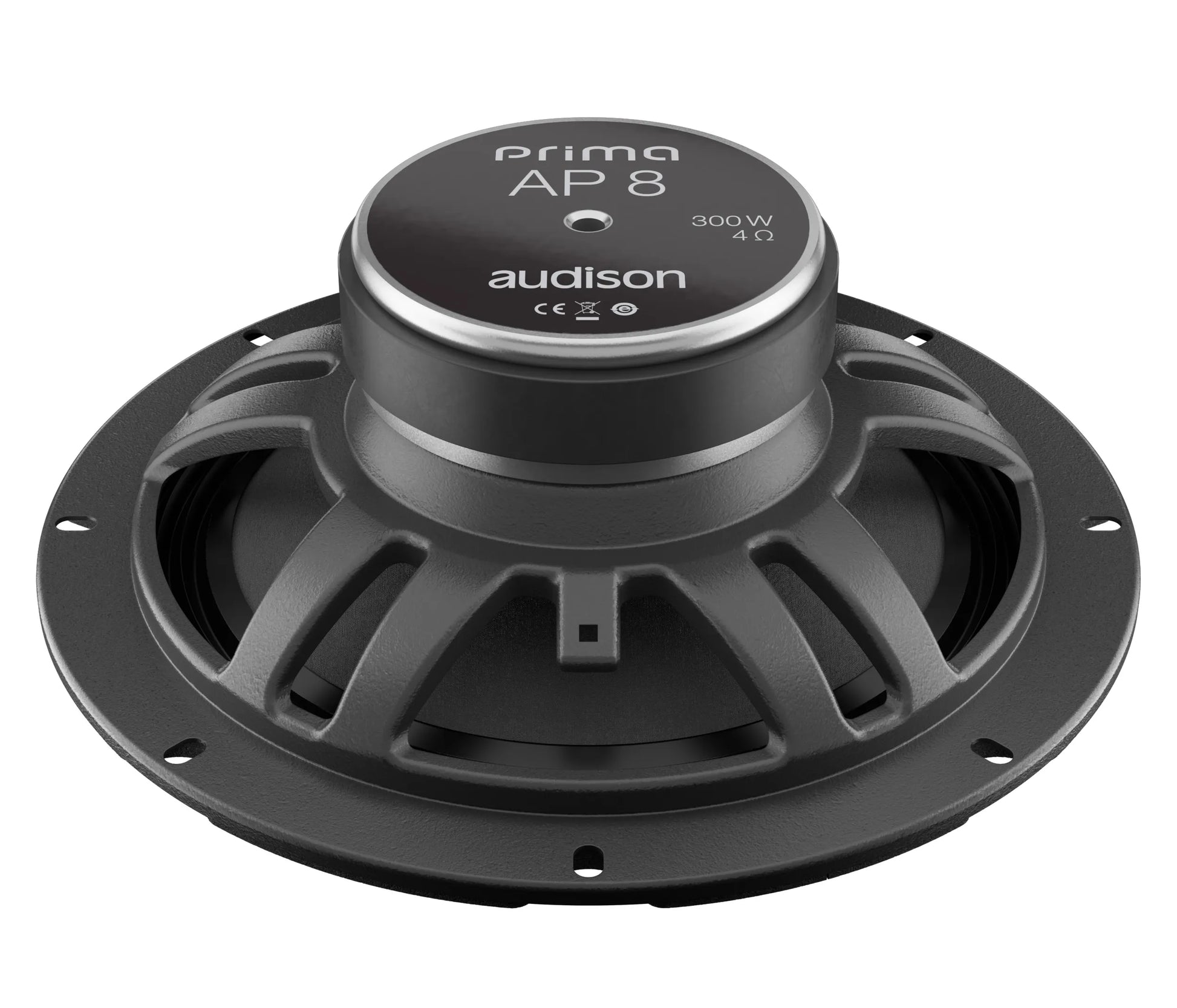

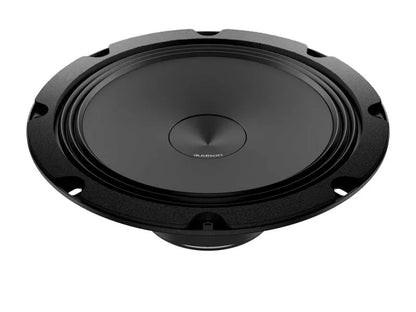

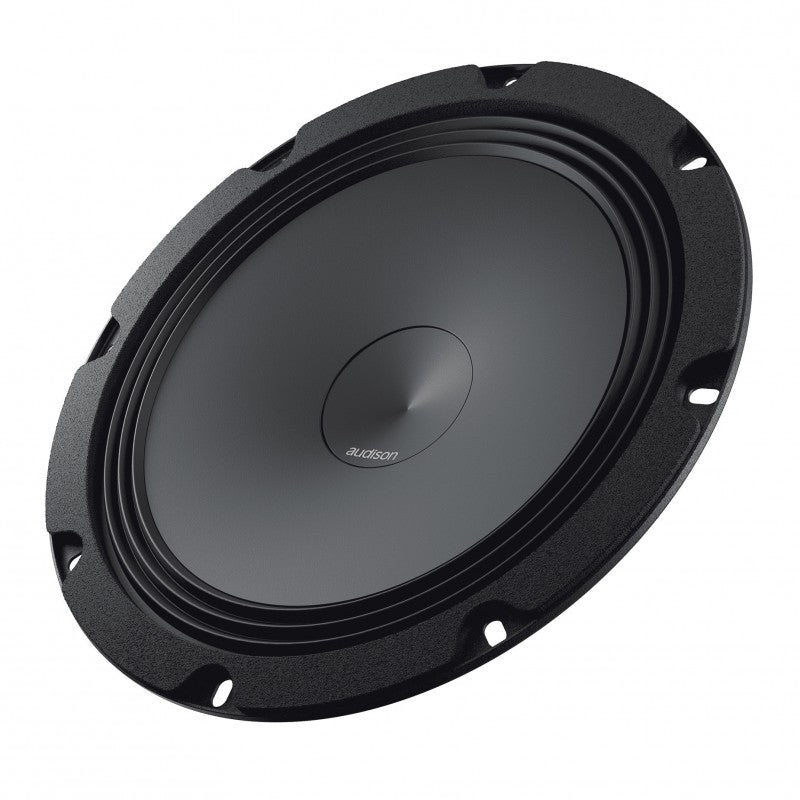

AUDISON AP8 Woofer | 300 W Peak Power | 200 mm | 4 ohm
AUDISON AP8 Woofer | 300 W Peak Power | 200 mm | 4 ohm
Regular price
$450.00
Regular price
Sale price
$450.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Features
- Water-repellent treated paper cone, featuring a profile developed
with FEM (Finite Element Method) simulation technology and
optimized with the Klippel Scan Vibrometer. - No passive crossover required to maximize efficiency: dome
profile optimized with Klippel R&D Scan Vibrometer to obtain a
calibrated mechanical low-pass cut-off frequency. - Reduced mounting depth, providing ease of installation in OEM
placements. - TPU (Thermoplastic Polyurethane) surround, featuring the exclusive
shallow “Triple Wave” profile, for maximum excursion linearity. - Compact basket, protected by abrasion-resistant and scratch-proof

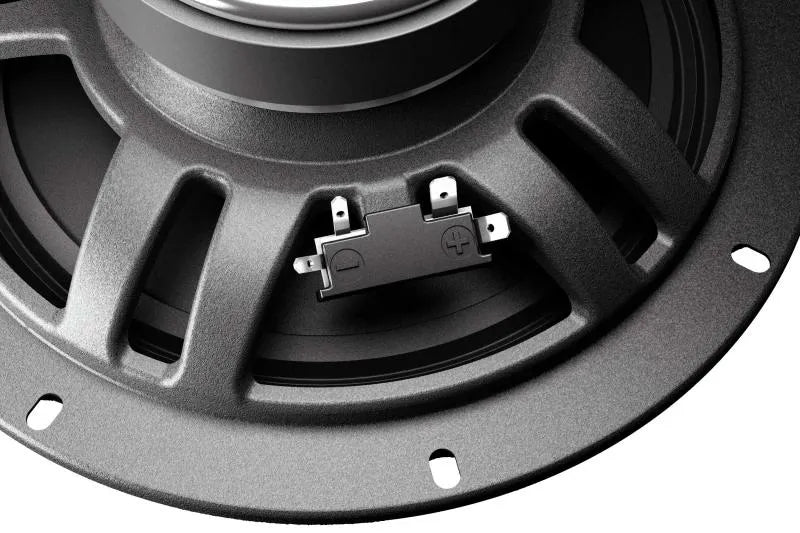

coating, the motor affixed with damping epoxy adhesive. - High current fast-on terminal with double contact on positive
and negative poles for high flexibility and quick connection. The
terminal features a temperature resistant plastic cover, protecting
it against accidental short circuits. - Developed with the KLIPPEL suite.
*Grille included
Technical Specs
| Nominal diameter | 200 mm (8 in) |
| Impedance | 4 Ohm |
| Power Handling - Peak | 300 W |
| Power Handling - Continuous | 100 W |
| Sensitivity | 93.5 dB |
| Frequency Response | 35 ÷ 3k Hz |
| Voice Coil Ø | 25 mm |
| Magnet Material | HIGH DENSITY FLUX FERRITE |
| Magnet size D x d x h | 90 x 40 x 17 mm (in.) |
| Xmax | 3.3 mm (0.13 in) |
Electric-acoustic Specs
| Re | 3.1 Ohm |
| Fs | 60 Hz |
| Le | 0.3 mH |
| Vas | 20 l (0.706 ft) |
| Mms | 19 g (0.67 oz) |
| Cms | 0.35 mm/N |
| BL | 5.4 T•m |
| Qts | 0.7 |
| Qes | 0,8 |
| Qms | 5 |
General
| Weight | 1.2 kg |
Dimensions
 |
|
| Dimension A | 209 mm (8.23 in) |
| Dimension B | 174 mm (6.85 in) |
| Dimension C | 70 mm (2.76 in) |
| Dimension D | 66 mm (2.6 in) |
