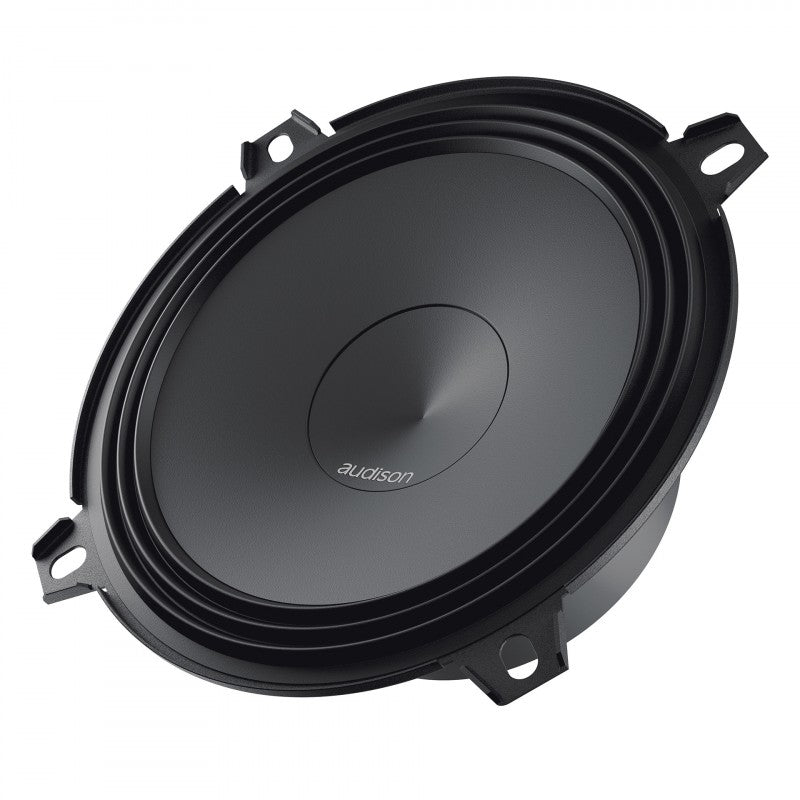

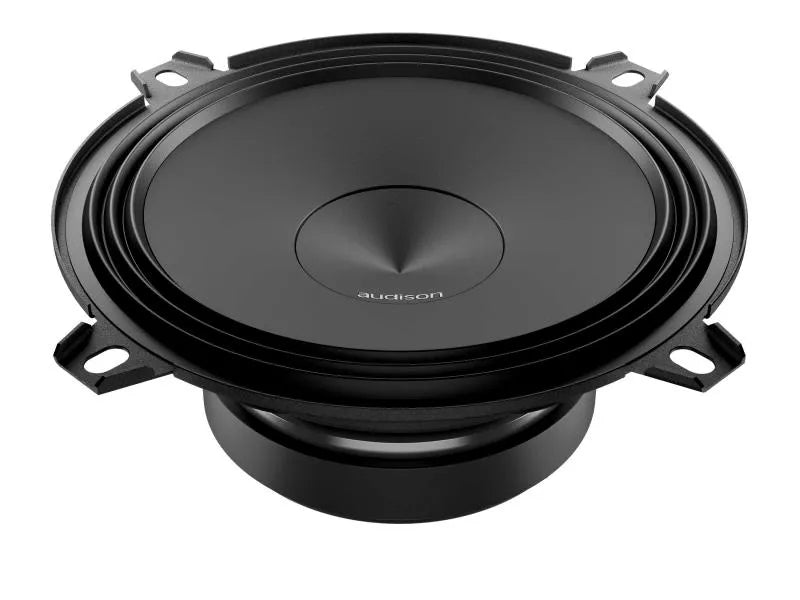

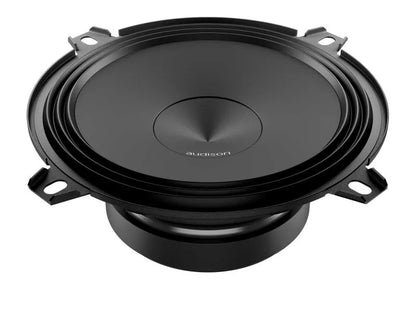

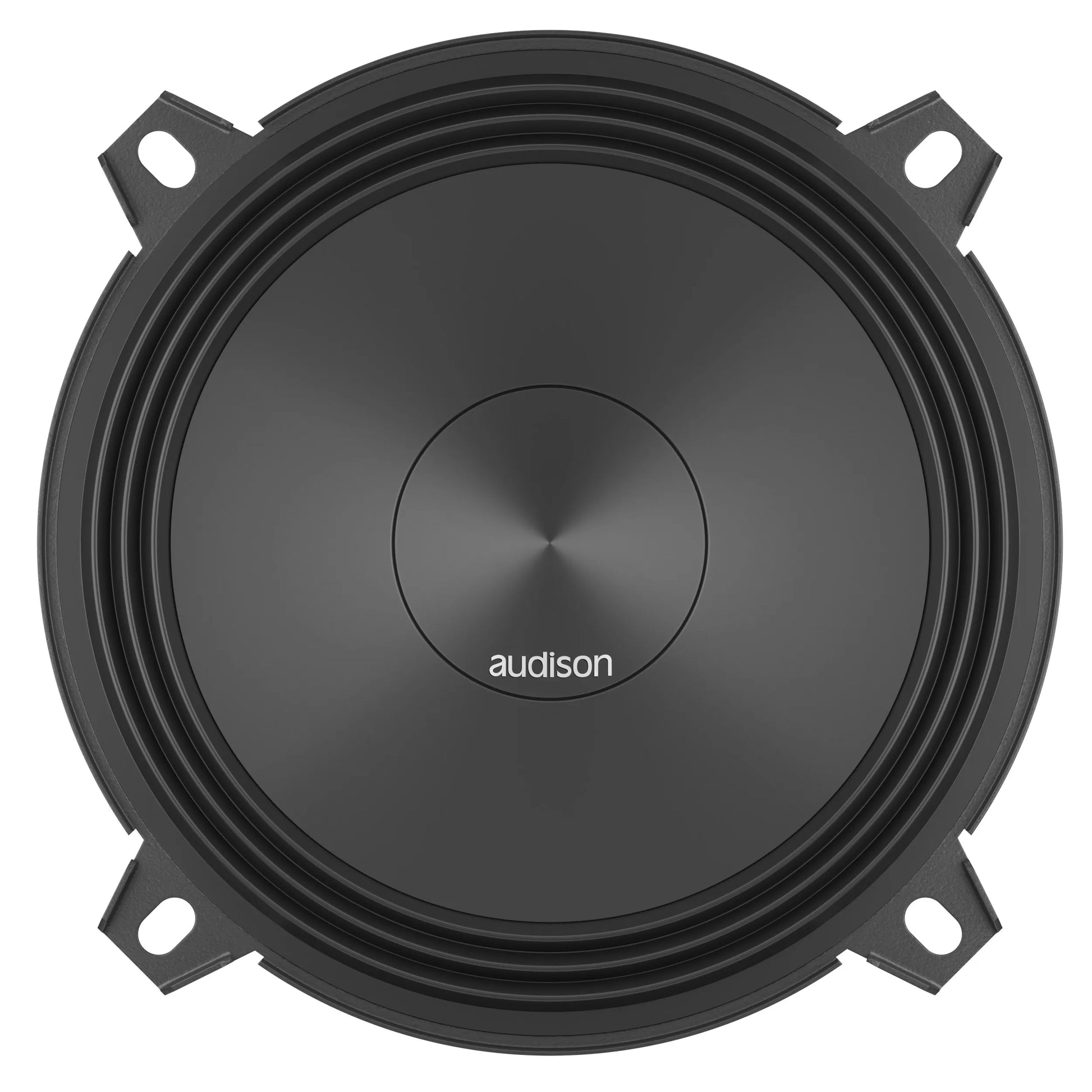

AUDISON AP5 Woofer | 150 W Peak Power | 130 mm | 4 ohm
AUDISON AP5 Woofer | 150 W Peak Power | 130 mm | 4 ohm
Regular price
$275.60
Regular price
Sale price
$275.60
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Features

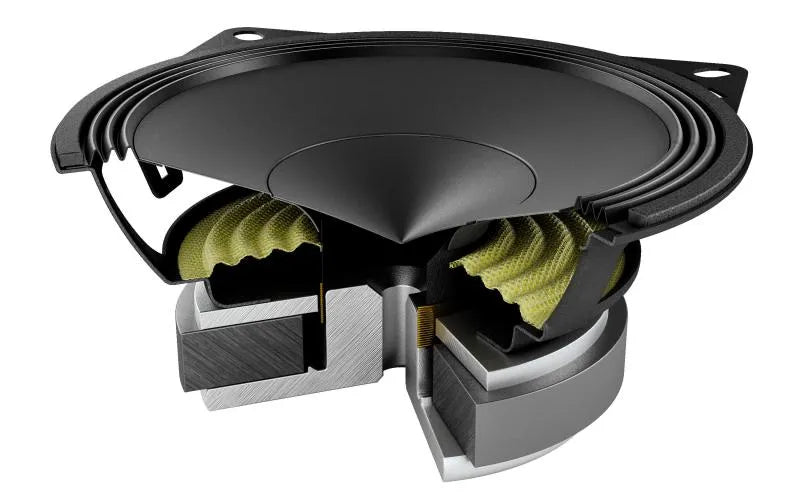

- 32 mm pure copper mobile voice coil, for high power handling and outstanding low-frequency control.
- Water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel R&D Scan Vibrometer.
- No passive crossover is required to maximize efficiency: the cone is optimized with the Klippel Scan Vibrometer to obtain a calibrated mechanical low-pass cut-off frequency.
- Reduced mounting depth, providing ease of installation in OEM placements.
- TPU (thermoplastic polyurethane) sphere with unique “triple wave” profile for maximum linearity of excursion.

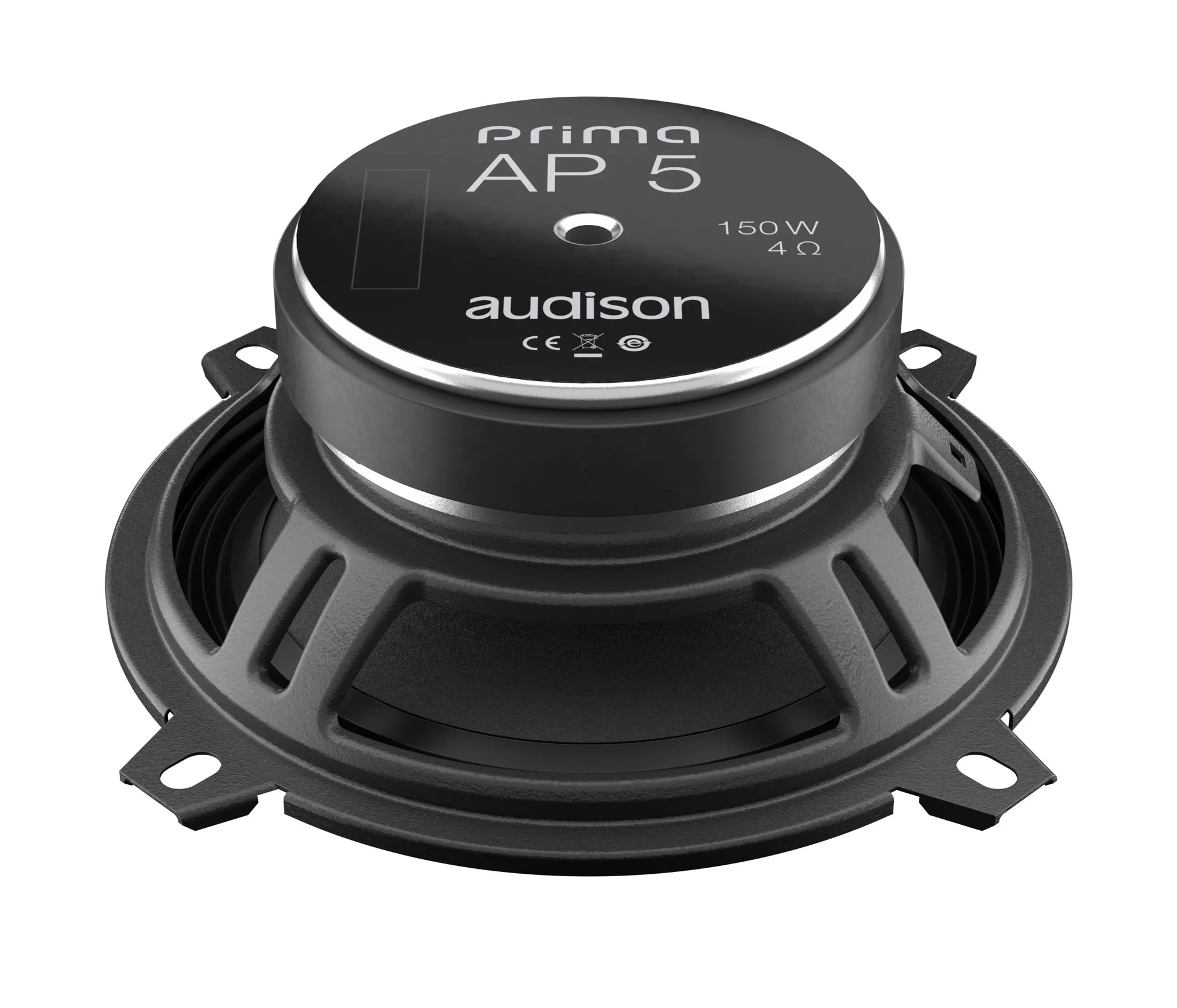

- Compact basket, protected by abrasion-resistant and scratch-proof coating, the motor is affixed with damping epoxy adhesive.
- High current fast-on terminal with double contact on positive and negative poles for installation flexibility and quick connection.
The terminal features a temperature-resistant plastic cover, protecting it against accidental short circuits. - Developed with the KLIPPEL suite.
Technical Specs
| Nominal diameter | 130 mm (5 in) |
| Impedance | 4 Ohm |
| Power Handling - Peak | 150 W |
| Power Handling - Continuous | 50 W |
| Sensitivity | 93 dB |
| Frequency Response | 70 ÷ 5k Hz |
| Voice Coil Ø | 32 mm |
| Magnet size D x d x h | 85 x 40 x 13 mm (in.) |
| Xmax | 2 mm (0.08 in) |
Electric-acoustic Specs
| Re | 3.1 Ohm |
| Fs | 90 Hz |
| Le | 0.25 mH |
| Vas | 4 l (0.141 ft) |
| Mms | 9 g (0.317 oz) |
| Cms | 0.34 mm/N |
| BL | 4.6 T•m |
| Qts | 0.68 |
| Qes | 0,74 |
| Qms | 8 |
General
| Weight | 0.65 kg |
Dimensions
 |
|
| Dimension A | 130 mm (5.12 in) |
| Dimension B | 119 mm (4.69 in) |
| Dimension C | 51.5 mm (2.03 in) |
| Dimension D | 48.5 mm (1.91 in) |
| Dimension A3 | 150 mm |
