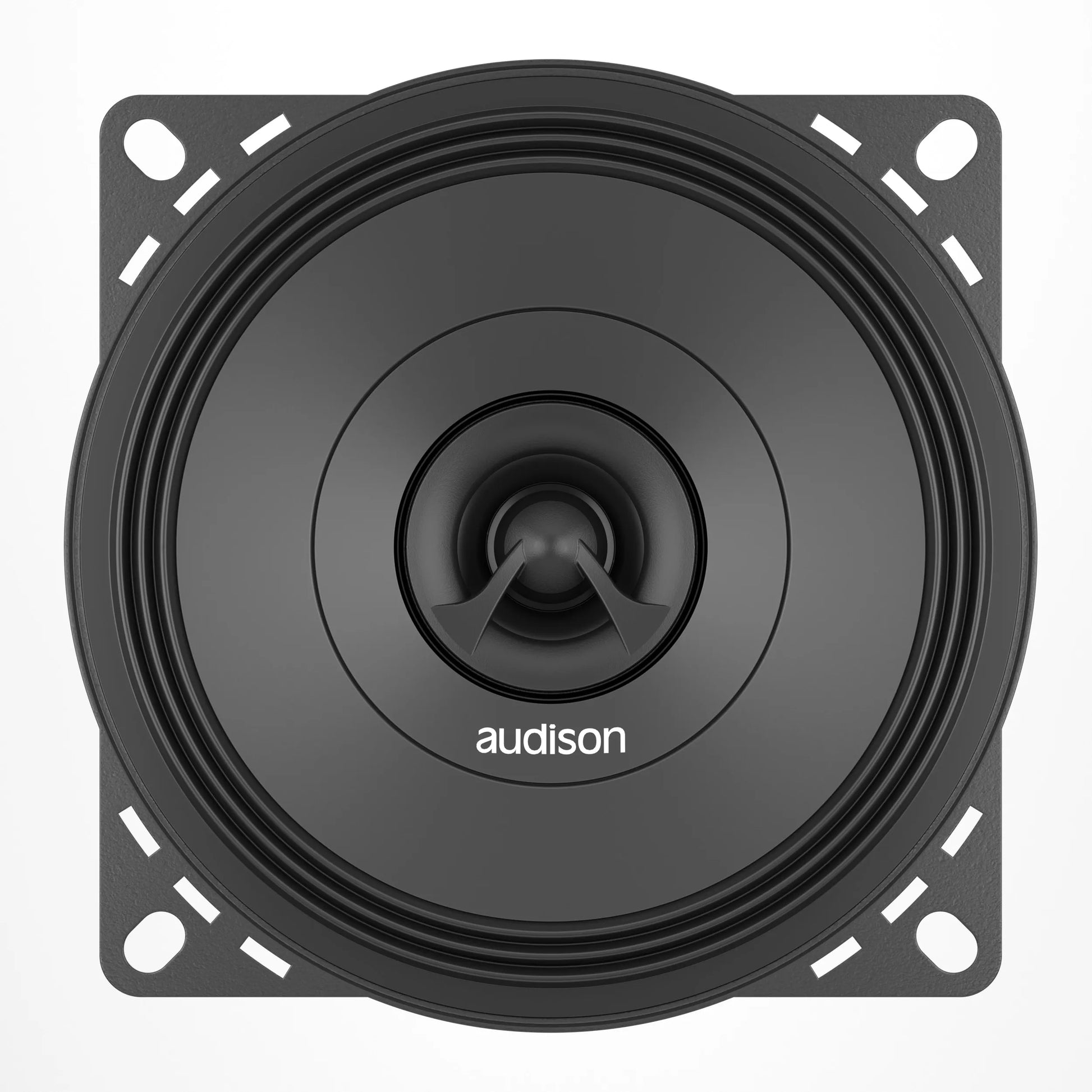

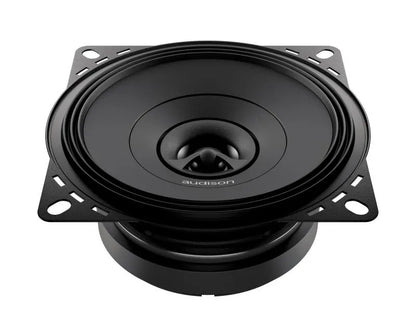

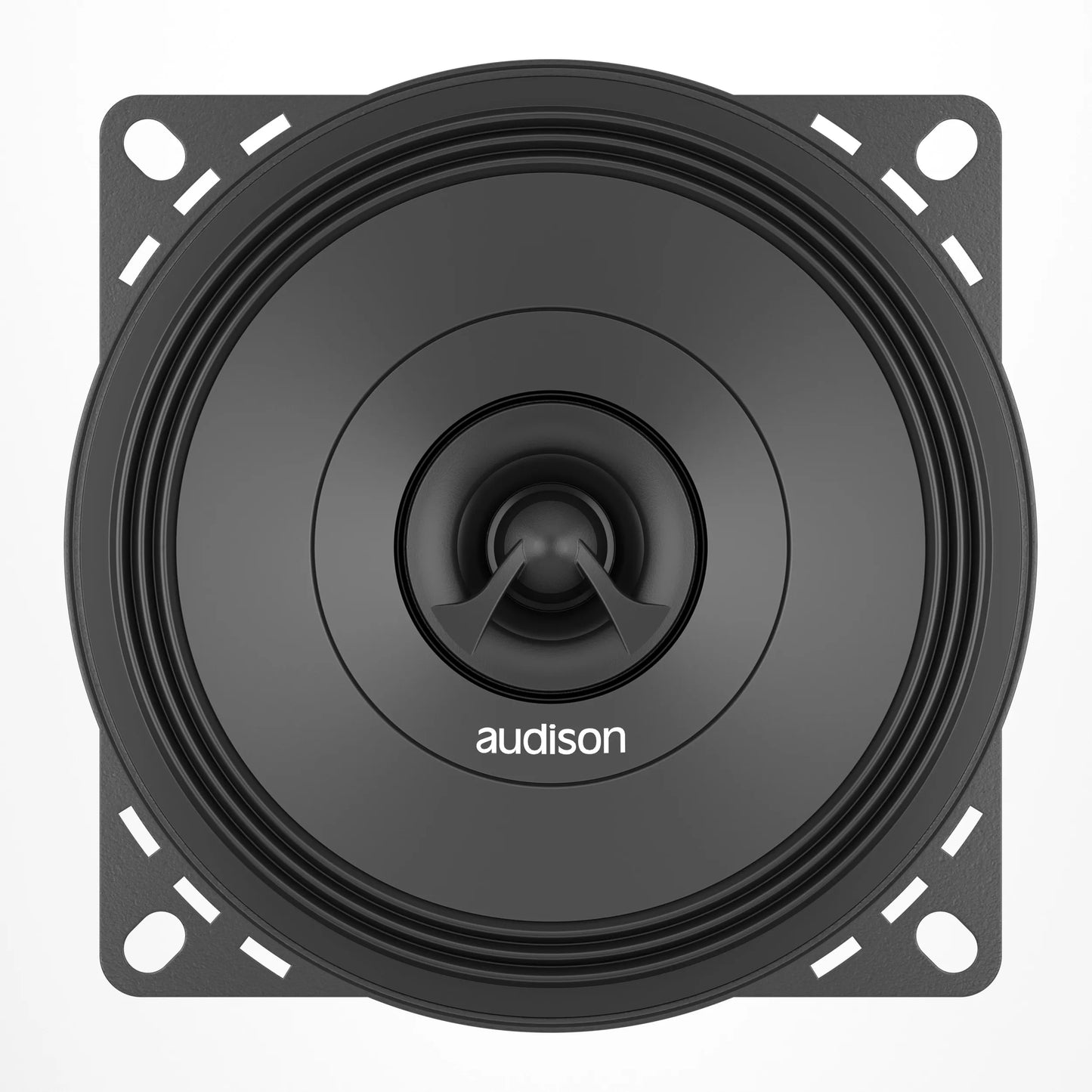

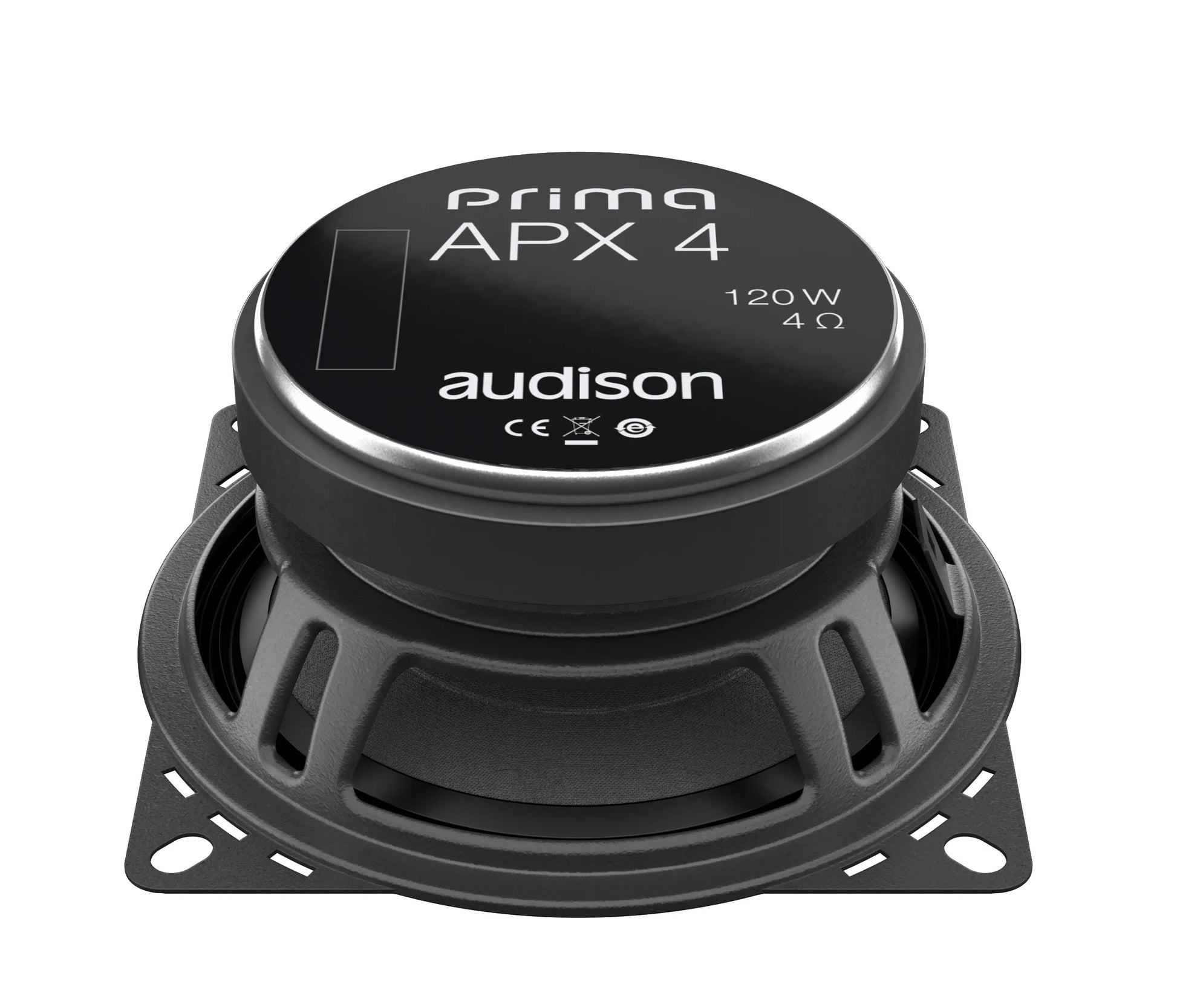

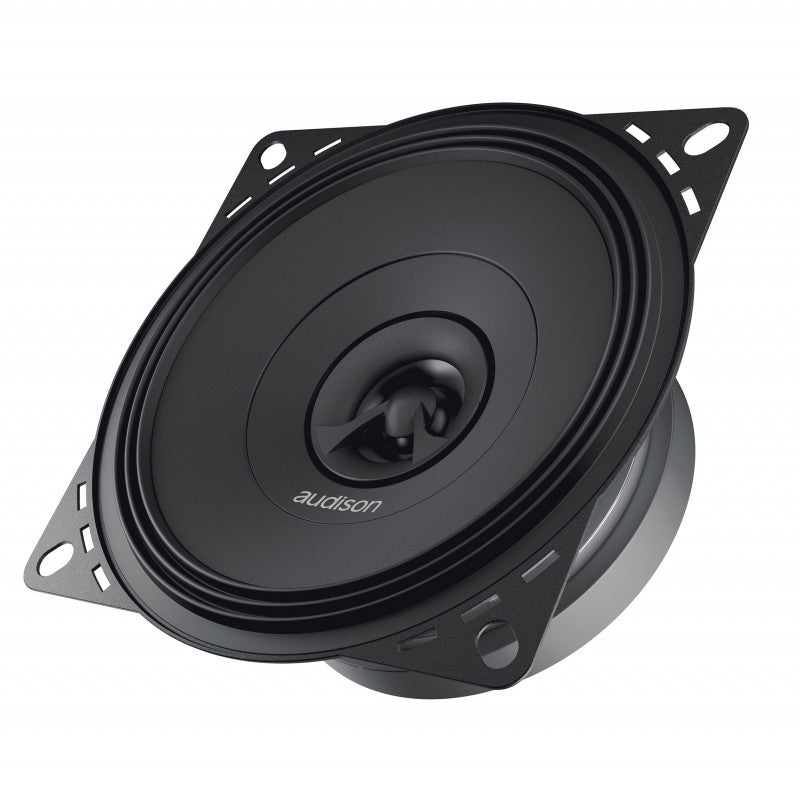

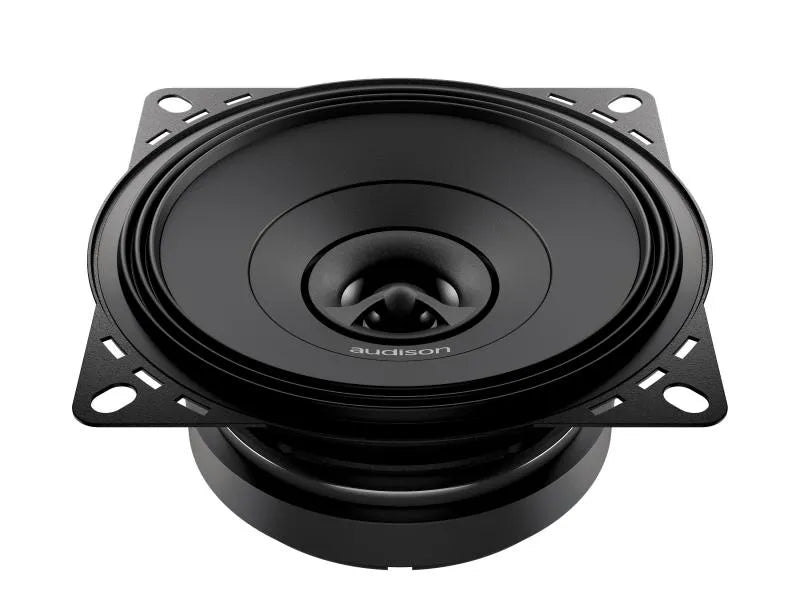

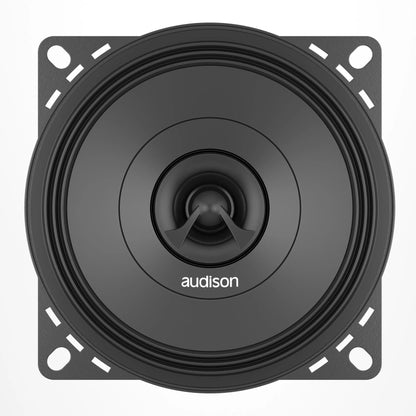

AUDISON APX4 Coaxial | 120 W Peak Power | 100 mm | 4 ohm

Name: AUDISON APX4 Coaxial | 120 W Peak Power | 100 mm | 4 ohm
Brand: Audison
SKU: 82 APX4
Price: 289.40 NZD
Availability: InStock

$289.40

Sale Sold out

Taxes included. Shipping calculated at checkout.

Quantity

Features

Concentric Coaxial Tweeter: tweeter is mounted within the
woofer with one single point of emission providing consistent
phase response, with an accurate recreation of the sound stage
comparable to that of a component system.
Tweeter features an acoustic lens specifically designed to
ensure an extremely linear frequency response, even in off-axis
placement, typical of in-door installations.
32 mm pure copper voice coil, for high power handling and
outstanding low frequency control.
Overall mounting depth optimized for OEM Integration thanks
to the concentric tweeter and the low profile basket.
Water-repellent treated paper cone, featuring a profile developed
with FEM (Finite Element Method) simulation technology and
optimized with the Klippel Scan Vibrometer.
TPU (thermoplastic polyurethane) suspension with unique “triple wave” profile for maximum linearity of excursion.
Compact basket, protected by abrasion-resistant and scratchproof coating, the motor affixed with damping epoxy adhesive.
High current fast-on terminal with double contact on positive
and negative poles for high flexibility and quick connection. The
terminal features a temperature resistant plastic cover,
protecting it against accidental short circuits.
Developed with the KLIPPEL suite. –

Technical Specs LF

Woofer Size	100 mm
Impedance	4 Ohm
Power Handling - Peak	120 W
Power Handling - Continuous	40 W
Sensitivity	91 dB
Frequency Response	80 ÷ 23k
Voice Coil Diameter	32 mm (0.59 in)
Magnet Size	75 x 40 x 10
Xmax	1.3 mm (1.26 in)
