AUDISON APS8R Subwoofer Driver | 500 W Peak Power | 200 mm | 4 ohm

Name: AUDISON APS8R Subwoofer Driver | 500 W Peak Power | 200 mm | 4 ohm
Brand: Audison
SKU: 82 APS8R
Price: 454.70 NZD
Availability: InStock

$454.70

Sale Sold out

Taxes included. Shipping calculated at checkout.

Features

Ultra-low profile (3.11 in. / 79 mm) for maximum installation flexibility.
Designed to deliver maximum performance in a reflex enclosure
starting from 8.5 lt.
Special designed cone-dustcap-basket geometry which
guarantees a long linear excursion capability (almost 9 mm,
one-way) while keeping the mounting depth to minimum.
Air vents on the basket underneath the spider, eliminating the
need for the central pole vent allowing mounting close to rear wall
of enclosure.
Massive motor assembly optimized with FEM (Finite Element
Modeling) for perfect control under high excursion conditions.
Water-repellent pressed paper 8 in. cone featuring a profile developed
with FEM simulation and optimized with the Klippel Scan Vibrometer.
Specifically developed to be combined with either the Audison AP8.9 bit
(2 CH bridged) or AP4.9 bit /AP4 D (2 CH bridged) amplifiers.

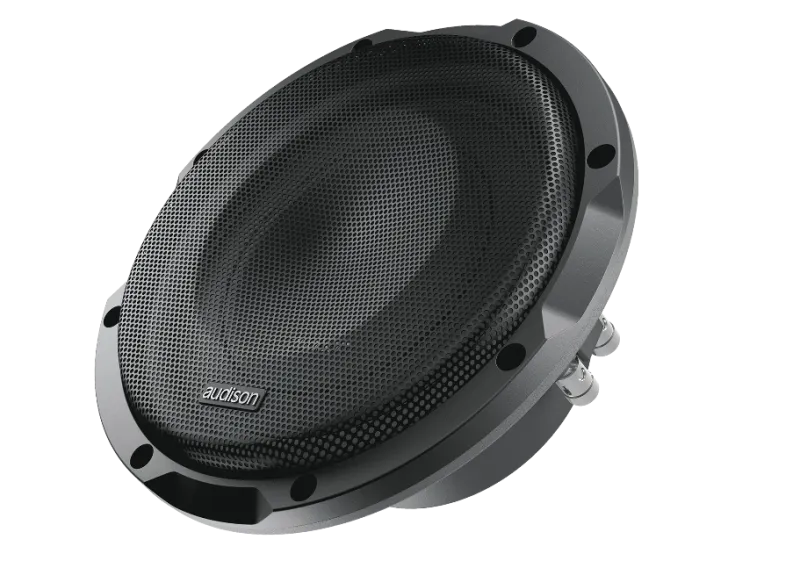

Steel mesh grille and plastic gasket included.

Technical Specs

Nominal diameter	200 mm (8 in)
Impedance	4 Ohm
Power Handling - Peak	500 W
Power Handling - Continuous	250 W
Sensitivity	84 dB
Voice Coil Ø	40 mm (1.6 in)
Magnet Material	HIGH DENSITY FLUX FERRITE
Magnet size D x d x h	120 x 50 x 28 mm (in.)
Cone Material	WATER REPELLENT PRESSED PAPER
Xmax	8.8 mm (0.35 in)
Xmech	16.5 mm (0.65 in)
Driver Displacement Volume	0.67 l (0.024 ft)
