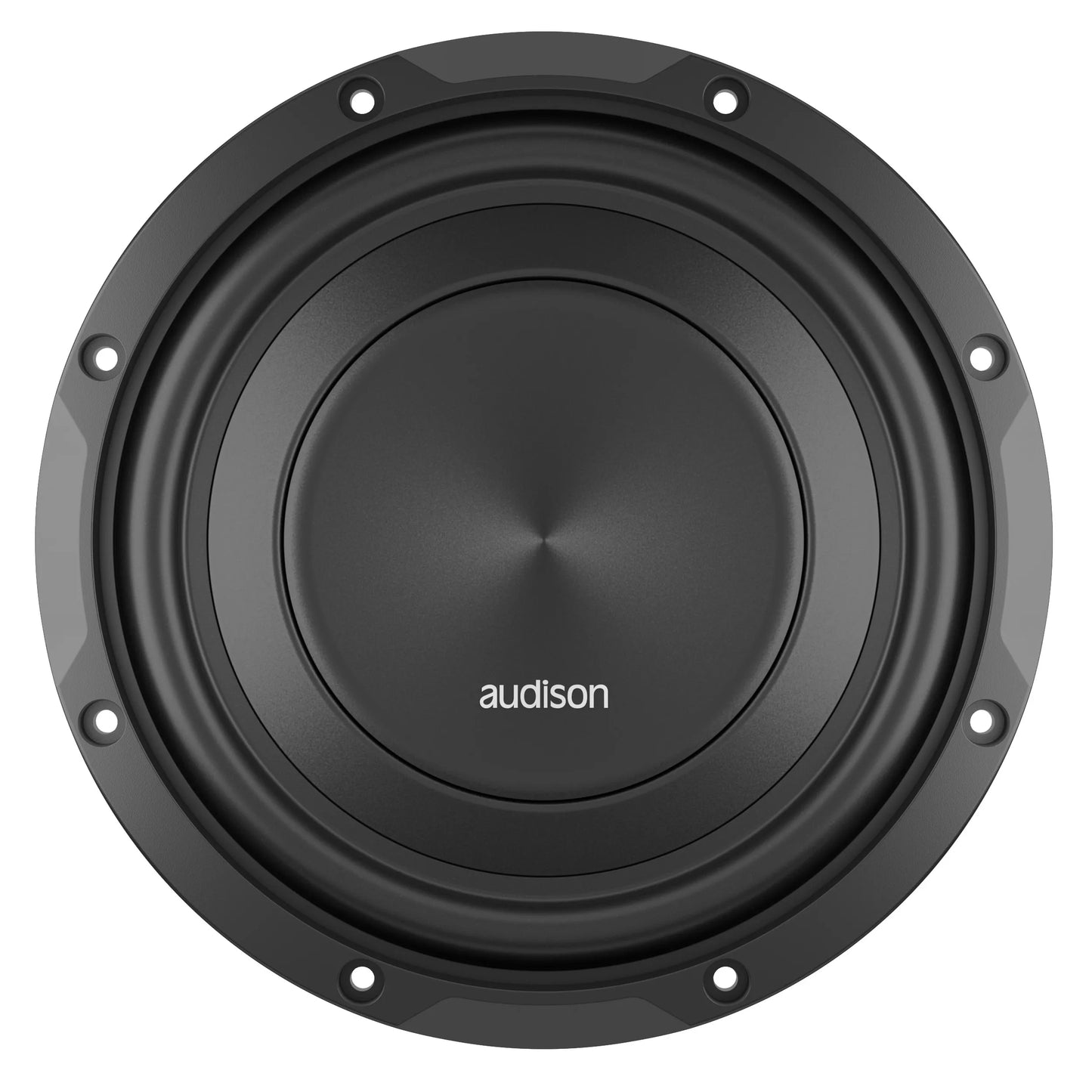

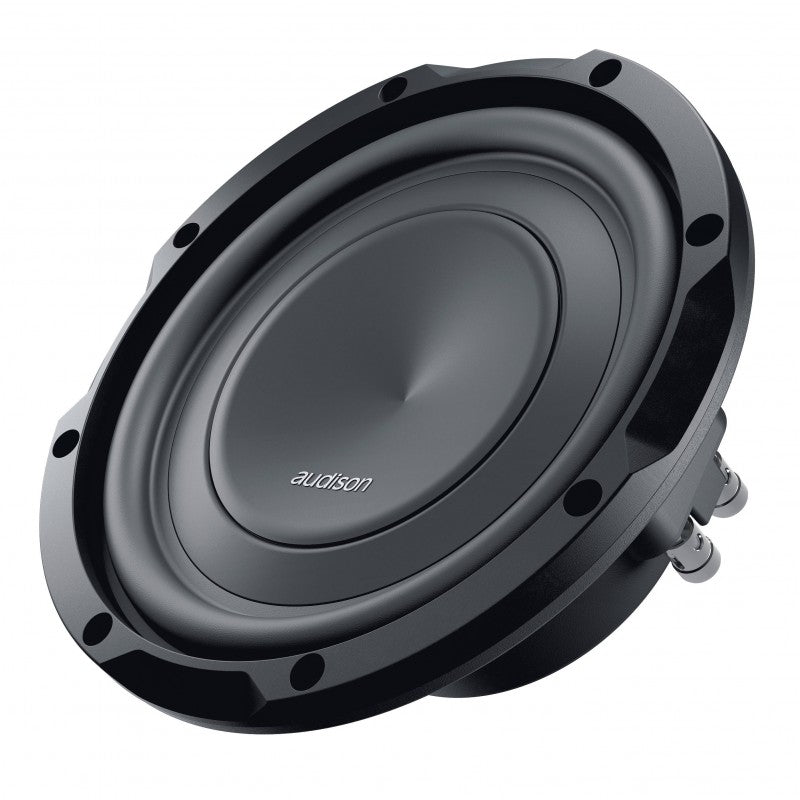

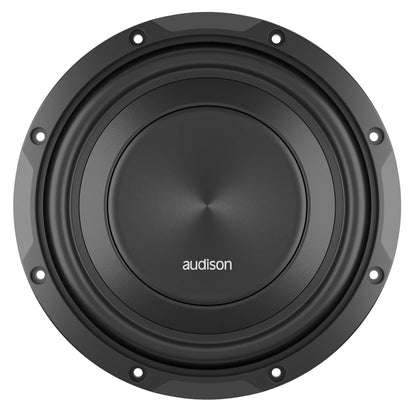

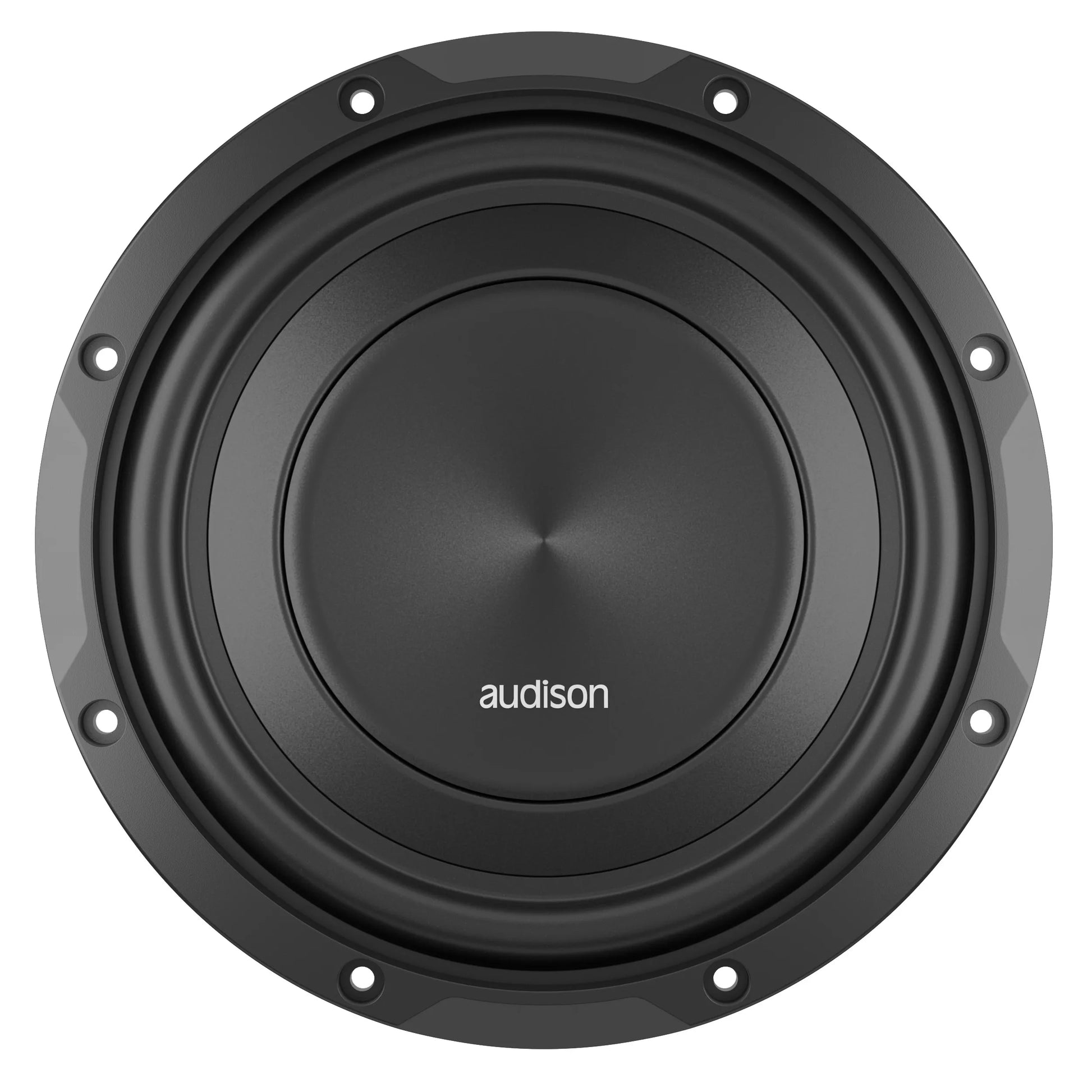

AUDISON APS8D Subwoofer Driver | 500 W Peak Power | 200 mm | 4 + 4 ohm

Name: AUDISON APS8D Subwoofer Driver | 500 W Peak Power | 200 mm | 4 + 4 ohm
Brand: Audison
SKU: 82 APS8D
Price: 482.30 NZD
Availability: InStock

$482.30

Sale Sold out

Taxes included. Shipping calculated at checkout.

Features

Ultra-low profile (3.11 in. / 79 mm) for maximum installation flexibility.
Designed to deliver maximum performance in a sealed enclosure
starting from 7.5 lt.
Special designed cone-dustcap-basket geometry which guarantees a
long linear excursion capability (almost 9 mm, one-way) while keeping
the mounting depth to minimum.
Air vents on the basket underneath the spider, eliminating the need for
the central pole vent allowing mounting close to rear wall of enclosure.

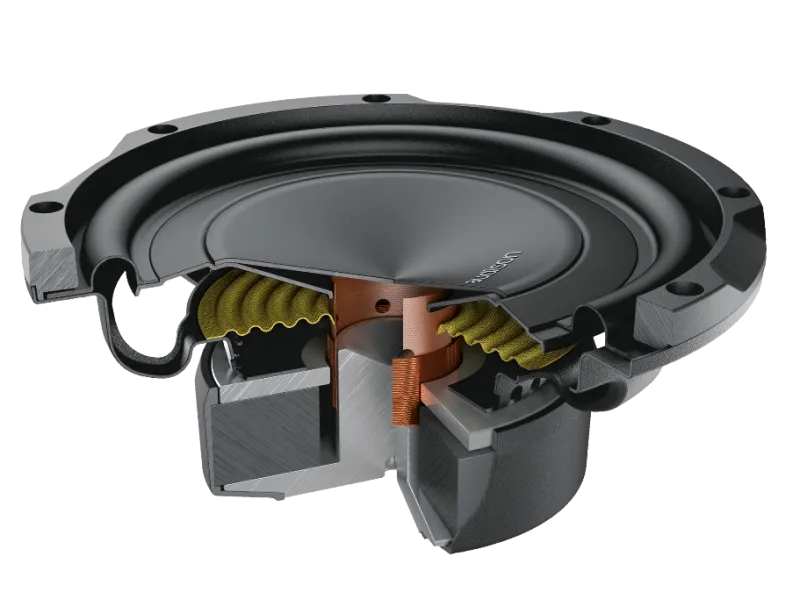

Massive motor assembly optimized with FEM (Finite Element Modeling)
for perfect control under high power, high excursion conditions.
Water-repellent pressed paper 8 in. cone featuring a profile developed
with simulation and optimized with the Klippel Scan Vibrometer.
Dual voice coil design specifically developed to be combined with either
AP8.9 bit (2 CH + 2 CH bridged), AP5.9 bit (Sub CH) or AP4.9 bit/AP4 D
(2 CH bridged) amplifiers.

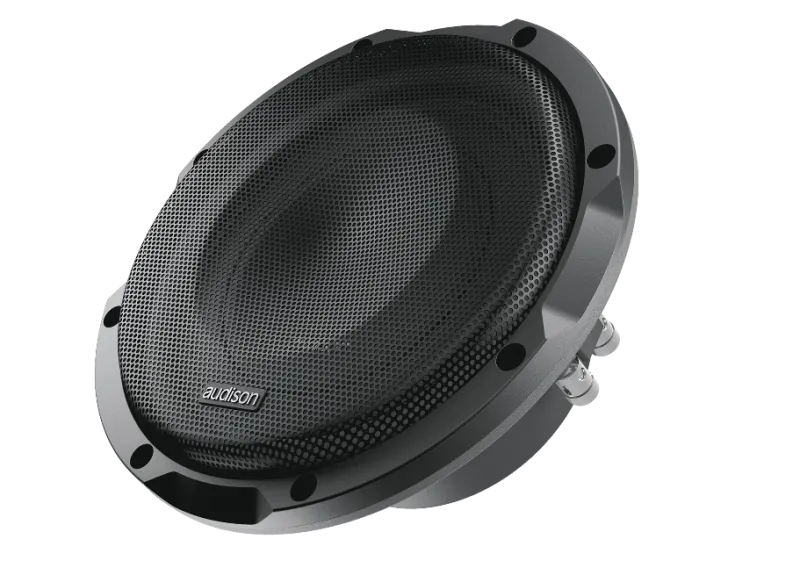

Steel mesh grille and plastic gasket included.

Technical Specs

Nominal diameter	200 mm (8 in)
Impedance	4+4 Ohm
Power Handling - Peak	500 W
Power Handling - Continuous	250 W
Sensitivity	83.5 dB
Magnet Material	HIGH DENSITY FLUX FERRITE
Magnet size D x d x h	120 x 50 x 28 mm (in.)
Cone Material	WATER REPELLENT PRESSED PAPER
Xmax	8.8 mm (0.35 in)
Xmech	16.5 mm (0.65 in)
Voice Coil Winding Height	40 mm (1.57 in)
Driver Displacement Volume	0.67 l (0.024 ft)
