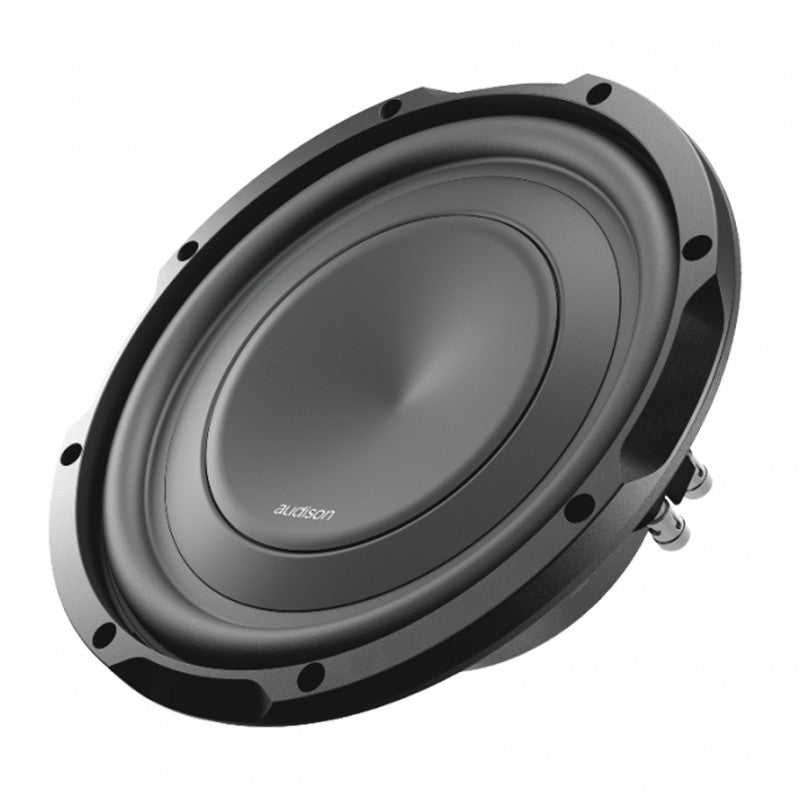

AUDISON APS10S4S Subwoofer Driver | 800 W Peak Power | 250 mm | 4 ohm

Name: AUDISON APS10S4S Subwoofer Driver | 800 W Peak Power | 250 mm | 4 ohm
Brand: Audison
SKU: 82 APS10S4S
Price: 675.20 NZD
Availability: InStock

$675.20

Sale Sold out

Taxes included. Shipping calculated at checkout.

Features

Ultra-low profile (4.7 in. / 120 mm) for maximum installation flexibility.
Designed to deliver maximum performance in a sealed enclosure starting from 10 lt.
Special-designed cone-dust cap-basket geometry guarantees a long linear excursion capability (11 mm, one-way) while keeping the mounting depth to a minimum.
Air vents on the basket underneath the spider, eliminating the need for the central pole vent allowing mounting close to the rear wall of the enclosure.
Massive motor assembly, optimized with FEM (Finite Element Modeling) for perfect control under high power, high excursion conditions.
Water-repellent treated paper 10 in. cone, featuring a profile developed with FEM simulation and optimized with the Klippel Scan Vibrometer.
Single voice coil design specifically developed to be combined with either AP F8.9 bit (2 CH bridged 260 W RMS) amplifiers taking advantage of the bass boost feature and integrated parametric equalizer of the built-in DSP.

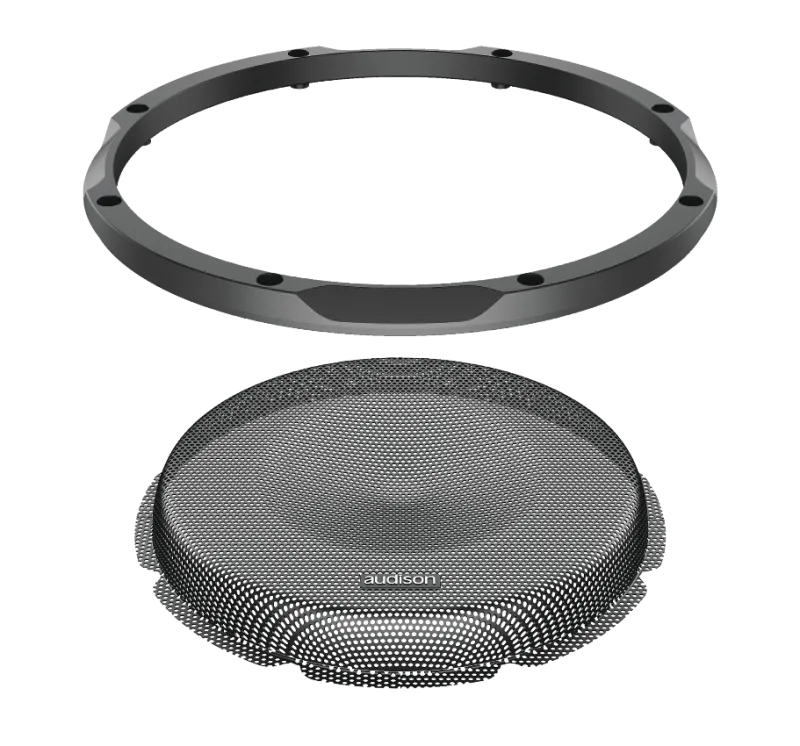

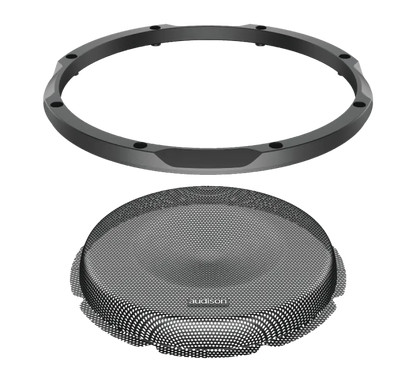

Steel mesh grille and plastic gasket included. –

Technical Specs

Nominal diameter	250 mm (10 in)
Impedance	4 Ohm
Power Handling - Peak	800 W
Power Handling - Continuous	400 W
Sensitivity	83.5 dB
Voice Coil Ø	60 mm
Magnet Material	HIGH DENSITY FLUX FERRITE
Magnet size D x d x h	140 x 70 x 30 mm (in.)
Cone Material	WATER REPELLENT PRESSED PAPER
Xmax	12.6 mm (0.5 in)
Xmech	18 mm (0.71 in)
Driver Displacement Volume	1.12 l (0.04 ft)
