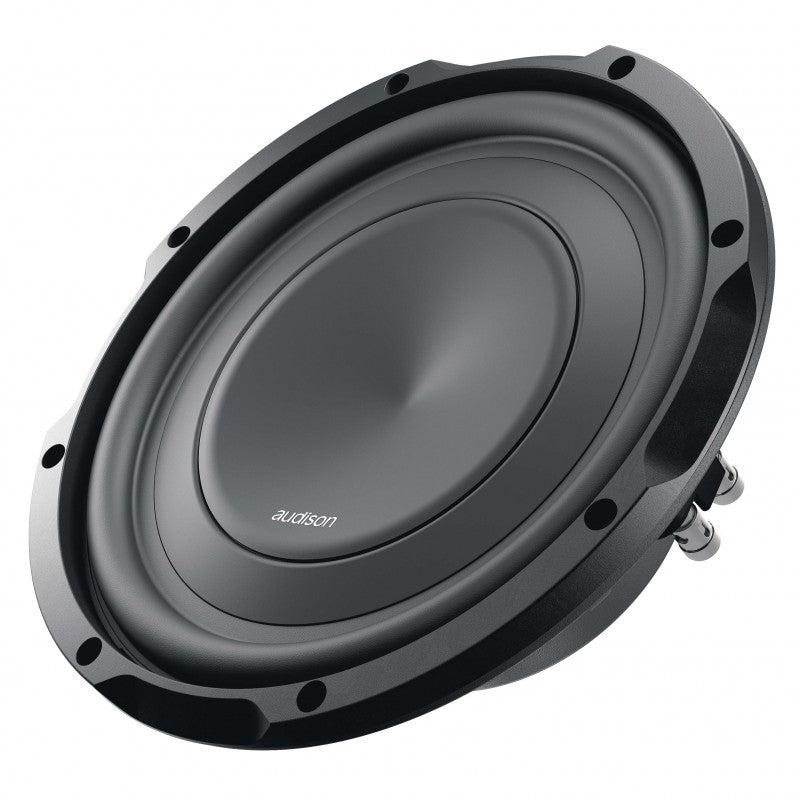

AUDISON APS10D Subwoofer Driver | 800 W Peak Power | 250 mm | 4 + 4 ohm

Name: AUDISON APS10D Subwoofer Driver | 800 W Peak Power | 250 mm | 4 + 4 ohm
Brand: Audison
SKU: 82 APS10D
Price: 675.20 NZD
Availability: InStock

$675.20

Sale Sold out

Taxes included. Shipping calculated at checkout.

Features

Ultra-low profile (4.7 in. / 120 mm) for maximum installation flexibility.
Designed to deliver maximum performance in a sealed enclosure starting
from 10 lt.

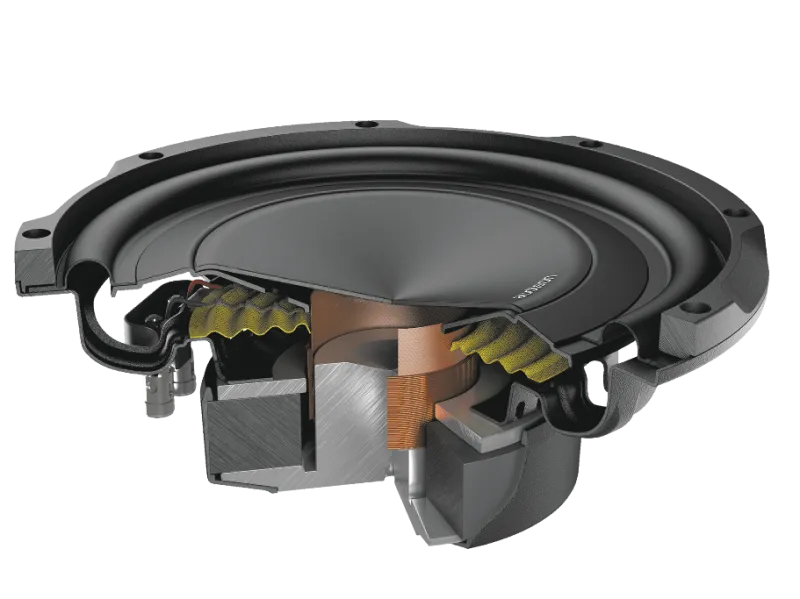

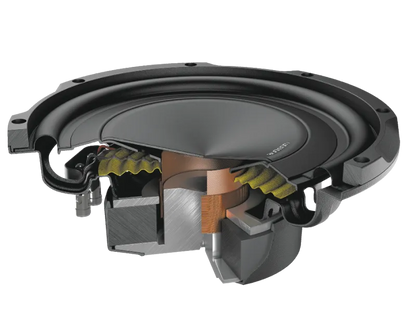

Special designed cone-dustcap-basket geometry which guarantees a
long linear excursion capability (11 mm, one-way) while keeping the
mounting depth to minimum.
Air vents on the basket underneath the spider, eliminating the need for
the central pole vent allowing mounting close to rear wall of enclosure.
Massive motor assembly, optimized with FEM (Finite Element Modeling)
for perfect control under high power, high excursion conditions.
Water-repellent pressed paper 10 in. cone, featuring a profile developed
with FEM simulation and optimized with the Klippel Scan Vibrometer.
Dual voice coil design specifically developed to be combined with either
AP8.9 bit (2 CH + 2 CH bridged), AP5.9 bit (Sub CH) or AP4.9 bit/AP4 D
(2 CH bridged) amplifiers.
Steel mesh grille and plastic gasket included.

Technical Specs

Nominal diameter	250 mm (10 in)
Impedance	4+4 Ohm
Power Handling - Peak	800 W
Power Handling - Continuous	400 W
Sensitivity	84 dB
Voice Coil Ø	60 mm
Magnet Material	HIGH DENSITY FLUX FERRITE
Magnet size D x d x h	140 x 70 x 30 mm (in.)
Cone Material	WATER REPELLENT PRESSED PAPER
Xmax	12.6 mm (0.5 in)
Xmech	18 mm (0.71 in)
Driver Displacement Volume	1.12 l (0.04 ft)
