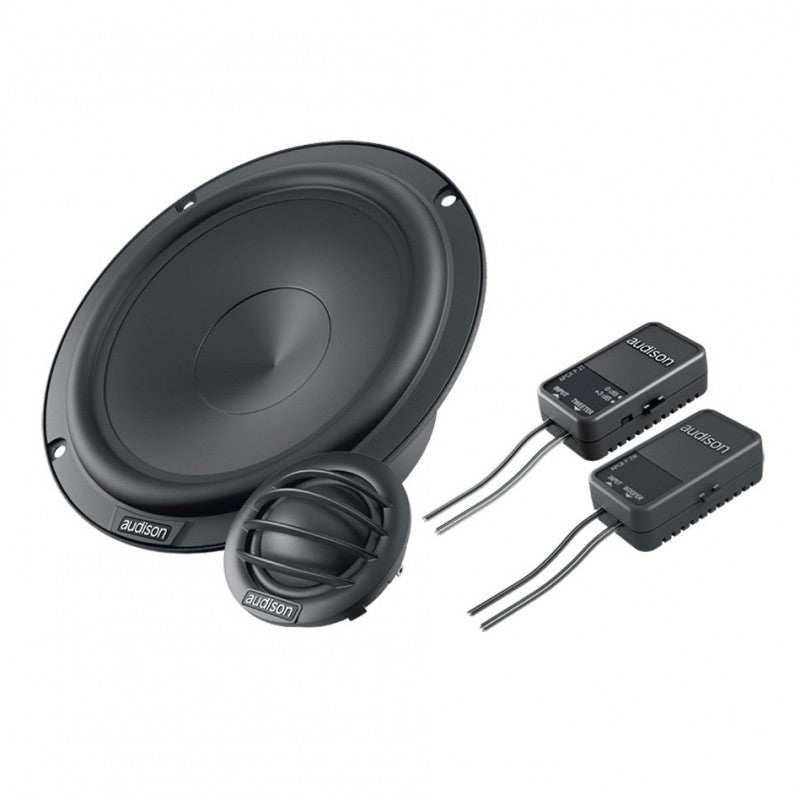

AUDISON APK165P 6.5 Component Set High Power

AUDISON APK165P 6.5 Component Set High Power

$700.00
$700.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

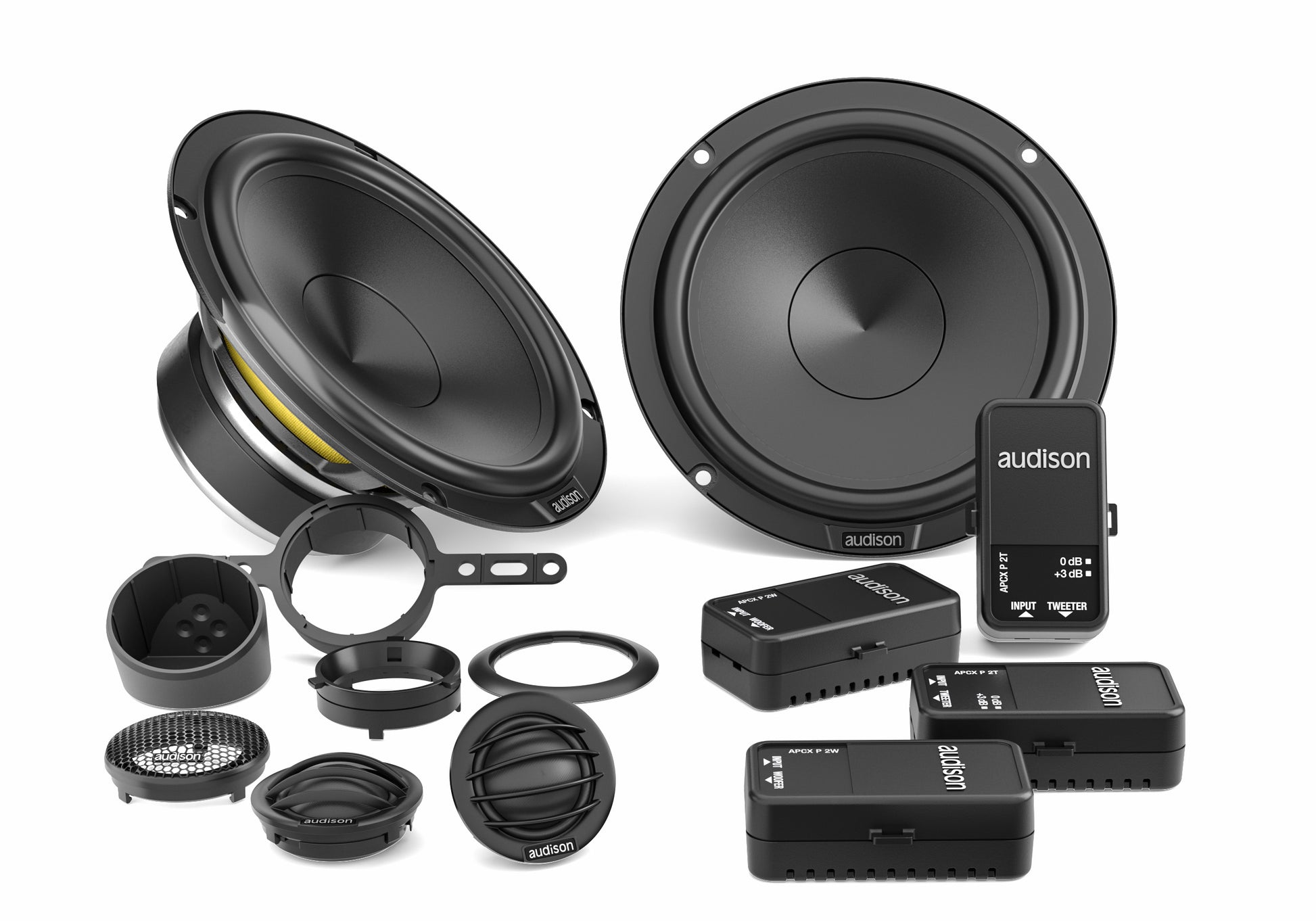

APK 165PKit | 345 W Peak Power | Kit 2 way 4 ohm | AP 1P + AP 6.5P + Crossover

The new Prima APK 165P two-way loudspeaker system, capable of handling up to 345 W peak, is the ideal combination to fully exploit the power of the AP F8.9 bit or all other Prima amplifiers used in high power configurations. The exclusive AIF technology (Any Install Faceplate) of the AP 1P Tweeter provides the installer with 3 different faceplates for total application versatility and a significant reduction in installation time. The woofer has been designed to perform at its best in OEM placements, combining excellent power handling and efficiency.

Technical Specs LF

Woofer Size 165 mm (6.5 in)
Impedance 4 Ohm
Power Handling - Peak 345 W
Power Handling - Continuous 115 W
Frequency Response 50 ÷ 24k
Voice Coil Diameter 32 mm (1.26 in)
Magnet Size 100 x 40 x 18
Crossover Level Adjustment Tweeter Level; 0 / +3

Technical Specs HF

Tweeter Size 29 mm (1.14 in)
Voice Coil Diameter 25 mm (1.26 in)
Dome Material TETOLON FIBER

Electric-acoustic Specs LF

Re 3.1 Ohm
Fs 60 Hz
Mms 14.6 g
Cms 0.47
BL 5.35
Qms 7.6
Qes 1,74
Qts 0.55
Vas 11.4 l
Le 0.29 mH
D 132 sq mm (20.46 sq in)
Spl 89.5 dB
Xmax 5.6 mm (0.22 in)

Kit Tech Data

Crossover Low-Pass Low-Pass: 4 kHz @ 6 dB/Oct
Crossover Hi-Pass Hi-Pass: 4 KHz @ 12dB/Oct.
Cone Diameter 132 mm

General

Weight Woofer 1.45 kg
Weight Tweeter 0.067 kg



Features

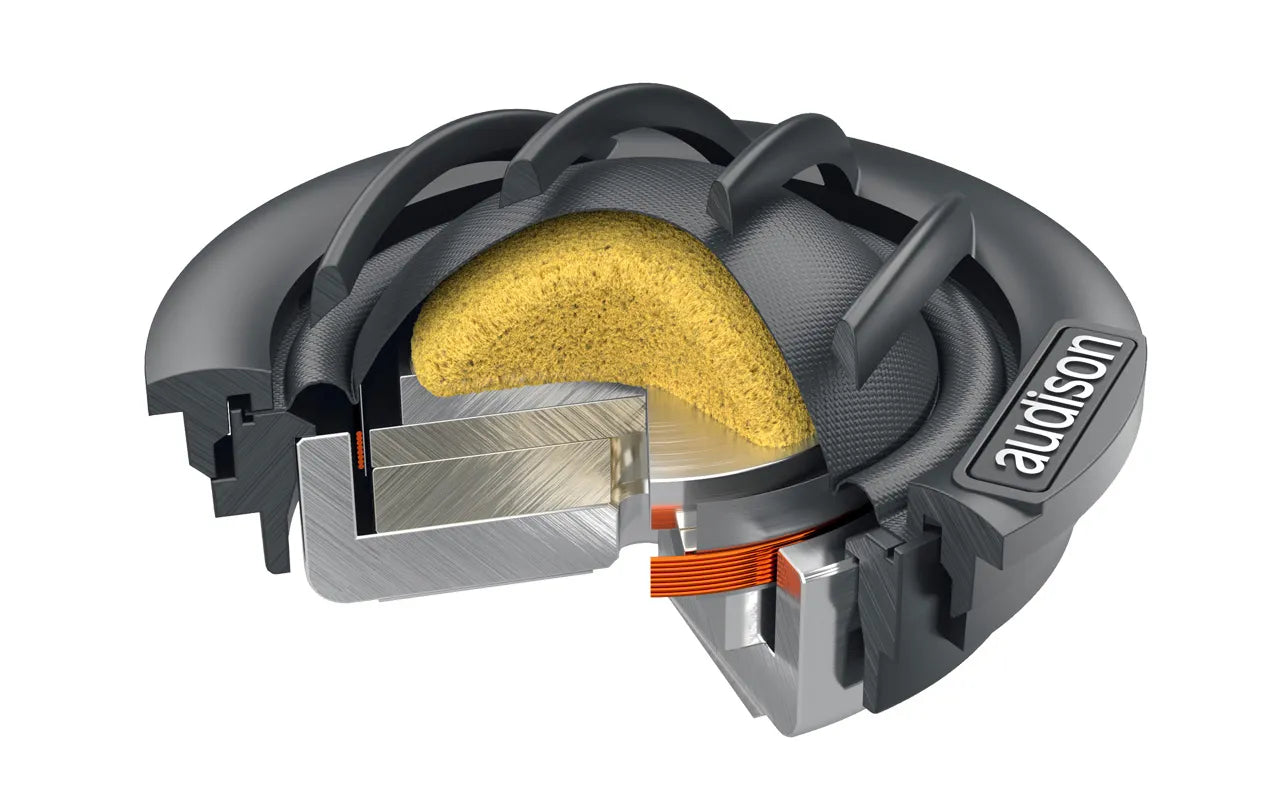

AP 1P

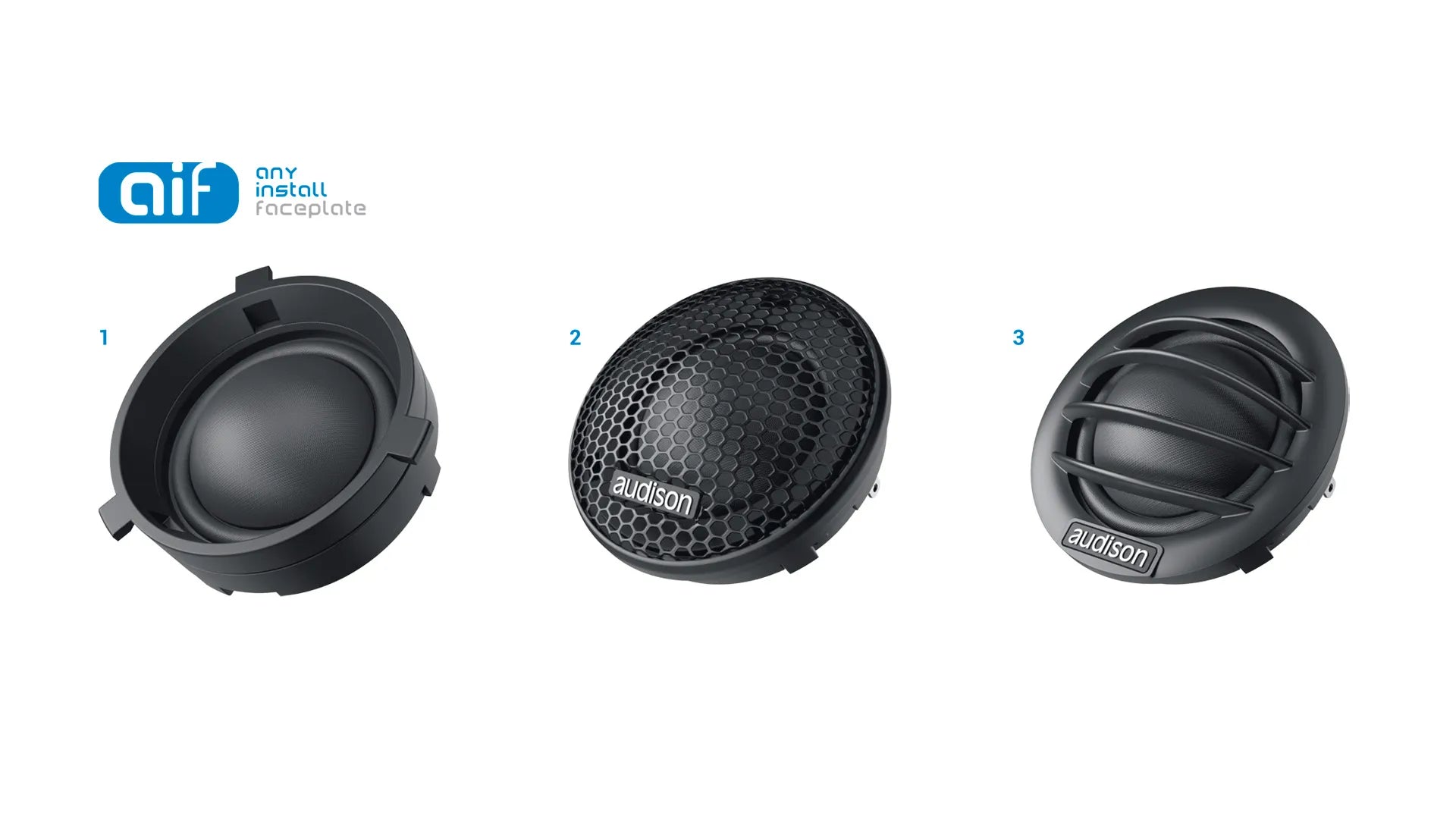

  1. AIF technology (Any Install Faceplate) for total application versatility and a significant reduction in installation time.
  2. Three mounting accessories supplied to provide a solution for any type of installation.
  3. Magnetic group with double Neodymium tablet for an excellent high frequency extension.
  4. 1 CCAW voice coil for superior dynamic response.
  5. Dome profile optimized with FEM simulations for a wide off-axis dispersion.

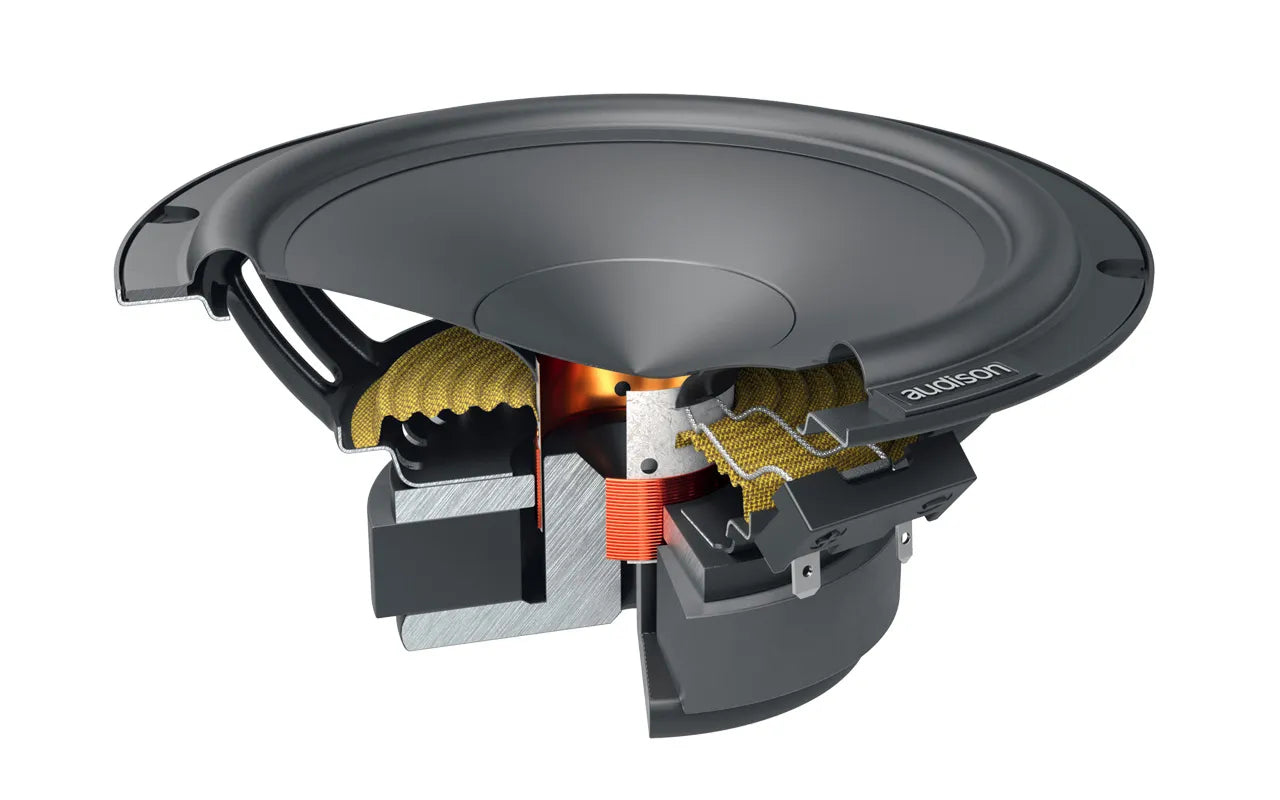

AP 6.5P

  1. Increased excursion of the mobile group for a superior dynamic response.
  2. Optimized electro-acoustic parameters to maximize performance for OEM placements.
  3. Magnetic group sized for perfect control even at maximum cone excursion.
  4. CCAW (Copper-Clad Aluminium Wire) voice coil (32 x 14 mm) to optimally manage the greater applied power.
  5. Compact size basket for easy OEM installations.



APCX P 2T, APCX P 2W

  1. Separate ultra-compact crossovers for tweeters and woofers to minimize space requirements and simplify cable routing, facilitating the specialist work.
  2. Use of components selected and sized for the management of high power avoiding saturation.
  3. Asymmetric slope filtering, 12 dB/oct on the tweeter and 6 dB/oct on the woofer for an optimal balance between the two components.
