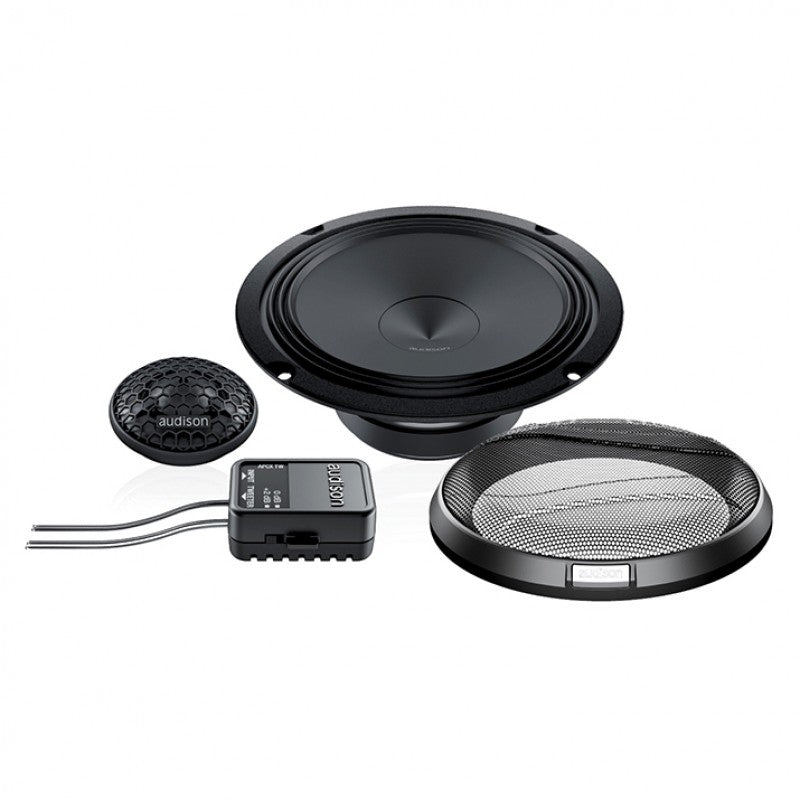

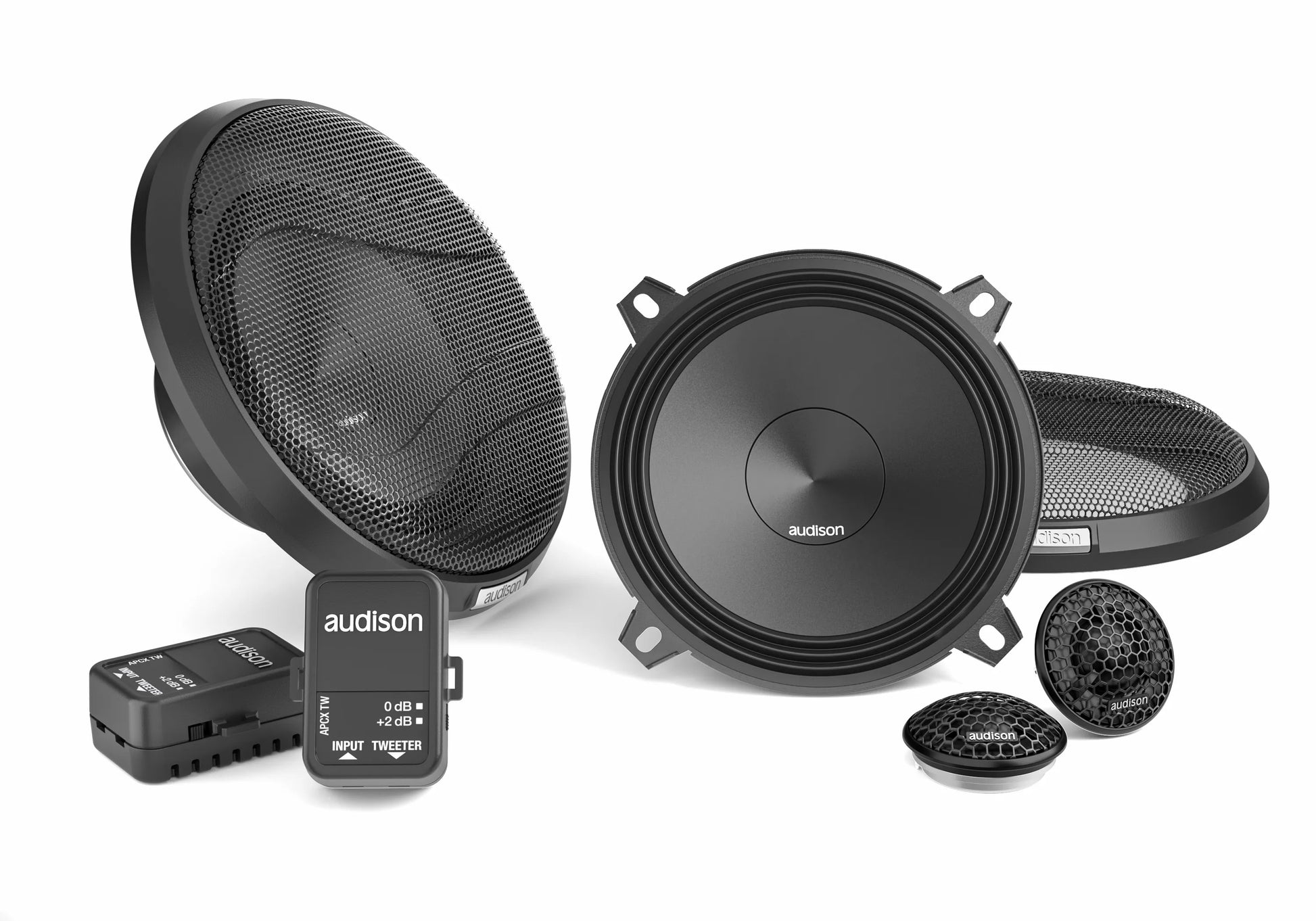

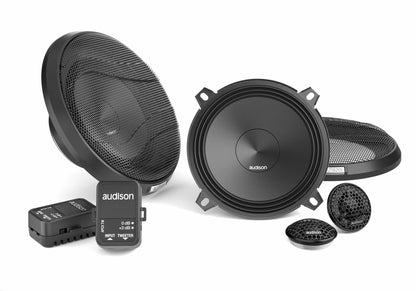

AUDISON APK165 Kit | 225 W Peak Power | Kit 2 way 4 ohm | AP 1 + AP 5 + Crossover

AUDISON APK165 Kit | 225 W Peak Power | Kit 2 way 4 ohm | AP 1 + AP 5 + Crossover

$600.00
$600.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Features

  • AP1 tweeter with 26 mm diameter diaphragm combined with a wide-roll surround provides maximum efficiency and reduced resonance frequency.
  • AP 1 tweeter with acoustic lens designed to compensate for and fine tune the in-car frequency response anomalies in the 10kHz-13kHz bandwidth caused by restrictive OEM grilles in critical OEM placements.
  • APCX TW very compact tweeter passive crossover optimized for OEM Integration featuring an attenuation switch (0 dB, +2dB) to tune the in-car response according to different installation conditions.
  • Passive crossovers are supplied with OEM Integration compliant fast-on connectors. The ends, different in each of the two poles, eliminate any possible connection errors and speed up the required installation time.
  • AP 5 woofer with 32 mm pure copper voice coil, for high power handling and outstanding low frequency control.
  • AP 5 woofer with water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel R&D Scan Vibrometer.
  • AP5 woofer with reduced mounting depth, providing ease of installation in OEM placements.
  • AP5 woofer with TPU (Thermoplastic Polyurethane) surround, featuring the exclusive shallow Triple Wave profile, for maximum excursion linearity.
  • AP 5 woofer with compact basket, protected by abrasion-resistant and scratch-proof coating, the motor affixed with damping epoxy adhesive.
  • AP 5 woofer with high current fast-on terminal with double contact on positive and negative poles for high flexibility and quick connection. The terminal features a temperature resistant plastic cover, protecting it against accidental short circuits.
  • Developed with the KLIPPEL suite.


Technical Specs LF

Woofer Size 130 mm (5 in)
Impedance 4 Ohm
Power Handling - Peak 225 W
Power Handling - Continuous 75 W
Frequency Response 70 ÷ 20k
Voice Coil Diameter 32 mm (1.26 in)
Magnet Size 85 x 40 x 13
Crossover Type HP @ 3,5 kHz - 6 dB Oct
Crossover Level Adjustment +2; 0

Technical Specs HF

Tweeter Size 26 mm (1 in)
Voice Coil Diameter 20 mm (1.26 in)

Electric-acoustic Specs LF

Re 3.1 Ohm
Fs 90 Hz
Mms 9 g
Cms 0.34
BL 4.6
Qms 8
Qts 0.68
Vas 4 l
Le 0.25 mH
Spl 93 dB
Xmax 2 mm (0.08 in)

Kit Tech Data

Cone Diameter 107 mm

General

Weight Woofer 0.65 kg
Weight Tweeter 0.04 kg
