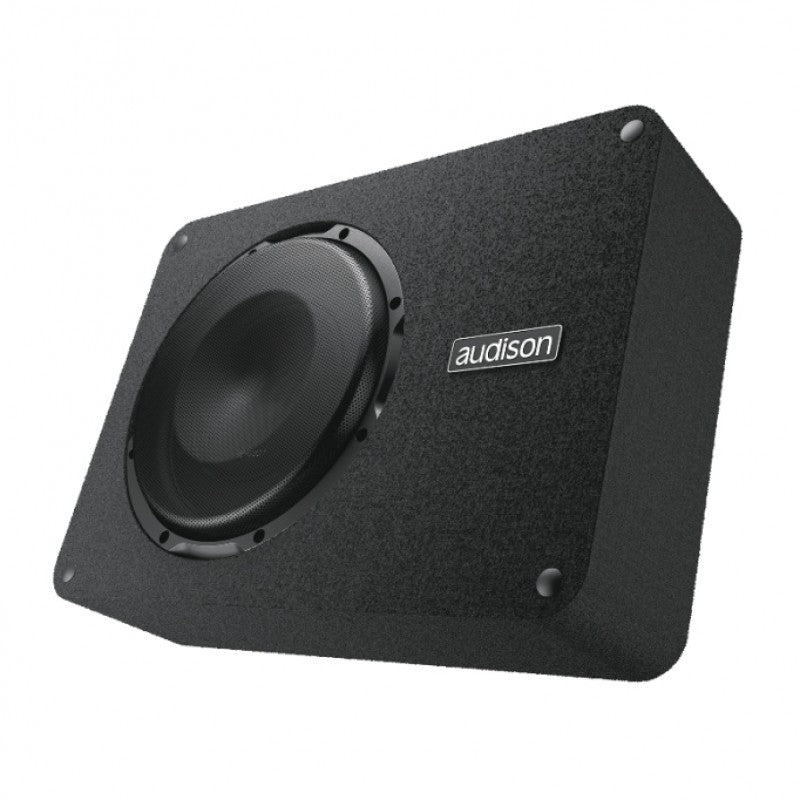

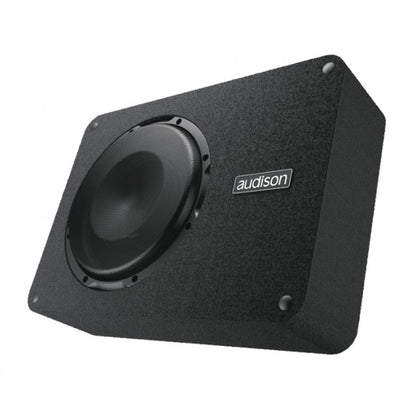

AUDISON APBX8R Subwoofer Box | 500 W Peak Power | 200 mm | 4 ohm sub box
AUDISON APBX8R Subwoofer Box | 500 W Peak Power | 200 mm | 4 ohm sub box
Regular price
$854.40
Regular price
Sale price
$854.40
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Features

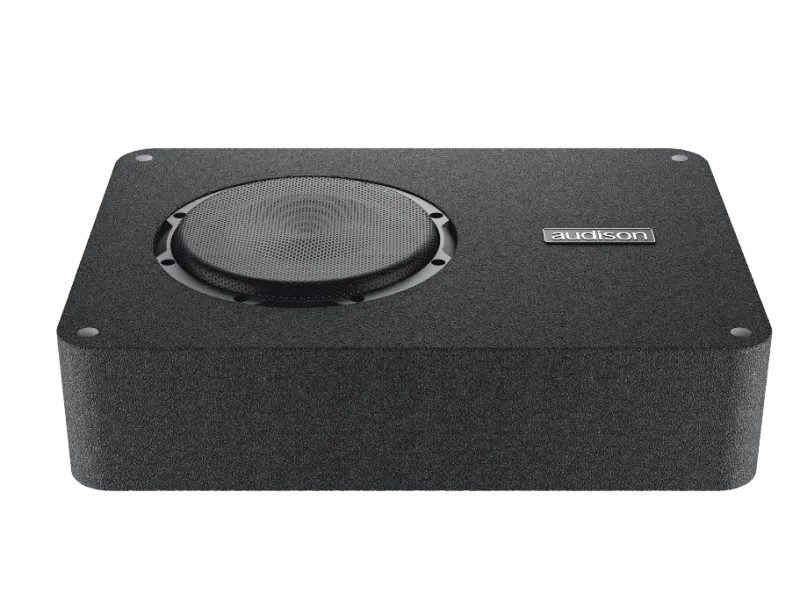

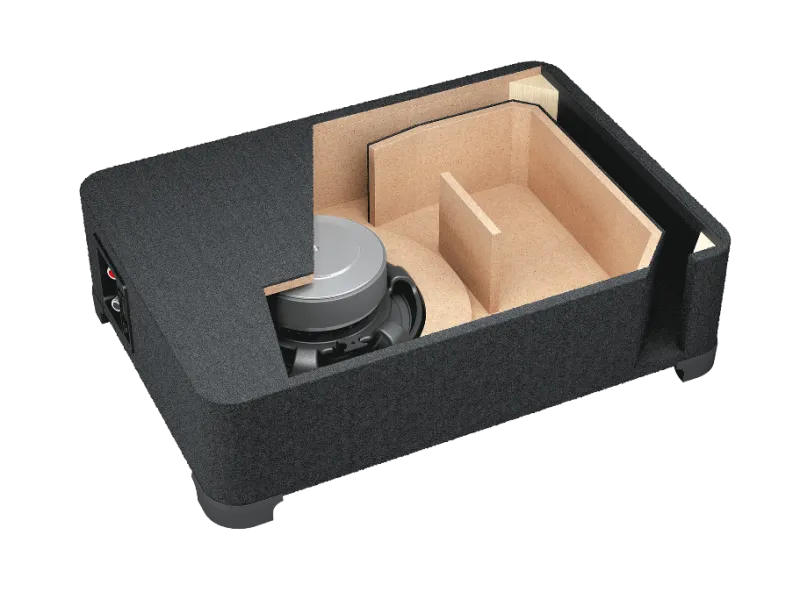

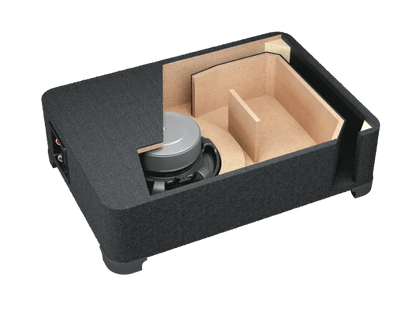

- Ultra-low profile (5.16 in. / 131 mm) box with slot-ported design perfectly
tuned to fully exploit the APS 8 R driver. - 2S² (2 Sides/2 Sounds) design provides the ability to choose between
Down-Firing mounting to increase the low-frequency extension and
Up-Firing install to obtain more punch and definition. - Levelling feet with velcro inserts included for a secure grip with the
carpet while maintaining easy removal. - SSP (Sub Smart Plug) features both traditional push contacts and a
Plug-&-Play terminal block to easily configure the impedance as required
and provides a quick release. - Rounded corners allow easy positioning in the trunk and act as
reinforcement to reduce enclosure resonance. - Special designed cone-dustcap-basket geometry which guarantees a
long linear excursion capability (9 mm, one-way). - Massive driver motor assembly, optimized with FEM (Finite Element
Modeling) for perfect control under high excursion conditions. - Water-repellent pressed paper 8 in. cone, featuring a profile developed
with FEM and optimized with the Klippel Scan Vibrometer. - Specifically developed to be combined with either the AP8.9 bit (2 CH bridged)
or AP4.9 bit /AP4 D (2 CH bridged) amplifiers taking advantage of the bass
boost feature and integrated parametric equalizer of the built-in DSP. - Sturdy metal grid included for a total protection of the subwoofer driver.
Technical Specs
| Nominal diameter | 200 mm |
| Impedance | 4 Ohm |
| Power Handling - Peak | 500 W |
| Power Handling - Continuous | 250 W |
| Magnet Material | HIGH DENSITY FLUX FERRITE |
| Cone Material | COTTON-FIBRE PRESSES PAPER CONE |
Dimensions
 |
|
| Dimension A | 470 mm |
| Dimension B | 334 mm |
| Dimension C | 109 mm |
| Dimension D | 131 mm |
| Dimension C1 | 131 mm |
