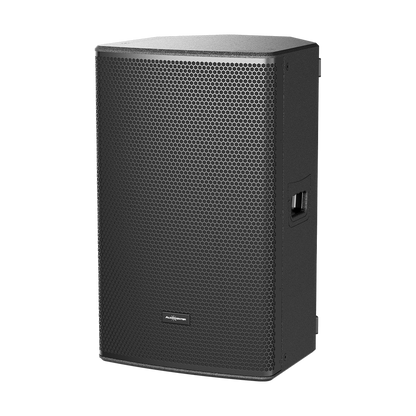

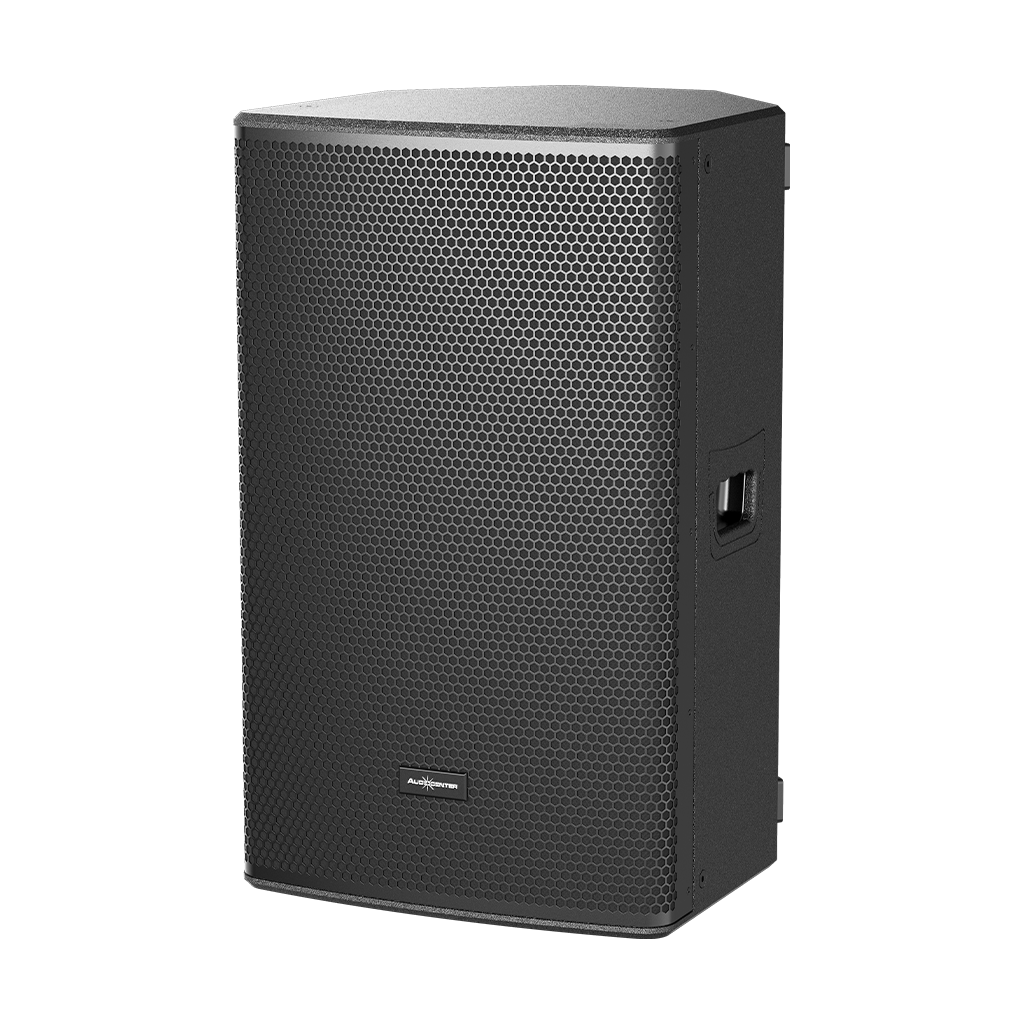

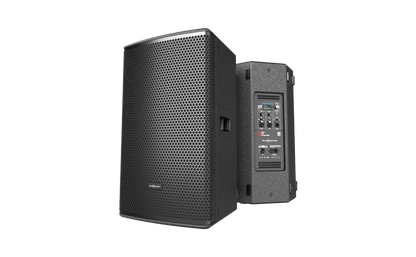

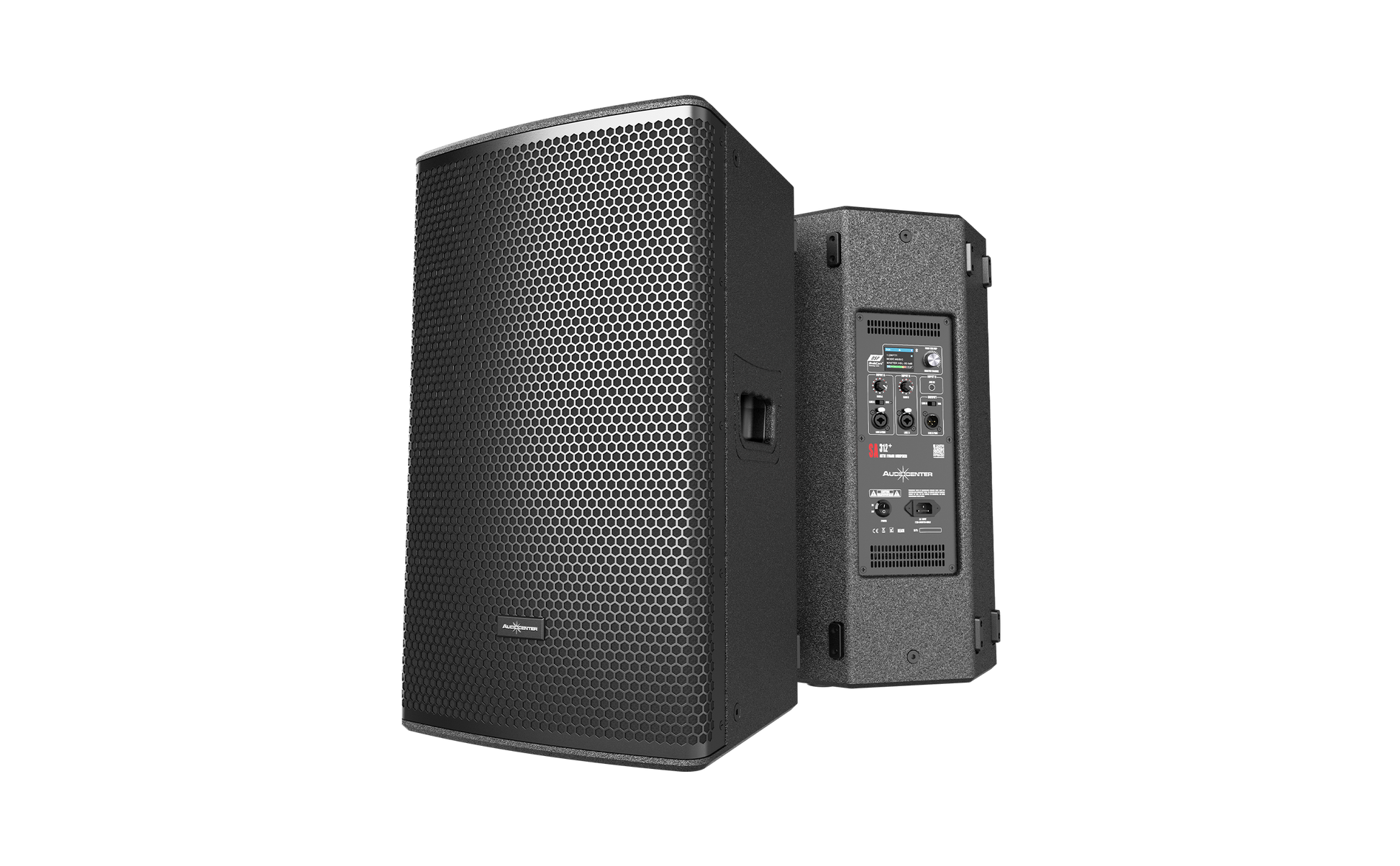

AUDIOCENTER SA312+ Active DSP-controlled full range loudspeaker 12"
AUDIOCENTER SA312+ Active DSP-controlled full range loudspeaker 12"
Couldn't load pickup availability
The SA312+ speaker is a versatile all-in-one solution, supporting both XLR and 6.35mm jack inputs for microphone and line-level balanced signals, as well as featuring an AUX input and wireless Bluetooth connectivity for easy hookup with various portable audio sources.
Specifications
|
Type |
Active DSP-controlled full range loudspeaker |
|
Frequency Response(-10dB) |
46Hz-20kHz |
|
Horizontal Coverage |
80° |
|
Vertical Coverage |
50° |
|
Maximum Calculated SPL/1M (Continuous/Peak) |
126dB/132dB |
|

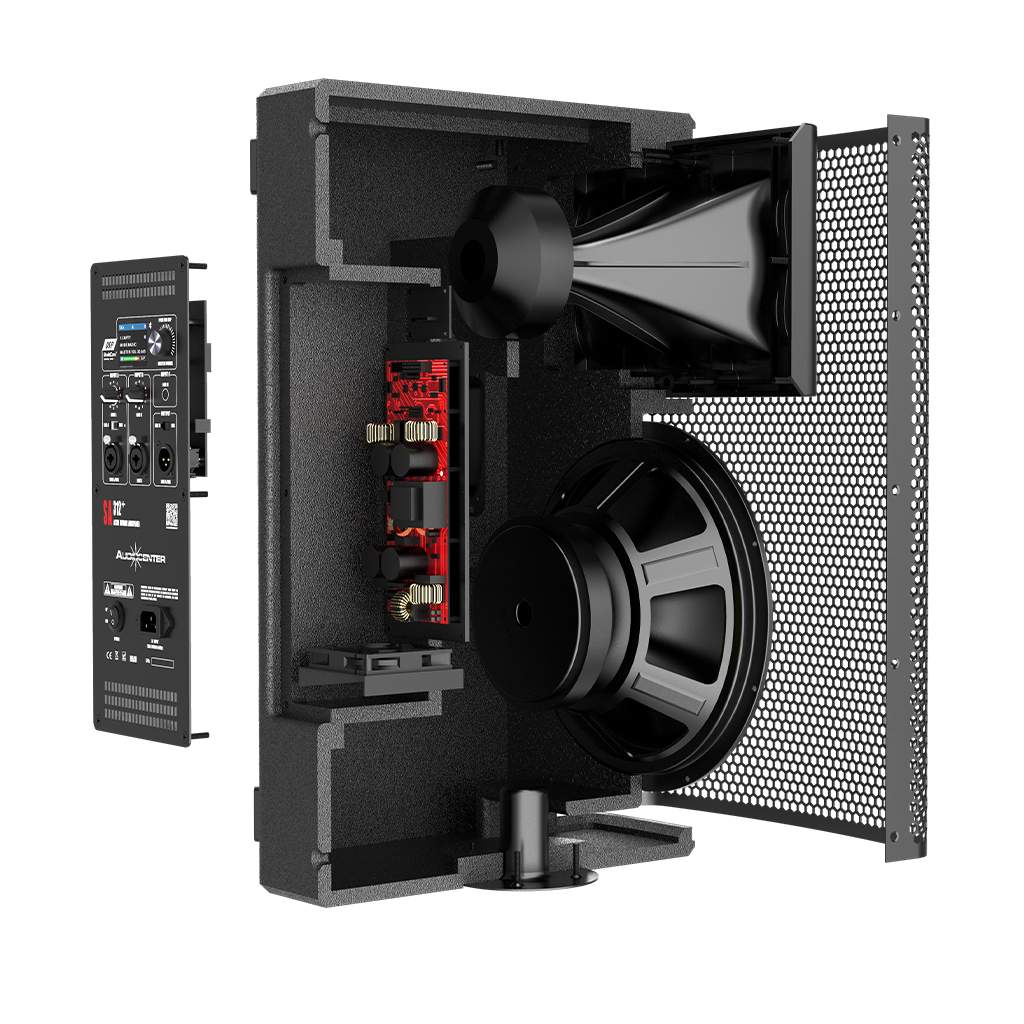

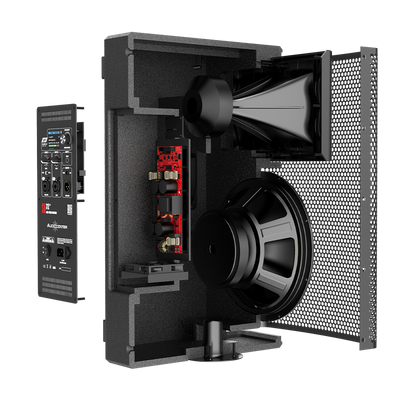

HF Driver |
Customized driver, 1.75” voice coil and 1.0”exit |
|
LF Driver |
Customized 12” driver, 2.5” voice coil |
|
DSP |
|
|
Processor |
48kHz signal sampling frequency |
|
Presets |
MUSIC，FLAT，SPEECH，W/SUB |
|
AMPLIFIER |
|
|
Amplifier Circuitry |
Class D |
|
Power (RMS standards) |
1000W |
|
Peak Power |
2000W |
|
Frequency Response(1W 8Ω 2ch) |
20Hz-20kHz(±0.5dB) |
|
Intermodulation Distortion |
＜0.05% |
|
Total Harmonic Distortion |
＜0.05% |
|
Cooling System |
Air convection |
|
Protection |
DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection |
|

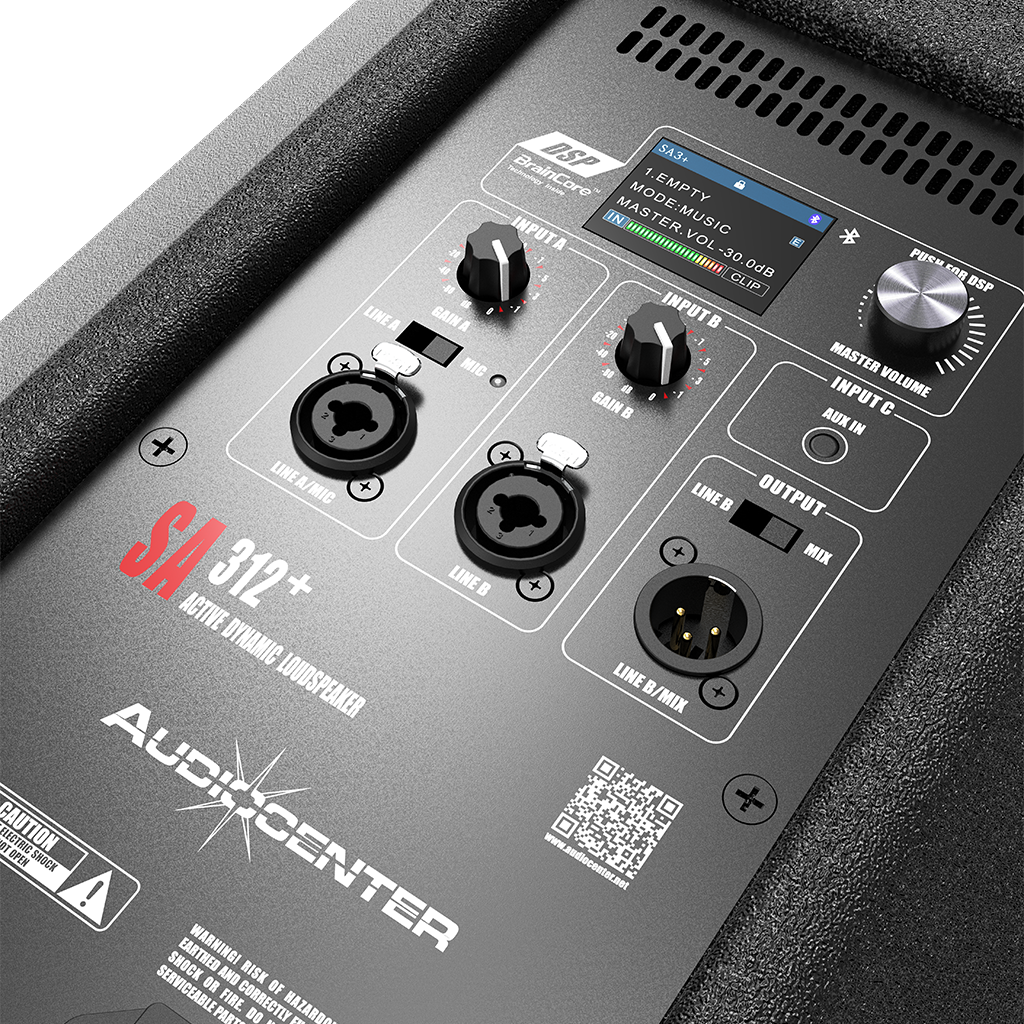

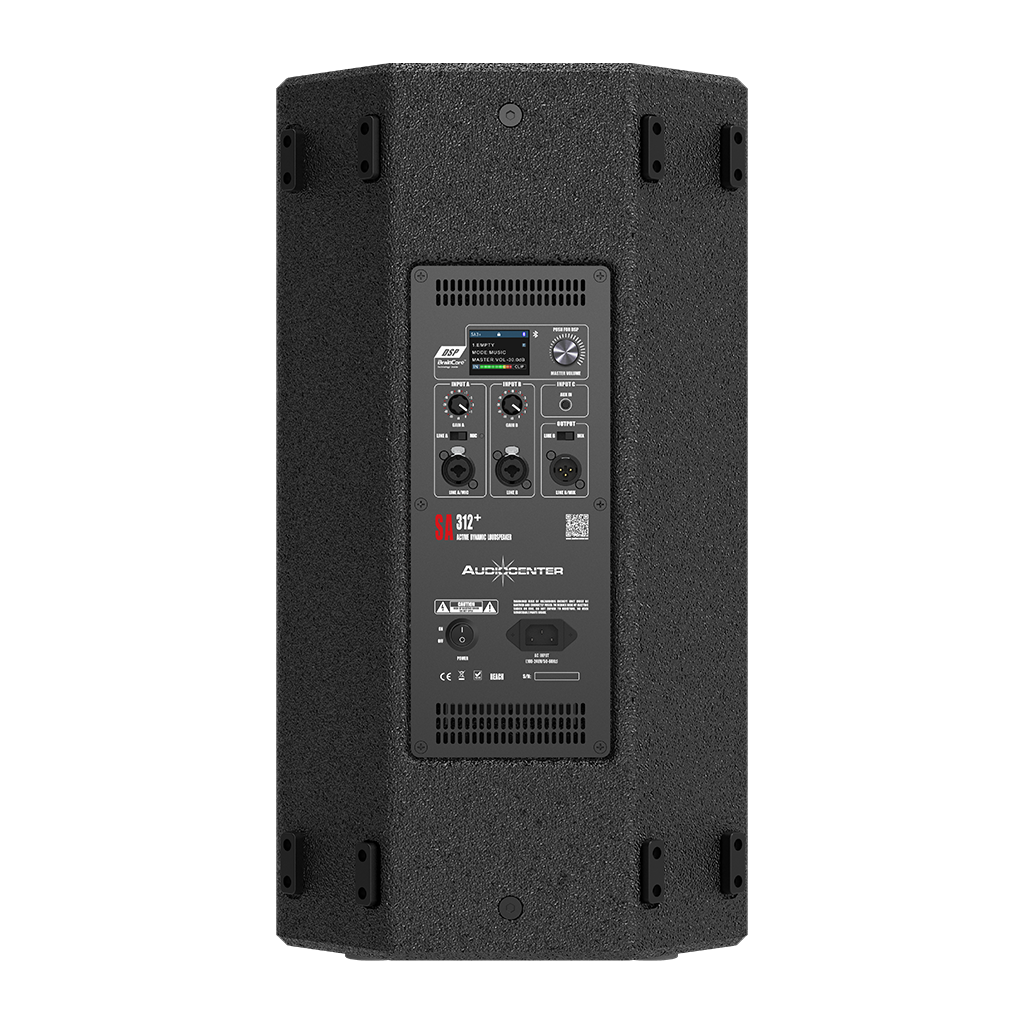

Signal Input |
Female XLR(Mono jack 6.35), 3.5mm Jack Input, Wireless bluetooth |
|
Signal Output |
Male XLR Balanced Output |
|
Power Input |
IEC power connector |
|
Working Voltage |
100-240V~ (±10%,50/60Hz） |
|
Power consumption (1/8 output power) |
55W |
|
CABINET |
|
|
Cabinet Material |
CNC machined plywood |
|
Coating |
Durable Polyurea Coating |
|
Cabinet Color |
Black is the default color. Contact Audiocenter for customization |
|
Grille |
Iron mesh |
|
Handles |
2 side |
|
Monitor Angle |
Symmetrical 45° monitoring Angle |
|
Hanging Hardwares |
M8 screw |
|
Pole Mount |
Base hole Φ35 mm |
|
Speaker Dimension (W×H×D) |
363x626x375 mm |
|
Carton Dimension (W×H×D) |
435×693×448 mm |
|
Net Weight |
18.0 kg |
|
Shipping Weight |
20.0 kg |
