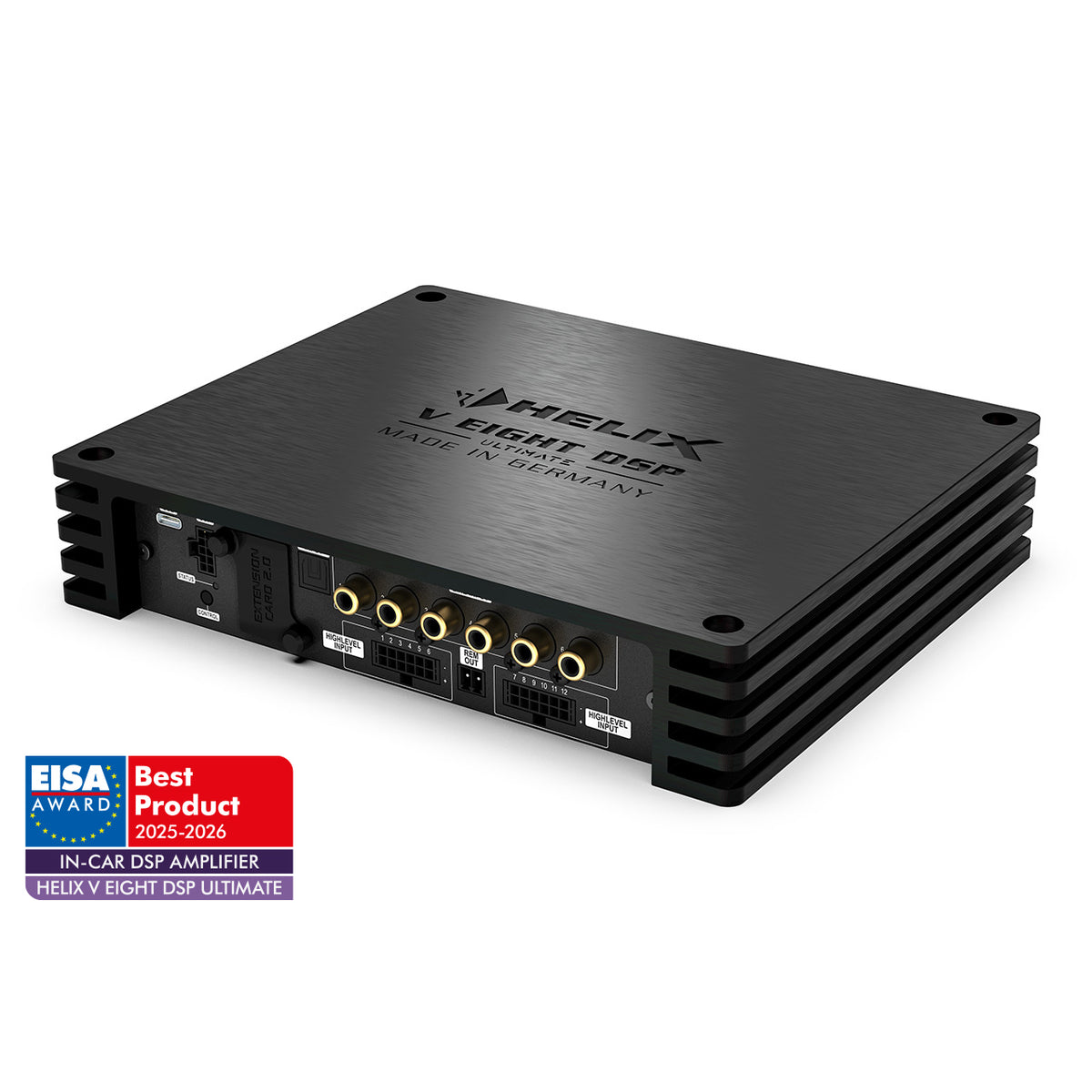

HELIX NEXT V EIGHT DSP ULTIMATE 8 CHANNEL HIGH POWER AMPLIFIER WITH INTEGRATED 14 CHANNEL DSP

The HELIX NEXT V EIGHT DSP ULTIMATE is the latest evolution of HELIX’s all in one DSP amplifier platform, designed for premium factory audio upgrades and high performance aftermarket systems.

It combines 8 amplified channels, 14 DSP channels, 12 high level inputs and 6 processed RCA outputs in one compact unit.

🟡 8 CHANNEL AMPLIFIER

🟡 14 CHANNEL DSP

🟡 12 HIGH LEVEL INPUTS

🟡 UP TO 270W RMS PER CHANNEL

🟡 USB PERFECTSTREAM

🟡 DSP PC TOOL 6

MORE POWER FOR DEMANDING SYSTEMS

The NEXT V EIGHT DSP ULTIMATE uses HELIX Class HD amplifier technology with substantially increased output compared with the previous generation.

Power Output

8 x 110W RMS at 4 Ohms

or

4 x 110W RMS at 4 Ohms plus 4 x 220W RMS at 2 Ohms

Maximum output can reach up to 270W RMS per channel at 2 Ohms on Channels 5 to 8.

🟡 SERIOUS POWER WITHOUT NEEDING MULTIPLE AMPLIFIERS

14 CHANNEL DSP

The integrated 14 channel DSP gives you extensive control over complex audio systems.

You can precisely adjust:

Crossovers

Equalisation

Time alignment

Speaker levels

Signal routing

Subwoofer integration

Factory signal correction

The additional 6 processed RCA outputs also allow extra amplifiers to be added while keeping everything controlled through the HELIX DSP platform.

BUILT FOR MODERN FACTORY AUDIO

Modern vehicles can have factory amplifiers, multiple speaker channels and complicated signal processing.

The V EIGHT DSP ULTIMATE provides 12 high level inputs capable of accepting up to 32V RMS, along with HELIX ADEP.3 technology for better integration with modern factory radios and amplifiers.

🟡 IDEAL FOR PREMIUM OEM AUDIO UPGRADES

This makes it suitable for:

Factory amplified vehicles

Premium OEM sound systems

Active multi speaker systems

Vehicles where the factory radio must remain

High end sound quality builds

USB PERFECTSTREAM

One of the biggest upgrades is USB PerfectStream.

It provides direct lossless high resolution audio streaming at up to 192 kHz / 32 Bit from compatible smartphones, tablets or computers directly into the DSP.

The same USB C connection can also be used for DSP configuration and advanced signal analysis.

🟡 LOSSLESS HIGH RES AUDIO DIRECTLY INTO THE DSP

DSP PC TOOL 6

The NEXT V EIGHT DSP ULTIMATE is designed around the latest HELIX DSP PC Tool 6 software.

This gives professional installers detailed control over the complete system while introducing improved tuning tools and a more refined interface.

GOOD HARDWARE IS ONLY HALF THE SYSTEM. PROPER DSP TUNING UNLOCKS THE RESULT.

VIRTUAL CHANNEL PROCESSING

HELIX Virtual Channel Processing provides advanced control when factory signals need to be combined, corrected and routed to multiple aftermarket speakers.

This is particularly useful for complex active systems and premium OEM integrations.

AISA INPUT SIGNAL ANALYSIS

The integrated Advanced Input Signal Analyzer helps installers analyse factory signals before tuning the new system.

This makes it easier to identify and correct factory equalisation and other signal processing before it reaches your aftermarket speakers.

TUNEEQ

HELIX TuneEQ can assist with automatic frequency response correction using compatible measurement equipment.

This helps make professional tuning more efficient while still allowing detailed manual control.

REALCENTER AND BASS PROCESSING

Advanced HELIX DSP features include:

RealCenter

Helps create a stable and natural centre image for both driver and passenger.

Augmented Bass Processing

Includes Dynamic Bass Enhancement and SubXpander for advanced low frequency control.

🟡 DESIGNED FOR SOUND QUALITY, NOT JUST POWER

EXTENSION CARD 2.0

The new Extension Card 2.0 slot gives the amplifier additional expansion capability.

Compatible future modules can add functions such as:

Bluetooth HD Audio Streaming

Additional analogue inputs

Future signal sources

This helps make the V EIGHT DSP ULTIMATE a more flexible platform for future system upgrades.

KEY FEATURES

🟡 8 Channel Class HD Amplifier

🟡 14 Channel DSP

🟡 8 x 110W RMS at 4 Ohms

🟡 4 x 220W RMS at 2 Ohms

🟡 Up to 270W RMS Maximum Output Per Channel

🟡 12 High Level Inputs

🟡 6 RCA Inputs

🟡 6 Processed RCA Outputs

🟡 64 Bit DSP

🟡 USB PerfectStream

🟡 DSP PC Tool 6

🟡 ADEP.3 OEM Integration

🟡 AISA Signal Analysis

🟡 Virtual Channel Processing

🟡 TuneEQ

🟡 RealCenter

🟡 Augmented Bass Processing

🟡 Extension Card 2.0

🟡 Optical SPDIF Input

🟡 Smart Control Port

TECHNICAL SPECIFICATIONS

Amplifier Channels: 8

DSP Channels: 14

Power at 4 Ohms: 8 x 110W RMS

Power at 2 Ohms: Channels 5 to 8, 4 x 220W RMS

Maximum Output: Up to 270W RMS per channel

Amplifier Technology: Class HD

High Level Inputs: 12

RCA Inputs: 6

Optical Input: SPDIF

RCA Outputs: 6

RCA Output Voltage: 3V

DSP Resolution: 64 Bit

DSP Processing Power: 1.2 Billion MAC Operations Per Second

Sampling Rate: 48 kHz

Converters: BurrBrown 24 Bit

Frequency Response: 15 Hz to 22,000 Hz

Operating Voltage: 10.5V to 18V

Fuse: 2 x 40A

Dimensions: 44 x 220 x 180 mm

WHAT IS INCLUDED

1 x HELIX NEXT V EIGHT DSP ULTIMATE

1 x USB C Cable with USB A Adaptor

2 x Allen Keys

4 x Connection Cables

Mounting Hardware

Instruction Manual

PERFECT FOR

Premium factory sound upgrades

High end active systems

OEM amplified vehicles

Multi speaker systems

Sound quality builds

Professional DSP tuned installations
