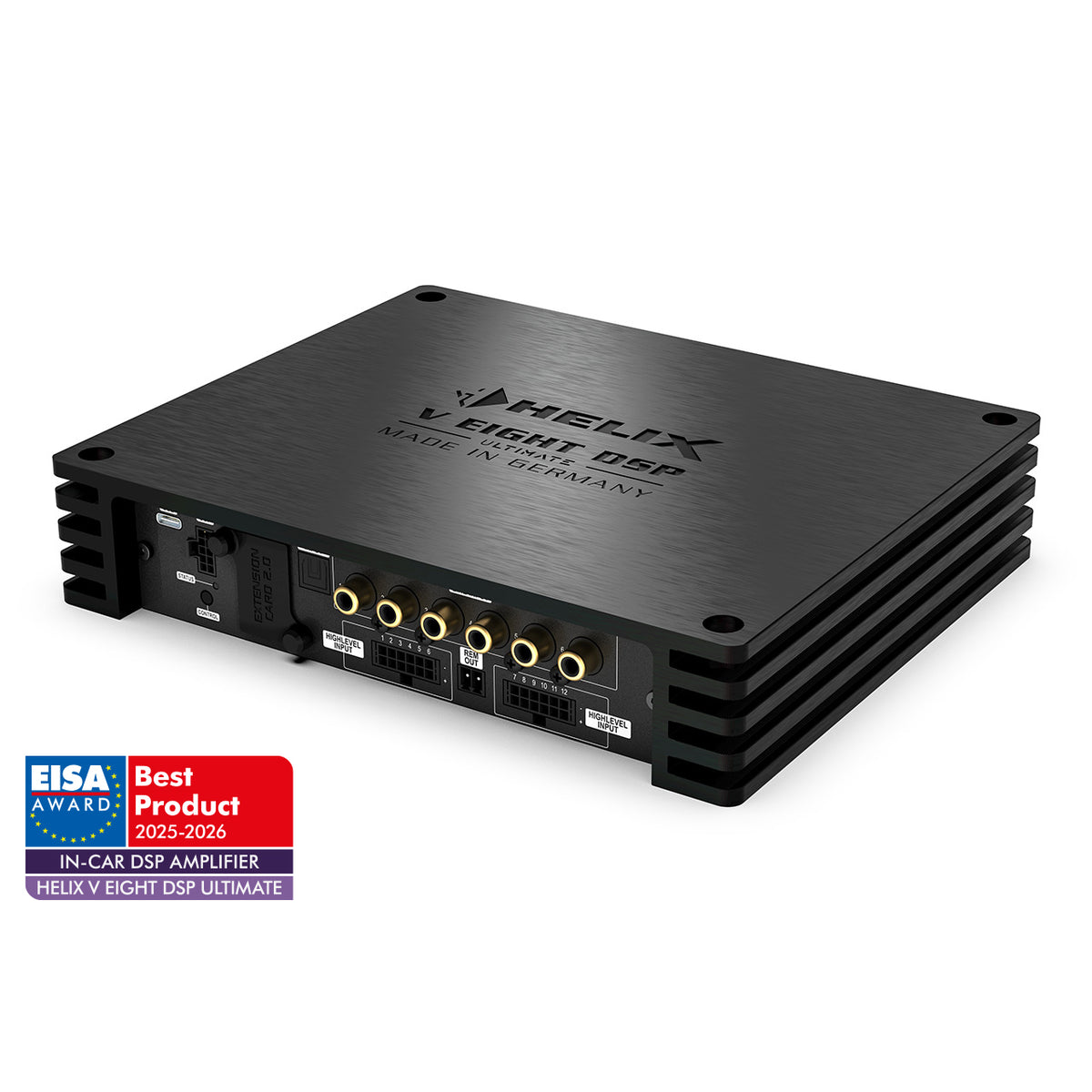

HELIX NEXT V EIGHT DSP ULTIMATE 8 CHANNEL AMPLIFIER WITH INTEGRATED 14 CHANNEL DSP

HELIX NEXT V EIGHT DSP ULTIMATE is a premium all in one amplifier and DSP for modern factory audio upgrades and high performance aftermarket systems.

It combines 8 powered channels, 14 DSP channels, 12 high level inputs and 6 processed RCA outputs in one compact unit.

🟡 8 CHANNEL AMPLIFIER

🟡 14 CHANNEL DSP

🟡 12 HIGH LEVEL INPUTS

🟡 UP TO 270W RMS PER CHANNEL

🟡 USB PERFECTSTREAM

🟡 DSP PC TOOL 6

POWERFUL CLASS HD AMPLIFICATION

The V EIGHT DSP ULTIMATE uses HELIX Class HD amplifier technology for strong output, high efficiency and excellent control.

Power Output

8 x 110W RMS at 4 Ohms

4 x 220W RMS at 2 Ohms on Channels 5 to 8

Up to 270W RMS per channel at 2 Ohms

This gives you enough power for serious component speakers, midbass drivers and complex active systems.

🟡 SERIOUS POWER WITHOUT FILLING THE CAR WITH MULTIPLE AMPLIFIERS

14 CHANNEL DSP CONTROL

The integrated 14 channel DSP gives the installer precise control over the complete system.

You can tune:

Crossovers

Equalisation

Time alignment

Speaker levels

Signal routing

Subwoofer integration

Factory signal correction

The additional 6 processed RCA outputs also make it easy to add extra amplifiers while keeping the whole system under HELIX DSP control.

BUILT FOR FACTORY AUDIO UPGRADES

Modern vehicles often use factory amplifiers and heavily processed speaker signals.

The V EIGHT DSP ULTIMATE provides 12 high level inputs with up to 32V RMS capability plus ADEP.3 for advanced OEM integration.

This makes it ideal for:

Premium factory sound systems

Factory amplified vehicles

Active speaker systems

Vehicles keeping the original radio

Luxury vehicle audio upgrades

🟡 IDEAL FOR COMPLEX OEM AUDIO SYSTEMS

USB PERFECTSTREAM

USB PerfectStream allows lossless high resolution audio streaming up to 192 kHz / 32 Bit directly into the DSP from compatible phones, tablets and computers.

The same USB connection can also be used for system tuning and advanced signal analysis.

🟡 HIGH RES AUDIO DIRECTLY INTO THE DSP

DSP PC TOOL 6

The V EIGHT DSP ULTIMATE is designed for the latest HELIX DSP PC Tool 6.

This gives professional installers detailed control over system tuning, routing and advanced DSP functions.

GOOD EQUIPMENT GETS YOU PART OF THE WAY. PROPER DSP TUNING GETS YOU THE RESULT.

ADVANCED DSP FEATURES

The V EIGHT DSP ULTIMATE includes:

TuneEQ

Automated frequency response correction.

RealCenter

Helps create a more stable centre image.

Augmented Bass Processing

Advanced bass enhancement and SubXpander processing.

AISA

Advanced Input Signal Analyzer for analysing and correcting factory audio signals.

Virtual Channel Processing

Provides flexible routing for complex active systems.

EXTENSION CARD 2.0

The new Extension Card 2.0 slot allows compatible future upgrades such as:

Bluetooth HD Audio

Additional analogue inputs

Future signal sources

This makes the amplifier easier to expand as your system changes.

KEY FEATURES

🟡 8 Channel Class HD Amplifier

🟡 14 Channel DSP

🟡 8 x 110W RMS at 4 Ohms

🟡 4 x 220W RMS at 2 Ohms

🟡 Up to 270W RMS Per Channel

🟡 12 High Level Inputs

🟡 6 RCA Inputs

🟡 6 Processed RCA Outputs

🟡 64 Bit DSP

🟡 USB PerfectStream

🟡 DSP PC Tool 6

🟡 ADEP.3 OEM Integration

🟡 AISA

🟡 TuneEQ

🟡 RealCenter

🟡 Virtual Channel Processing

🟡 Extension Card 2.0

TECHNICAL SPECIFICATIONS

Amplifier Channels: 8

DSP Channels: 14

Power at 4 Ohms: 8 x 110W RMS

Power at 2 Ohms: 4 x 220W RMS

Maximum Output: Up to 270W RMS per channel

Amplifier Technology: Class HD

High Level Inputs: 12

RCA Inputs: 6

RCA Outputs: 6

Optical Input: SPDIF

RCA Output Voltage: 3V

DSP Resolution: 64 Bit

DSP Processing Power: 1.2 Billion MAC Operations Per Second

Sampling Rate: 48 kHz

Frequency Response: 15 Hz to 22,000 Hz

Operating Voltage: 10.5V to 18V

Fuse: 2 x 40A

Dimensions: 44 x 220 x 180 mm

WHAT IS INCLUDED

1 x HELIX NEXT V EIGHT DSP ULTIMATE

1 x USB C Cable with USB A Adaptor

2 x Allen Keys

4 x Connection Cables

Mounting Hardware

Instruction Manual
