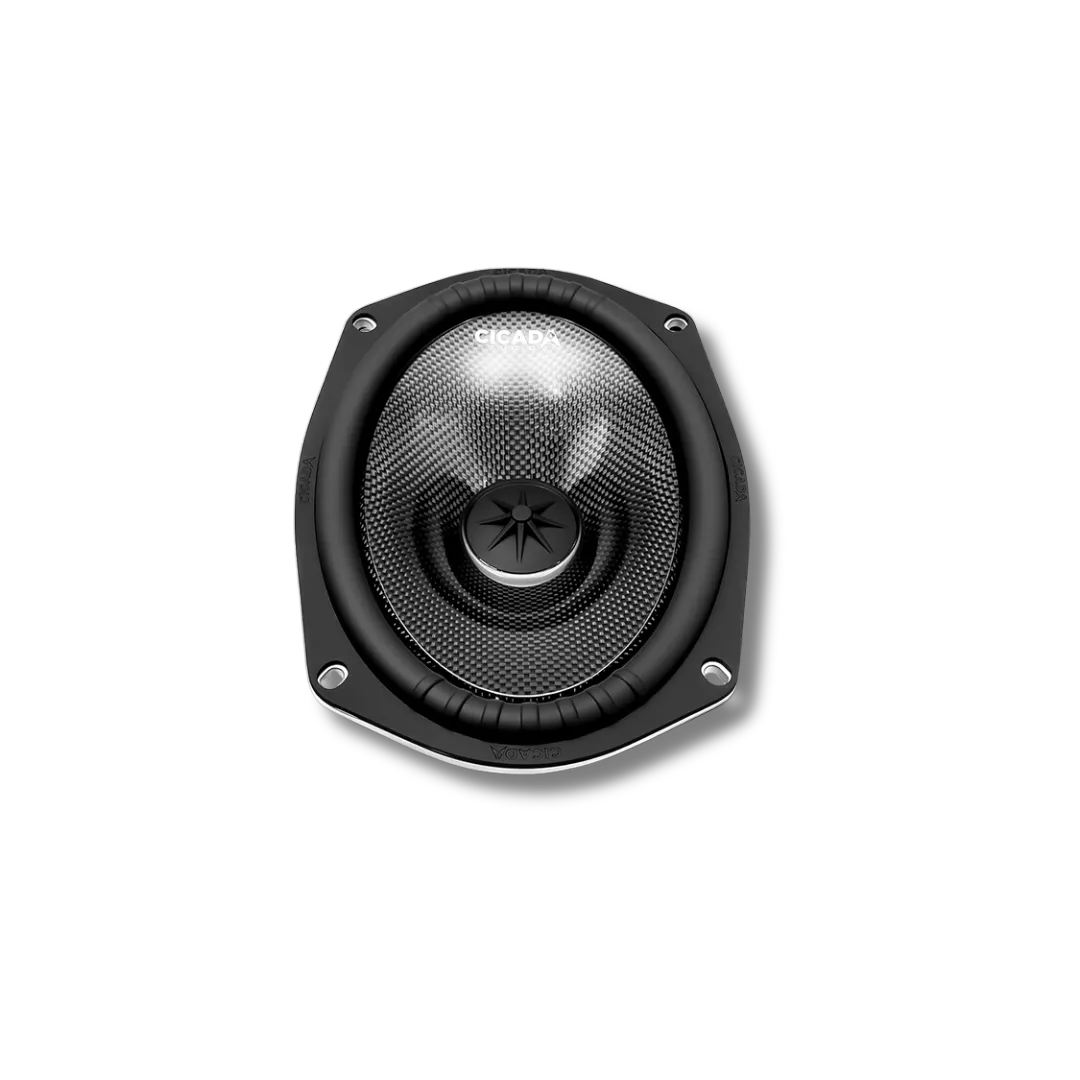

Cicada CMB69.4 6 X 9-inch Pro Mid-Bass – 2Ω – PAIR

6X9 HIGH PERFORMANCE MID BASS SPEAKER 150W RMS

STRONG MID BASS. HIGH EFFICIENCY. BUILT FOR DEMANDING ALL WEATHER INSTALLATIONS.

Designed for systems where clarity, impact and durability matter, this 6X9 high performance mid bass speaker delivers up to 150W RMS power handling with a wide 45 Hz to 1 kHz operating range.

The combination of a Carbon Matrix Composite cone, 1.5 inch Black Coat OFC copper voice coil and powerful Y35 ceramic magnet gives the speaker the strength and control required for high output applications.

Its Rain or Shine All Weather Performance design also makes it ideal for demanding installations where exposure to changing conditions is a concern.

BUILT FOR STRONG MID BASS

Mid bass is what gives music its punch, body and impact.

The 6X9 cone provides more surface area than a conventional round speaker while the Carbon Matrix Composite construction keeps the moving assembly lightweight and rigid.

The result is designed to deliver:

• Strong kick drum impact

• Fuller lower vocals

• More authority through the mid bass region

• High output without relying on a small factory speaker

• Better performance in demanding audio systems

THIS IS THE PART OF YOUR SYSTEM THAT MAKES THE MUSIC HIT.

150W RMS POWER HANDLING

Rated at 150 watts RMS and 300 watts maximum power, this speaker is designed to work with serious amplification.

A larger 1.5 inch voice coil provides increased thermal capability, helping the speaker manage heat when played at higher output levels.

Matched with the correct amplifier and crossover settings, it gives you the headroom required for a powerful and controlled system.

CARBON MATRIX COMPOSITE CONE

The speaker uses a Carbon Matrix Composite CMC cone engineered to be:

• Lightweight

• Strong

• Heat resistant

• Efficient

A lightweight cone can respond quickly to musical information, while the rigid construction helps maintain control when output increases.

That means cleaner response and stronger performance when you turn the system up.

BLACK COAT OFC COPPER VOICE COIL

At the heart of the speaker is a 1.5 inch Black Coat Oxygen Free Copper voice coil.

The OFC copper construction is designed to provide:

• High conductivity

• Low electrical resistance

• Strong thermal performance

• Reliable operation under demanding use

Better heat management becomes increasingly important when a speaker is being driven hard for extended periods.

RAIN OR SHINE ALL WEATHER PERFORMANCE

This speaker is designed for all weather performance, making it suited to applications where conventional car audio speakers may not be the ideal choice.

The durable construction makes it particularly useful for:

• Motorcycle audio systems

• Open vehicle installations

• Custom outdoor audio applications

• Other demanding environments

For installations exposed directly to water or extreme conditions, always ensure the complete installation and enclosure are designed appropriately.

RIBBED SANTOPRENE HIGH ROLL SURROUND

The ribbed Santoprene high roll surround allows the cone to move while helping maintain control of the moving assembly.

This contributes to the speaker's ability to produce strong mid bass while maintaining durability during demanding playback.

DIE CAST ALUMINIUM BASKET

A powerful speaker needs a rigid foundation.

The custom tooled die cast aluminium basket provides structural strength while helping keep the motor and cone assembly properly aligned.

Integrated Vortex Flow Venting is designed to improve airflow and heat dissipation around the speaker.

BETTER HEAT CONTROL HELPS SUPPORT RELIABLE HIGH OUTPUT PERFORMANCE.

POWERFUL Y35 CERAMIC MAGNET

The Y35 ceramic magnet provides the motor strength required to control the 6X9 cone during high output playback.

Combined with the 1.5 inch voice coil and rigid cone structure, it forms a strong motor system designed for demanding mid bass reproduction.

IDEAL FOR HIGH OUTPUT AUDIO SYSTEMS

This speaker is an excellent choice for customers wanting:

• Strong 6X9 mid bass

• High output performance

• 150W RMS power handling

• 2 Ohm impedance

• All weather construction

• A strong upgrade for motorcycle audio

• A speaker designed to work with external amplification

• More impact than a basic factory speaker

2 OHM IMPEDANCE

The speaker uses a 2 Ohm impedance, allowing compatible amplifiers to deliver strong power output.

Always check that your amplifier is stable at the required impedance and that the speaker is matched correctly to the rest of the system.

THE RIGHT AMPLIFIER AND CROSSOVER SETTINGS ARE JUST AS IMPORTANT AS THE SPEAKER ITSELF.

TECHNICAL SPECIFICATIONS

Speaker Type: 6X9 High Performance Mid Bass

Impedance: 2 Ohm

Power Handling: 150W RMS

Maximum Power: 300W

Voice Coil: 1.5 Inch / 38 mm

Cone Material: Carbon Matrix Composite CMC

Surround: Ribbed Santoprene High Roll

Magnet Type: Y35 Ceramic

Sensitivity: 88 dB at 1W / 1M

Frequency Response: 45 Hz to 1 kHz +/- 3 dB

Mounting Depth: 3.9 Inches / 99 mm

Mounting Diameter: 5.7 Inches x 8.5 Inches / 145 mm x 216 mm

KEY FEATURES

• Rain or Shine All Weather Performance design

• Carbon Matrix Composite CMC cone

• Black Coat OFC copper voice coil

• 1.5 inch high performance voice coil

• Ribbed Santoprene high roll surround

• Custom die cast aluminium basket

• Vortex Flow Venting

• Y35 ceramic magnet

• 150W RMS power handling

• 2 Year Warranty

BUILD THE SYSTEM AROUND THE SPEAKER

A high performance mid bass speaker will only perform as well as the system around it.

For the best result, consider:

• Correct amplifier power

• Proper crossover settings

• DSP tuning

• Quality OFC speaker wiring

• Secure mounting

• Proper acoustic treatment

• Correct polarity and level matching

GOOD EQUIPMENT GETS YOU PART OF THE WAY. PROPER INSTALLATION AND TUNING GETS YOU THE RESULT.

2 YEAR WARRANTY

This speaker is backed by a 2 Year Warranty, giving you additional confidence in your purchase.

NEED HELP MATCHING YOUR AMPLIFIER?

Tell Tunex Audio what bike or vehicle you have, how many speakers you are running and which amplifier you plan to use.

We can help you determine the correct amplifier power, wiring and crossover setup for your system.

STRONG MID BASS. SERIOUS OUTPUT. BUILT TO PERFORM.
